SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

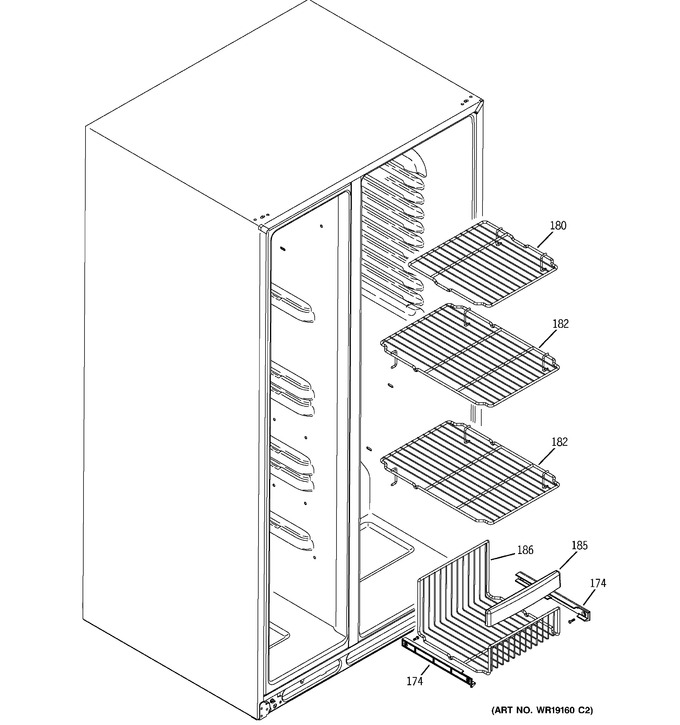

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
174	WR72X10062		Support Slide Basket L		Appelez-nous	-
174	WR72X10061		Support Slide Basket R		Appelez-nous	-
185	WR21X10031		Handle Basket Fz Half		Appelez-nous	-
186	WR21X10029		Basket Wire Slideout Fz		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
