SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

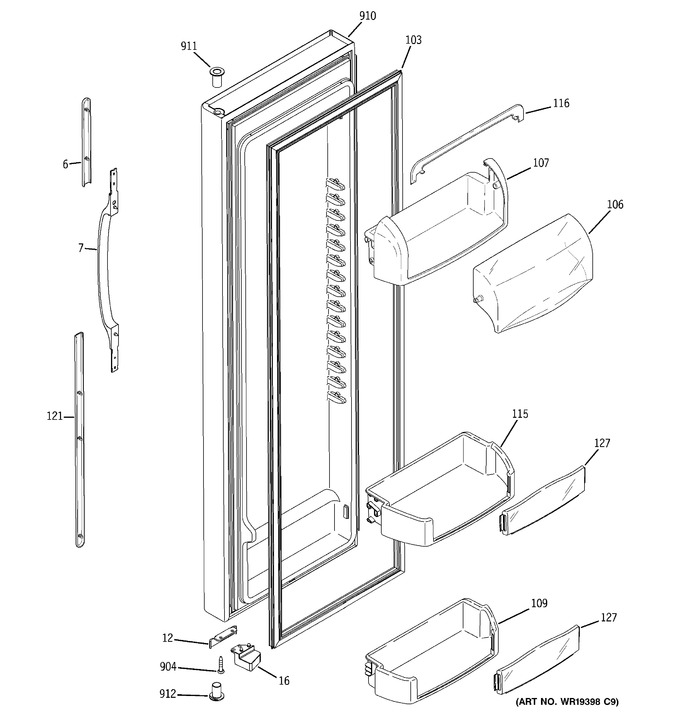

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10164		Tail Handle Sxs Black		Appelez-nous	-
7	WR12X10434		Handle Sxs Black		Appelez-nous	-
12	WR01A00225		Stop Door Black   (Replaces: WR02X10814)				$ 12.40
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
103	WR24X10157		Gasket Door Ff Bk**		Appelez-nous	-
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10605)				$ 38.81
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10607)			Immediately	$ 65.72
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
121	WR12X10218		Tail Handle Sxs Black		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10289)			Immediately	$ 68.21
904	WR01X10316		Screw Door Stop		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
910	WR78X10426		Door Foam Assy Ff		Appelez-nous	-
911	WR01X10233		Thimble Door Top Black		Appelez-nous	-
912	WR01X10232		Thimble Door Bot Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
