SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

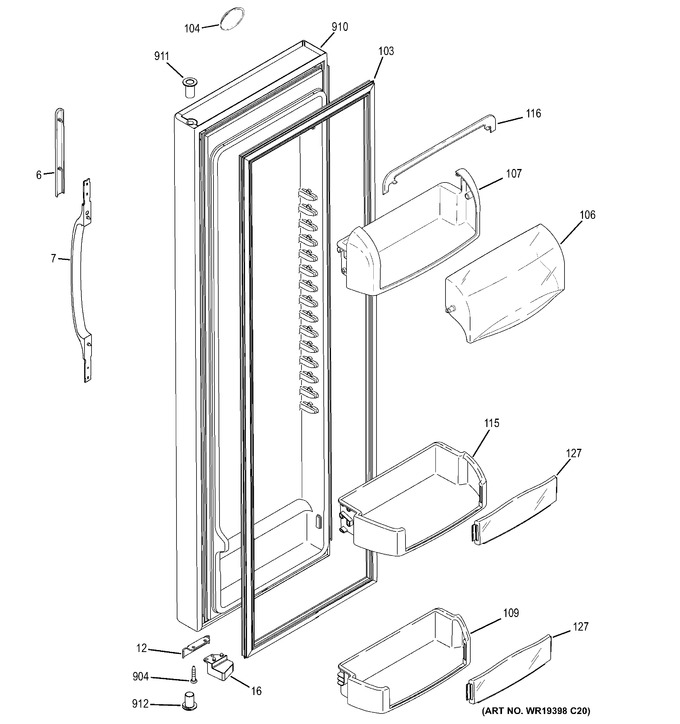

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR01L00575		Cap Handle   (Replaces: WR12X10816)				$ 9.25
6	WR12X10817		Cap Handle		Appelez-nous	-
7	WR12X10812		Handle Sxs Door Bk		Appelez-nous	-
7	WR12X10811		Handle Sxs Door Wh		Appelez-nous	-
12	WR02X10690		Stop Door Wh		Appelez-nous	-
12	WR01A01018		Stop Door Bk   (Replaces: WR02X10782)				$ 39.70
16	WR02X10637		Cam Closure Ff Wh		Appelez-nous	-
16	WR01F01557		Cam Closure Ff Bk   (Replaces: WR02X10779)				$ 36.53
103	WR24X10157		Gasket Door Ff Bk		Appelez-nous	-
103	WR24X10155		Gasket Door Ff Wh		Appelez-nous	-
104	WR04X10143		Nameplate Ge		Appelez-nous	-
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10605)				$ 38.81
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10607)			Immediately	$ 65.72
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10289)			Immediately	$ 68.21
904	WR01A00637		Scr 10-16   (Replaces: WR01X10611)				$ 3.97
910	WR78X11655		Door Foam Asm Ff Bk		Appelez-nous	-
910	WR78X11657		Door Foam Asm Ff Wh		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-
911	WR01X10207		Thimble Door Top Wh		Appelez-nous	-
912	WR01X10232		Thimble Door Btm Bk		Appelez-nous	-
912	WR01X10206		Thimble Door Btm Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
