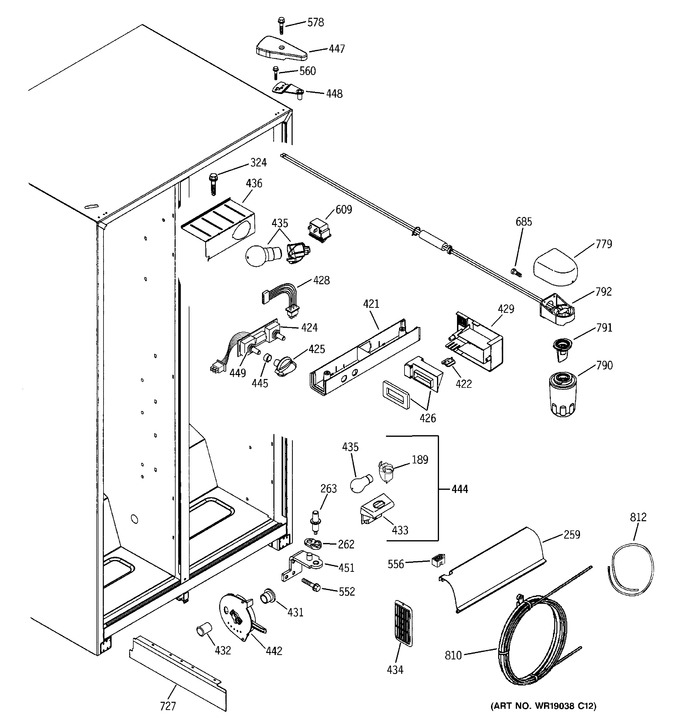

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 189 | WR02X11127 | Socket Lamp |
|
- | |||||
| 259 | WG03L01589 | Shield Light Lower (Replaces: WR17X10725) |
|
$ 52.61 | |||||
| 262 | WR02X11286 | Hinge Cam Riser |
|
- | |||||
| 263 | WR02X10592 | Pin Hinge Btm Adj |
|
- | |||||
| 324 | WG03F01629 | Plug Button Sm Wh (Replaces: WR2X7051) |
|
$ 4.78 | |||||
| 421 | WR17X10716 | Housing Control |
|
- | |||||
| 421 | WR14X10044 | Gasket Control Housing |
|
- | |||||
| 422 | WR02X10546 | Clip Damper Cover |
|
- | |||||
| 424 | WR55X10150 | Brd/harness Asm |
|
- | |||||
| 425 | WR02X10570 | Knob Control |
|
- | |||||
| 426 | WR14X10047 | Gasket Damper |
|
- | |||||
| 426 | WR60X10079 | Damper & Thermister Asm |
|
- | |||||
| 428 | WR23X10245 | Harness Lt & Sw |
|
- | |||||
| 429 | WR02X11250 | Cover Damper |
|
- | |||||
| 431 | WR2X9299 | Cap Mullion Duct |
|
- | |||||
| 432 | WR02X10561 | Duct Mullion |
|
- | |||||
| 433 | WR02X11126 | Housing Lamp Socket |
|
- | |||||
| 434 | WR17X10262 | Grille Air Return |
|
- | |||||
| 435 | 60A | Lamp 60w Appl |
|
- | |||||
| 435 | WG03F01610 | Socket & Terminal (Replaces: WR02X10591) |
|
$ 12.71 | |||||
| 436 | WR02X10578 | Reflector Lamp |
|
- | |||||
| 442 | WR17X10060 | Control Meat Pan Asm |
|
- | |||||
| 444 | WR23X10247 | Housing Light Lwr Asm |
|
- | |||||
| 445 | WR02X10581 | Ring Compression |
|
- | |||||
| 447 | WR02X10614 | Cover Hinge Bq |
|
- | |||||
| 448 | WR13X10122 | Hinge Top Asm Ff |
|
- | |||||
| 449 | WR01X10191 | Nut Special |
|
- | |||||
| 451 | WR13X10154 | Hinge Btm & Pin Asm |
|
- | |||||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .811 S |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 560 | WR01X10195 | Scr 12-24 Ca Hx 7/8 S |
|
- | |||||
| 578 | WZ02X0503 | Scr 8-32 Ma Pa 3/8 S |
|
- | |||||
| 609 | WR23X10162 | Switch Light |
|
- | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 727 | WR17X10723 | Separator Air Hiside |
|
- | |||||
| 779 | WR02X10621 | Cover Water Filter |
|
- | |||||
| 790 | PMMWF | Filter Canister (Replaces: GWF) |
|
Immediately | $ 81.88 | ||||
| 791 | WR02X10577 | Plug Bypass Filter |
|
- | |||||
| 792 | WR17X11028 | Filter Asm And Tube |
|
- | |||||
| 810 | WG03F02059 | Water Storage Coil (Replaces: WR17X11324) |
|
$ 49.33 | |||||
| 812 | WR17X11141 | Tube Plastic |
|
- |
