View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

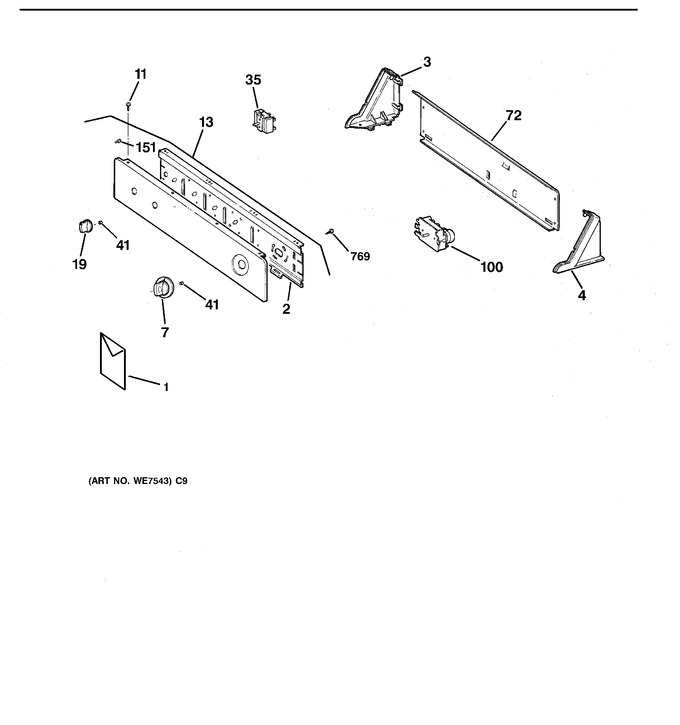

1 - Control Assembly
2 - Cabinet Front, Gas Valve & Burner Asm.
3 - Cabinet
4 - Drum, Duct, Blower & Drive Asm.
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-2813 | Mini Manual |
|
- | |||||
| 1 | 49-9845 | Use Care Manual |
|
- | |||||
| 1 | 31-15282 | Pm Sheet Mini Manual |
|
- | |||||
| 2 | WH46X10019 | Support Switch |
|
- | |||||
| 3 | WH42X2397 | End Cap Lh Wh |
|
- | |||||
| 4 | WH42X2398 | End Cap Rh Wh |
|
- | |||||
| 7 | WW02F00177 | Knob, Timer Wh (Replaces: WE1X1263) |
|
Immediately | $ 17.86 | ||||
| 11 | WH2X1206 | Scr 8-18 Abflt 5/8 Sn Wh |
|
- | |||||
| 13 | WE19X986 | Control Panel Asm |
|
- | |||||
| 19 | WH1X2721 | Knob Clip Asm Wh |
|
$ 9.15 | |||||
| 35 | WG04F03522 | Switch Rotary Start (Replaces: WE4X881) |
|
Immediately | $ 110.98 | ||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 72 | WE20X814 | Panel Back |
|
- | |||||
| 100 | WE4X876 | Timer Dryer |
|
- | |||||
| 151 | WH2X1210 | Scr 8-18 B Ihw 1/2 S N |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 213 | WG03F00846 | Belt Drive (Replaces: WE12X82) |
|
Immediately | $ 52.50 | ||||
| 456 | WE1X617 | Pipe Clamp |
|
- | |||||
| 557 | WE8X31 | Cordset Asm |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 875 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.97 |
