1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet
4 - Drum
SELECT A DIAGRAM
New Model Search:

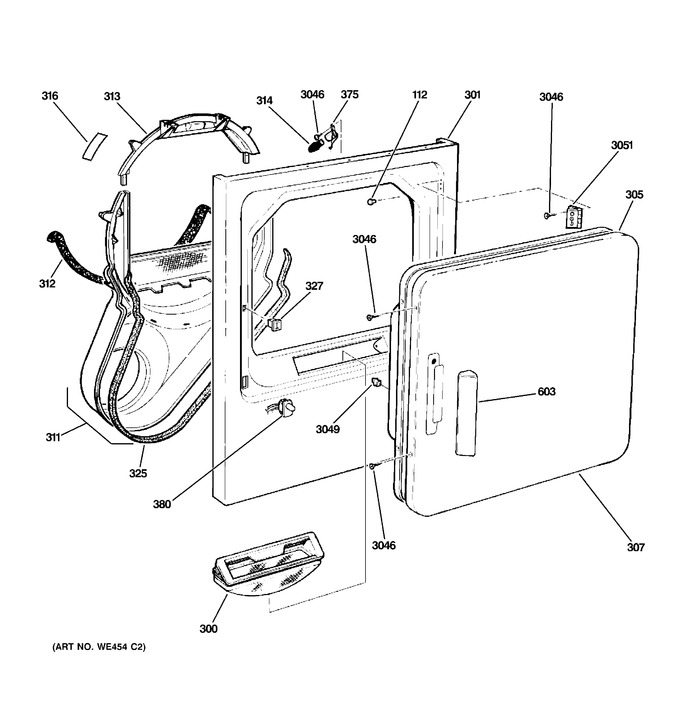

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WE1M567 | Plug Door Rvsbl |
|
- | |||||
| 300 | WG04F00416 | Filter Frame Asm (Replaces: WE18M19) |
|
Immediately | $ 40.73 | ||||
| 301 | WE20M334 | Front Panel Gg |
|
- | |||||
| 305 | WE10M115 | Inner Door & Gskt. Gg |
|
- | |||||
| 307 | WE10M116 | Door Panel Gg |
|
- | |||||
| 311 | WW02F00592 | Air Duct Asm. (Replaces: WE14M92) |
|
Immediately | $ 175.43 | ||||
| 312 | WE9M15 | Felt |
|
- | |||||
| 313 | WW02L00517 | Drum Bearing (Replaces: WE3M26) |
|
Immediately | $ 87.83 | ||||
| 314 | WW03F00458 | Lamp (Replaces: WE4M305) |
|
Immediately | $ 13.37 | ||||
| 316 | WW02A00129 | Slide, Drum - Green (Replaces: WE1M507) |
|
Immediately | $ 15.72 | ||||
| 316 | WE1M504 | Slide Drum - White |
|
Immediately | $ 40.66 | ||||
| 325 | WE01X10217 | Gasket Seal Hsng Exh |
|
- | |||||
| 327 | WE1M536 | Latch |
|
- | |||||
| 375 | WE5M16 | Socket Asm |
|
- | |||||
| 380 | W10169313 | Door Switch (Replaces: WE4M126) |
|
Immediately | $ 31.72 | ||||
| 603 | WE1M591 | Handle Door Gg |
|
- | |||||
| 3046 | WE2M170 | Screw #8 |
|
- | |||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.57 | ||||
| 3051 | WW02L00028 | Hinge (Replaces: WE1M505) |
|
Immediately | $ 8.93 |
