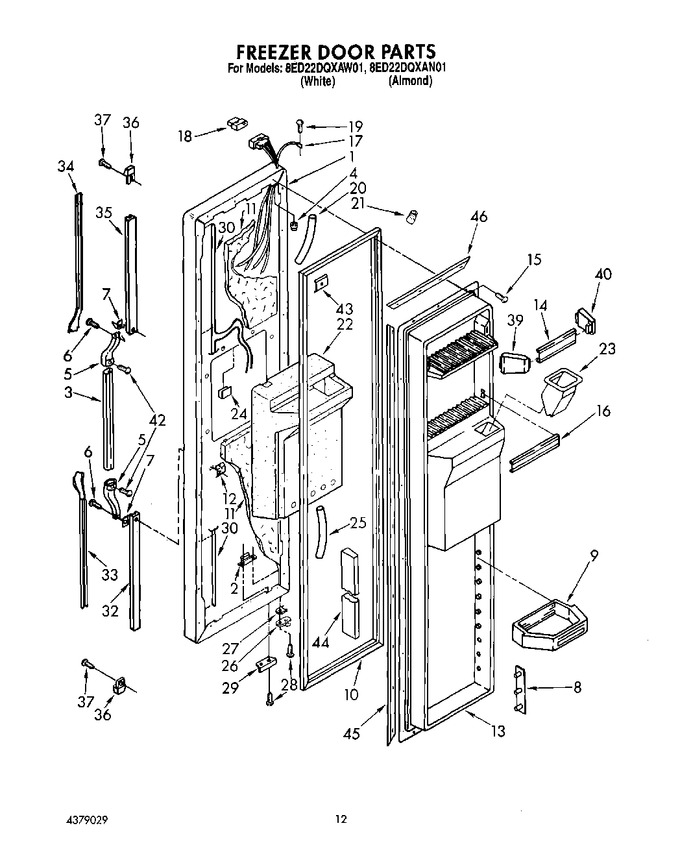

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1115238 | Freezer, Door Panel (almond) |
|
- | |||||
| 1 | 1115235 | Freezer, Door Panel (white (also Order Item 11)) |
|
- | |||||
| 2 | 988402 | Tap Plate |
|
- | |||||
| 3 | 943079 | Handle, Center (almond) |
|
- | |||||
| 3 | 1124713 | Handle, Center (white) |
|
- | |||||
| 4 | 939886 | Seal, Hinge Pin |
|
- | |||||
| 5 | 1119359 | End Cap (2) |
|
- | |||||
| 6 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 7 | 935075 | Shim, End Cap (2) |
|
- | |||||
| 8 | 1116986 | Pin Plate (6) |
|
$ 12.10 | |||||
| 9 | 2149085 | Shelf Bin (3) |
|
- | |||||
| 10 | 2188405A | Door Gasket, Magnetic (Replaces: 1125926) |
|
$ 351.08 | |||||
| 10 | 2188405A | Door Gasket, Magnetic (for Almond Model) (Replaces: 1129267) |
|
$ 351.08 | |||||
| 11 | 876029 | Foam Insulation |
|
- | |||||
| 12 | 941242 | Screw Anchor (2) |
|
- | |||||
| 13 | 2149009 | Panel, Interior Door |
|
- | |||||
| 14 | 2149084 | Trim, Door Shelf |
|
- | |||||
| 15 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 16 | 2149083 | Trim, Door Shelf |
|
- | |||||
| 17 | 2167056 | Harness, Door (includes Item 18) |
|
- | |||||
| 18 | 936183 | Connector, Plug |
|
- | |||||
| 19 | WP488234 | Screw (Replaces: 488889) |
|
$ 6.74 | |||||
| 20 | 1119059 | Tube, Door Wiring |
|
- | |||||
| 21 | 850145 | Wire Connector |
|
- | |||||
| 22 | 2149014 | Insulation, Dispenser |
|
- | |||||
| 23 | 1119036 | Chute, Ice |
|
- | |||||
| 24 | 939143 | Wire Protector |
|
- | |||||
| 25 | 2147080 | Tube, Door Wiring |
|
- | |||||
| 26 | 4318165 | Door Closer, Upper Cam (Replaces: 986758) |
|
Immediately | $ 27.36 | ||||
| 27 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.58 | |||||
| 28 | WP489069 | Screw (Replaces: 488938) |
|
Immediately | $ 7.86 | ||||
| 29 | 988420 | Bracket, Door Stop |
|
- | |||||
| 30 | 2165375 | Heater, Door |
|
- | |||||
| 32 | 1119360 | Retainer, Insert |
|
- | |||||
| 33 | 1119363 | Insert, Handle (almond) |
|
- | |||||
| 33 | 1119361 | Insert, Handle (white) |
|
- | |||||
| 34 | 1119367 | Insert, Handle (white) |
|
- | |||||
| 34 | 1119369 | Insert, Handle (almond) |
|
- | |||||
| 35 | 1119366 | Retainer, Insert |
|
- | |||||
| 36 | 2156220 | End Cap (2) |
|
- | |||||
| 37 | 489075 | Screw |
|
- | |||||
| 39 | 1115333 | End Cap, Trim |
|
- | |||||
| 40 | 1115364 | End Cap, Trim |
|
- | |||||
| 42 | 489022 | Screw |
|
- | |||||
| 43 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 44 | 1115378 | Door Dike (2) |
|
- | |||||
| 45 | 1117766 | Gasket Retainer, Side (2) |
|
$ 36.55 | |||||
| 46 | 1117767 | Gasket Retainer, Top & Bottom |
|
- |
