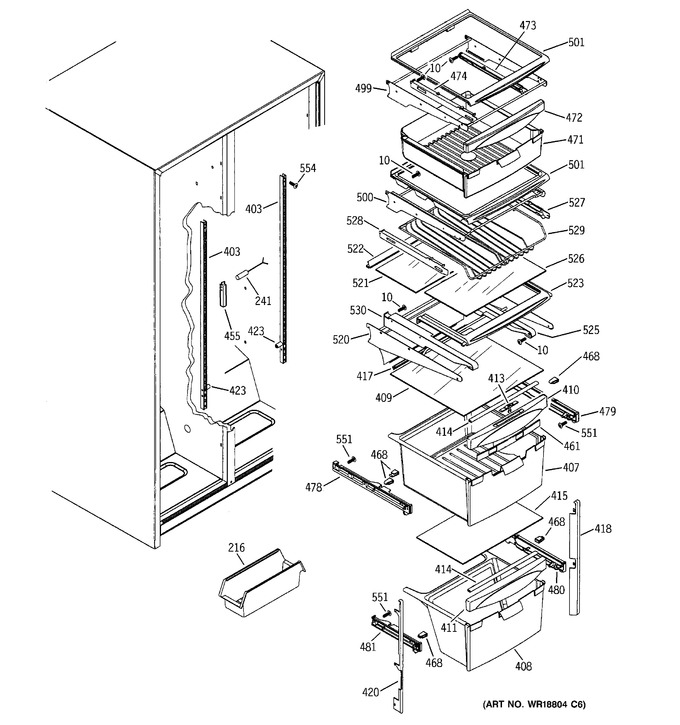

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss |
|
- | |||||
| 216 | WR32X1575 | Bucket Utility Clr |
|
- | |||||
| 241 | WR50X10027 | Sensor Temp |
|
- | |||||
| 403 | WR71X2588 | Track Cant Shelf |
|
- | |||||
| 407 | WG03L04206 | Pan Veg (Replaces: WR32X10133) |
|
$ 196.05 | |||||
| 408 | WR32X10131 | Pan Meat |
|
- | |||||
| 409 | WR32X10130 | Cover Pan Glass |
|
- | |||||
| 410 | WR17X11139 | Handle Veg Pan |
|
- | |||||
| 411 | WR17X11250 | Handle Pan Meat |
|
- | |||||
| 413 | WR02X11174 | Button Slide |
|
- | |||||
| 414 | WG03L01710 | Gasket Pan Cover Frt (Replaces: WR14X10084) |
|
$ 9.25 | |||||
| 415 | WR32X10129 | Cover Pan Glass |
|
- | |||||
| 417 | WR14X10052 | Gasket Shield Lower |
|
- | |||||
| 418 | WR17X10730 | Trim Pan Rh |
|
- | |||||
| 420 | WR17X10729 | Trim Pan Lh |
|
- | |||||
| 423 | WR2X6347 | Support Shield Top |
|
- | |||||
| 455 | WR02X10622 | Cover Sensor Ff |
|
- | |||||
| 461 | WR72X10083 | Slide Pan |
|
- | |||||
| 468 | WR1X2048 | Bearing Slide |
|
- | |||||
| 471 | WR32X10297 | Pan Snack Lower |
|
- | |||||
| 472 | WR17X11442 | Handle Pan Snack |
|
- | |||||
| 473 | WR72X10146 | Slide Pan Rh Side |
|
- | |||||
| 474 | WR72X10147 | Slide Pan Lh Side |
|
- | |||||
| 478 | WR01F03334 | Slide Asm Lh (Replaces: WR72X239) |
|
$ 111.73 | |||||
| 479 | WR01F03335 | Slide Asm Rh (Replaces: WR72X240) |
|
$ 87.23 | |||||
| 480 | WG03F00962 | Slide Asm Rh (Replaces: WR72X242) |
|
$ 81.27 | |||||
| 481 | WG03F00961 | Slide Asm Lh (Replaces: WR72X241) |
|
$ 106.28 | |||||
| 499 | WR71X10492 | Shelf Cant Spillprf |
|
- | |||||
| 500 | WR71X10480 | Shelf Cant Spillprf |
|
- | |||||
| 501 | WR32X10405 | Shelf Slide Out Asm |
|
- | |||||
| 520 | WR71X10227 | Shelf Cant Tuckaway |
|
- | |||||
| 521 | WR32X10136 | Shelf Glass Tuckaway |
|
- | |||||
| 522 | WR38X10198 | Reflector Tuckaway |
|
- | |||||
| 523 | WR71X10479 | Shelf Frame Tuckaway |
|
- | |||||
| 525 | WR72X10051 | Slide Tuckaway Rh |
|
- | |||||
| 526 | WR32X10135 | Shelf Glass Tuckaway |
|
- | |||||
| 527 | WR72X10038 | Slide Bev Rack Rh |
|
- | |||||
| 528 | WR72X10039 | Slide Bev Rack Lh |
|
- | |||||
| 529 | WR72X10060 | Rack Beverage |
|
- | |||||
| 530 | WR72X10050 | Slide Tuckaway Lh |
|
- | |||||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss |
|
- | |||||
| 554 | WR1X2141 | Scr 10-24 Tr Hxw I S |
|
- |
