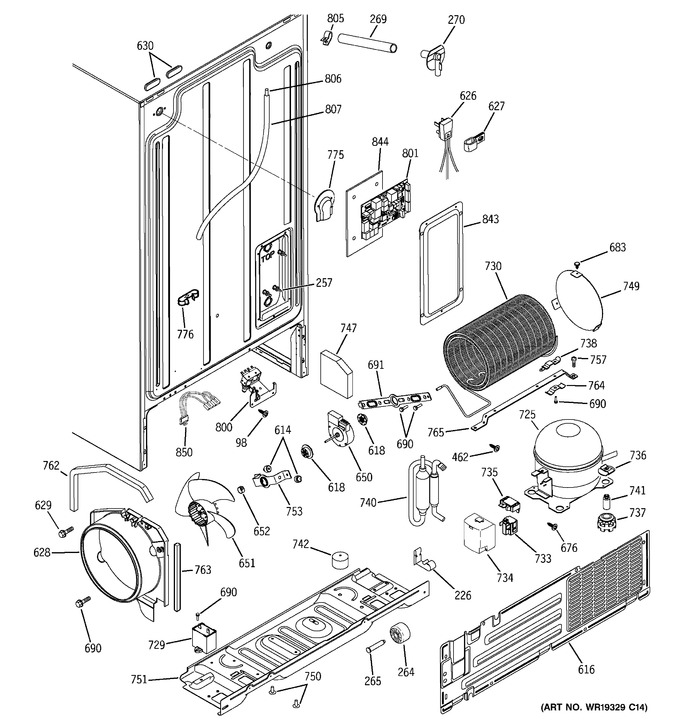

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
98	WR1K1		Screw 8-36 T Ihw 3/8 Sn		Appelez-nous	-
226	WR02X11608		Clip Drain Tube		Appelez-nous	-
257	WR02X10159		Fastener Board		Appelez-nous	-
264	WG03L06838		Wheel Mobility Rear   (Replaces: WR02X10695)				$ 19.06
265	WG03A00340		Axle Wheel   (Replaces: WR01X10039)				$ 8.58
269	WR02X11562		Tube Im Fill		Appelez-nous	-
270	WR2X9153		Grommet Water Fill		Appelez-nous	-
270	WR1X5223		Clamp Hose		Appelez-nous	-
462	WZ06X0136		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
614	WR01A00163		Bumper Lid   (Replaces: WR02X10540)			Immediately	$ 6.35
616	WR82X10094		Cover Access Asm		Appelez-nous	-
618	WR01A00315		Grommet Cond Fan   (Replaces: WR02X10520)				$ 4.17
626	WG03F00911		Cord Power Asm   (Replaces: WR23X10300)				$ 85.41
627	WR1X5278		Clamp Cable		Appelez-nous	-
628	WR17X11252		Shroud Condenser		Appelez-nous	-
629	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
630	WR2X4097		Plug Button Wh		Appelez-nous	-
650	WR60X10080		Motor Dc Cond Fan		Appelez-nous	-
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10049)				$ 11.51
652	WR02X10509		Ring Compression		Appelez-nous	-
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
683	WR02X10562		Fastener Push		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WR87X10100		Compressor Repl Kit   (Replaces: WR87X10099)		Appelez-nous	-
729	WR62X80		Capacitor		Appelez-nous	-
730	WR01F02892		Cond Asm Formed   (Replaces: WR84X10022)				$ 403.54
733	WG03F01423		Relay Start   (Replaces: WR07X10084)				$ 76.29
734	WR02X10556		Cover Relay Snap(mei)		Appelez-nous	-
735	WR8X164		Overload		Appelez-nous	-
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
738	WR2X7064		Clip Cond Loop		Appelez-nous	-
740	WG03A03157		Dryer   (Replaces: WR86X96)			Immediately	$ 153.40
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
742	WR02X10587		Support Condenser		Appelez-nous	-
747	WR82X10073		Insulation Side		Appelez-nous	-
749	WR17X10694		Baffle Cond Air		Appelez-nous	-
750	WR1X1786		Screw 10-32 Tr 1/2		Appelez-nous	-
751	WR17X11427		Baseplate High Side		Appelez-nous	-
753	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
757	WR01X10252		Scr 10-32 Tt Hxw 5/16 S		Appelez-nous	-
762	WR14X10053		Foam Strip Se Adh		Appelez-nous	-
763	WR14X10187		Foam Strip Se Adh		Appelez-nous	-
764	WR2X9000		Clip, Cond Mnt		Appelez-nous	-
765	WR17X10763		Bracket Condenser Bar		Appelez-nous	-
775	WR02X10047		Cover Water Line		Appelez-nous	-
776	WG03A00749		Clamp Tube   (Replaces: WR02X10522)				$ 9.25
800	WR57X10040		Water Valve				$ 71.10
801	WR55X10385		Board Main Asm Control		Appelez-nous	-
801	WR55X10174		Board Asm Main Control		Appelez-nous	-
805	WR2X3736		Str Relief		Appelez-nous	-
806	WR01F01881		Tube Plastic   (Replaces: WR17X11625)				$ 15.88
807	WR17X11325		Cover Plastic		Appelez-nous	-
843	WR17X11476		Cover Enclosure		Appelez-nous	-
844	WR02X10569		Insulator Main Board		Appelez-nous	-
850	WR23X10369		Harness Machine Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
