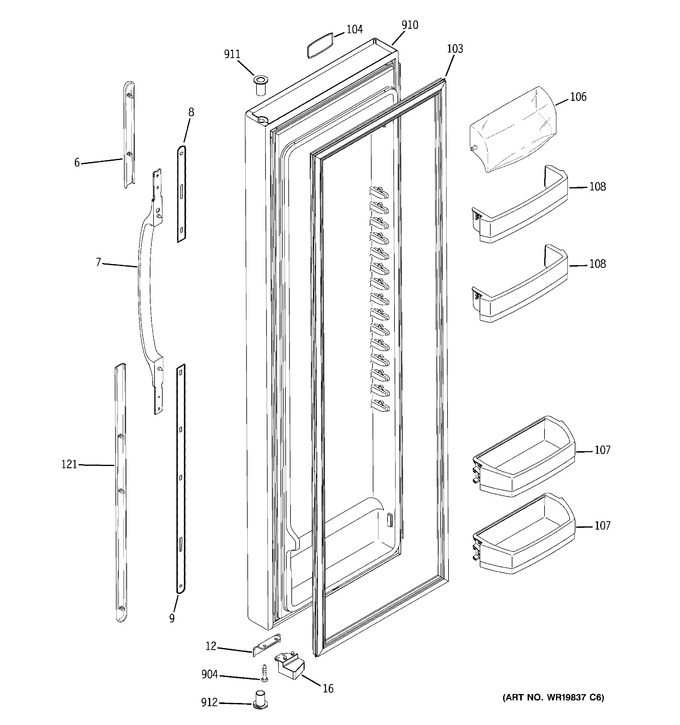

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10323		Tail Handle Sxs Bq		Appelez-nous	-
7	WR12X10783		Handle Sxs Asm		Appelez-nous	-
8	WR12X10150		Trim Handle Sxs		Appelez-nous	-
9	WR12X10190		Trim Handle Sxs		Appelez-nous	-
12	WR02X10817		Stop Door Bq		Appelez-nous	-
16	WR02X10637		Cam Closure Ff Wh		Appelez-nous	-
103	WR24X10155		Gasket Door Ff Wh		Appelez-nous	-
104	WR04X10091		Lens Nameplate Bq		Appelez-nous	-
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
107	WR01L01252		Door Bin Ff Adj   (Replaces: WR71X10642)				$ 69.21
108	WR01L00026		Shelf Module Fixed Ff   (Replaces: WR71X10641)				$ 66.00
121	WR12X10324		Tail Handle Sxs Bq		Appelez-nous	-
904	WR01X10316		Screw Door Stop		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
910	WR78X11359		Door Foam Asm Ff Bq		Appelez-nous	-
911	WR01X10236		Thimble Door Top Bq		Appelez-nous	-
912	WR01X10235		Thimble Door Btm Bq		Appelez-nous	-
