Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 49-60343 Pm Guide Owner Appelez-nous -
1 31-51623 Pm Mini Wiring Manual Appelez-nous -
3 WR09X10132 Harness Jumper Door Appelez-nous -
6 WR12X10323 Tail Handle Sxs Bq Appelez-nous -
7 WR12X10783 Handle Sxs Asm Appelez-nous -
8 WR12X10150 Trim Handle Sxs Appelez-nous -
9 WR12X10190 Trim Handle Sxs Appelez-nous -
11 WR38X10364 Trim Recess Disp Clad Bq Appelez-nous -
12 WR02X10817 Stop Door Bq Appelez-nous -
14 WR01L02185 Gasket Door Fz Wh   (Replaces: WR24X10156) Special Order $ 62.92

15 WR02X10638 Cam Closure Fz Wh Appelez-nous -
21 WR17X11940 Front Door Shelf Fz Appelez-nous -
23 WR17X11941 Front Door Shelf Fz Appelez-nous -
31 WR17X11656 Grille Recess Bq Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10020) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
56 WG03A03944 Bulb Recs 12v   (Replaces: WR02X10675) In-Stock Immediately $ 67.41

58 WR17X11863 Housing Shield Disp Appelez-nous -
61 WR02X12007 Socket Lamp Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

69 WR17X11966 Funnel Ice Disp Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR02X10584 Spring Funnel Appelez-nous -
80 WR01F02845 Union Connector   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X10516 Interface Disp Asm Bq Appelez-nous -
121 WR12X10324 Tail Handle Sxs Bq Appelez-nous -
900 WR78X11425 Door Foam Asm Fz Bq Appelez-nous -
903 WR01X10237 Thimble Door Btm Fz Bq Appelez-nous -
904 WR01X10316 Screw Door Stop Appelez-nous -
904 WR01X10375 Screw Door Stop T20 Appelez-nous -
911 WR01X10236 Thimble Door Top Bq Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

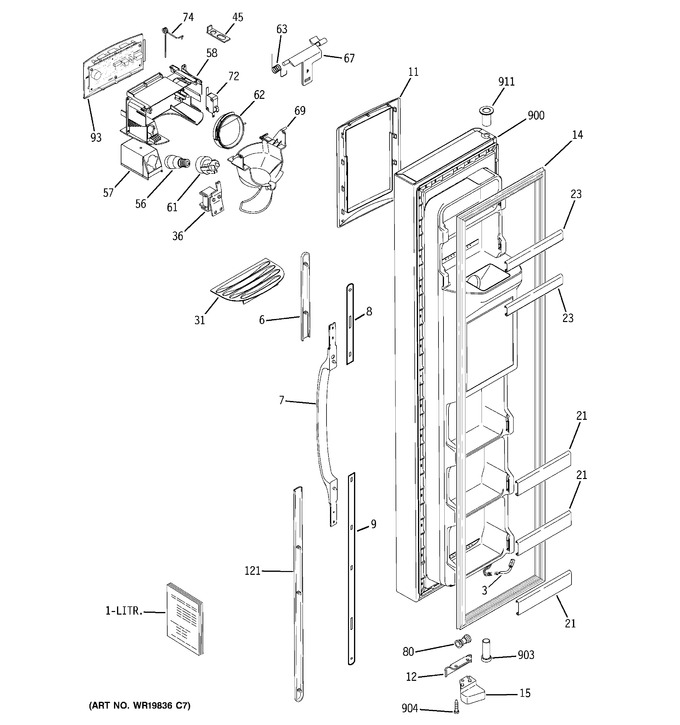

Diagram for ESS25XGSBCC
