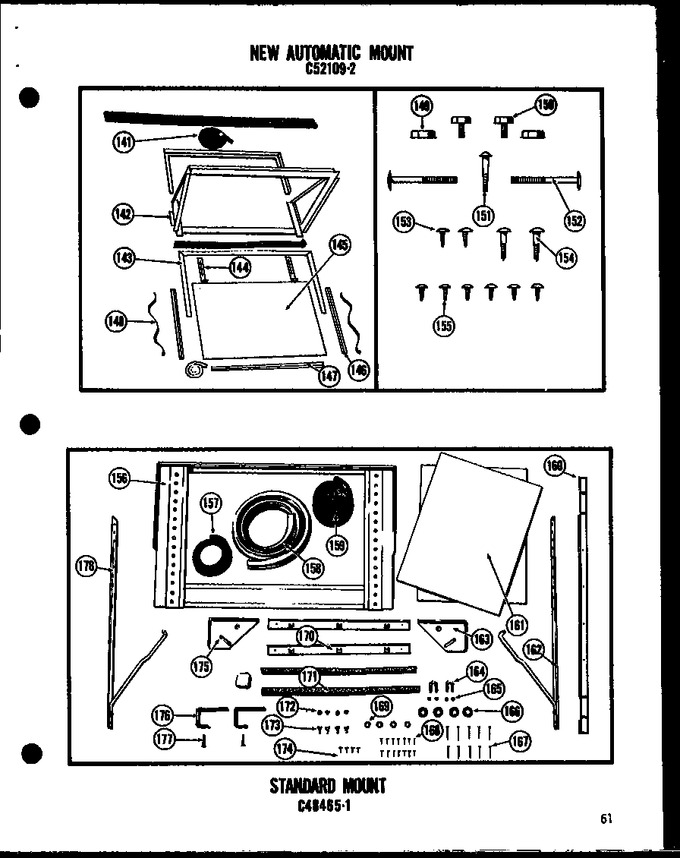

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
156	C4245602		Cradle, Mounting Kit		Appelez-nous	-
157	A4003801		Gasket, Bottom		Appelez-nous	-
158	B4144502		Gasket		Appelez-nous	-
159	A4660601		Gasket, Sash Seal Strip		Appelez-nous	-
160	B4106204		Retainer		Appelez-nous	-
161	A4080102		Board, Window		Appelez-nous	-
162	C4245508		Mounting Strap And Rod Assembl		Appelez-nous	-
163	D4348904		Support, Bracket		Appelez-nous	-
164	M0267528		V Bolt		Appelez-nous	-
165	WP487939		Nut   (Replaces: M0282015)				$ 8.62
166	M0270510		Washer		Appelez-nous	-
168	M0010508		X$x Nail		Appelez-nous	-
169	M0282009		Nut				$ 14.07
170	B4150802		Retainer Angle, Window Board		Appelez-nous	-
171	B4144605		Gasket		Appelez-nous	-
172	M0201566		Screw		Appelez-nous	-
173	M0206557		Screw		Appelez-nous	-
174	M0236004		Screw		Appelez-nous	-
175	D4348903		Support Bracket		Appelez-nous	-
176	B4145802		Clamp, Sill		Appelez-nous	-
177	M0200001		Screw		Appelez-nous	-
178	C4245508		Mounting Strap And Rod Assembl		Appelez-nous	-
NI	B4102502		Tie Brace, Outer Case		Appelez-nous	-
NI	M0282009		Nut				$ 14.07
NI	A3030302		Gasket		Appelez-nous	-
NI	C4257402		Gusset		Appelez-nous	-
NI	C4257401		Gusset		Appelez-nous	-
NI	M0258018		Sems Fastner		Appelez-nous	-
NI	M0201566		Screw		Appelez-nous	-
NI	C4257501		Frame		Appelez-nous	-
NI	B4149001		Back Angle, Window Mounting Ki		Appelez-nous	-
NI	B4148902		Runner, Window Mounting Kit		Appelez-nous	-
NI	B4148901		Runner, Window Mounting Kit		Appelez-nous	-
NI	A4536701		Clamp, Installation		Appelez-nous	-
NI	C4257701		Weldment, Cradle		Appelez-nous	-
NI	C4290901		Assembly Cradle		Appelez-nous	-
NI	B4198201		Spacer, Shipping Carton		Appelez-nous	-
NI	B4166401		Tie Brace		Appelez-nous	-
NI	B4198101		Shipping Carton, Casement Moun		Appelez-nous	-
NI	A4003807		Gasket, Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
