SELECT A DIAGRAM

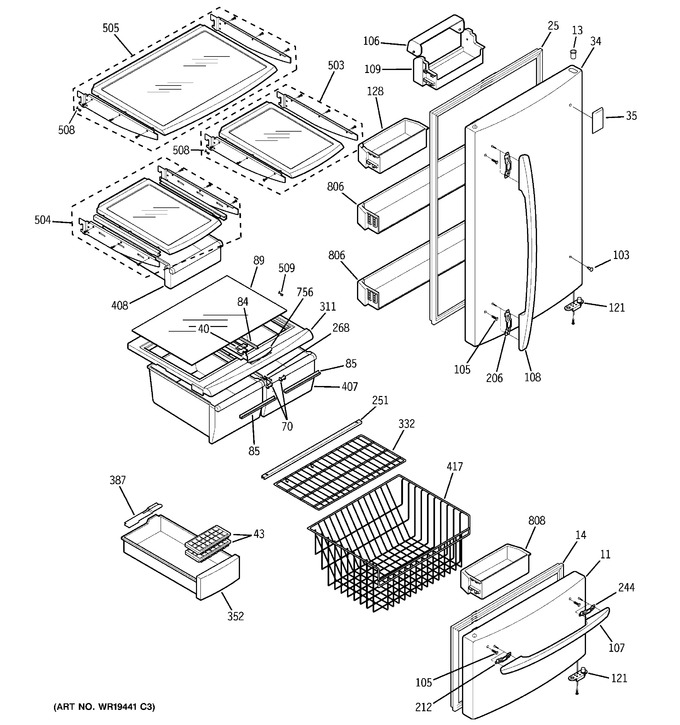

1 - Doors & Shelves
2 - Cabinet
3 - Water System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WR78X10955 | Door Asm Fz |
|
- | |||||
| 13 | WR01X10493 | Bush |
|
- | |||||
| 14 | WR14X10184 | Gasket Asm,fz |
|
- | |||||
| 25 | WR14X10185 | Gasket Asm,ff |
|
- | |||||
| 34 | WR78X10956 | Door Asm Ff |
|
- | |||||
| 35 | WR04X10139 | Name Plate |
|
- | |||||
| 40 | WR02X11684 | Guide Rail(middle T/v) |
|
- | |||||
| 43 | WG03F02198 | Tray, Ice (Replaces: WR30X10049) |
|
$ 51.14 | |||||
| 70 | WR02X11701 | Rail Slide Center |
|
- | |||||
| 84 | WR01L07648 | Middle Gasket (Replaces: WR14X10176) |
|
$ 40.23 | |||||
| 85 | WG03L01302 | Front Gasket (Replaces: WR14X10175) |
|
$ 44.06 | |||||
| 89 | WR32X10465 | Glass Cover Veg Pan |
|
- | |||||
| 103 | WR02X11750 | Plug Button - Wh |
|
- | |||||
| 105 | WR01X10446 | Bolt-door Handle |
|
- | |||||
| 106 | WR02X11665 | Dairy Door Cvr |
|
- | |||||
| 107 | WR12X10678 | Handle,fzr Door |
|
- | |||||
| 108 | WR12X10677 | Handle,ff Door |
|
- | |||||
| 109 | WR71X10536 | Dairy Bin |
|
- | |||||
| 121 | WR02X11720 | Stopper Door Wh |
|
- | |||||
| 128 | WR71X10552 | Door Module - Fzr |
|
- | |||||
| 206 | WR02X11679 | Bracket Handle Ff |
|
- | |||||
| 212 | WR02X11678 | Bracket Handle Fzr Left |
|
- | |||||
| 244 | WR02X11677 | Bracket Handle Fz Right |
|
- | |||||
| 251 | WR02X11703 | Supportor Cover T/v |
|
- | |||||
| 268 | WG03L01071 | Adjuster (Replaces: WR02X11671) |
|
$ 21.63 | |||||
| 311 | WR72X10154 | Frame Lower Pan |
|
- | |||||
| 332 | WR71X10558 | Shelf,f |
|
- | |||||
| 352 | WR30X10052 | Ice Bin |
|
- | |||||
| 387 | WR02X11662 | Cover Ice Bin |
|
- | |||||
| 407 | WR32X10471 | Veg Pan |
|
- | |||||
| 408 | WR32X10472 | Snack Pan |
|
- | |||||
| 417 | WR21X10088 | Fzr Basket |
|
- | |||||
| 503 | WR71X10574 | Shelf Assembly |
|
- | |||||
| 504 | WR71X10573 | Shelf Assembly |
|
- | |||||
| 505 | WR71X10572 | Shelf Assembly,(full) |
|
- | |||||
| 508 | WG03L01139 | Cover Stopper (Replaces: WR02X12054) |
|
$ 6.09 | |||||
| 509 | WG03L01586 | Shelf Stopper (Replaces: WR02X12053) |
|
$ 6.09 | |||||
| 756 | WR02X11729 | Deco,cover-t/v |
|
- | |||||
| 806 | WR71X10557 | Door Bin |
|
- | |||||
| 808 | WR71X10606 | Door Bin |
|
- |
