View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

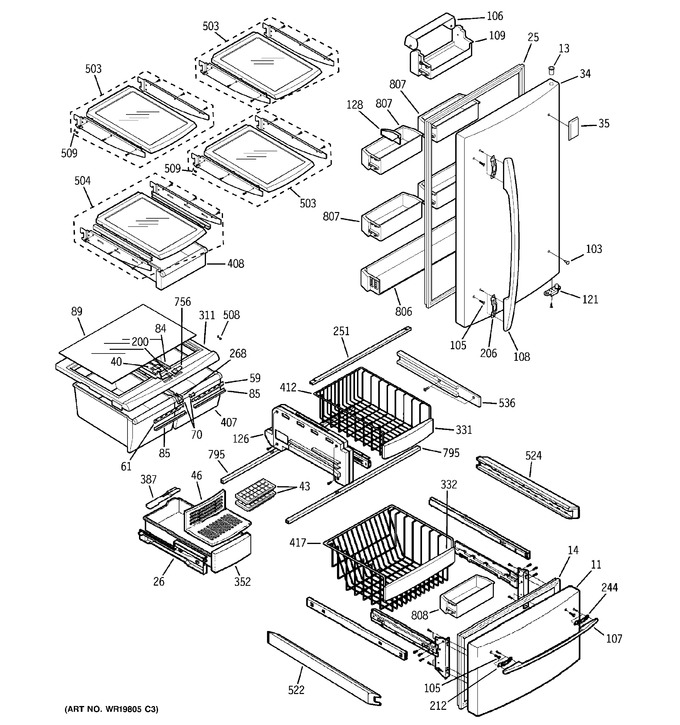

1 - Doors & Shelves
2 - Cabinet
3 - Water System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WR78X10953 | Door Asm Fzr |
|
- | |||||
| 13 | WR01X10493 | Bush |
|
- | |||||
| 14 | WR14X10184 | Gasket Assembly,fz |
|
- | |||||
| 25 | WR14X10185 | Gasket Assembly,ff |
|
- | |||||
| 26 | WR17X11585 | Guide Rail(ice)bin |
|
- | |||||
| 34 | WR78X10942 | Door Asm Ff |
|
- | |||||
| 35 | WR04X10139 | Name Plate |
|
- | |||||
| 40 | WR02X11684 | Guide Rail(middle T/v) |
|
- | |||||
| 43 | WG03F02198 | Tray, Ice (Replaces: WR30X10049) |
|
$ 51.14 | |||||
| 46 | WR30X10050 | Shelf Ice Tray |
|
- | |||||
| 59 | WR02X11674 | Link,humidity(r) |
|
- | |||||
| 61 | WR02X11673 | Link,humidity(l) |
|
- | |||||
| 70 | WR02X11701 | Rail Slide(c) |
|
- | |||||
| 84 | WR01L07648 | Middle Gasket (Replaces: WR14X10176) |
|
$ 40.23 | |||||
| 85 | WG03L01302 | Front Gasket (Replaces: WR14X10175) |
|
$ 44.06 | |||||
| 89 | WR32X10465 | Glass Cover Veg Pan |
|
- | |||||
| 103 | WR02X11751 | Plub Button - Bisque |
|
- | |||||
| 105 | WR01X10446 | Bolt-door Hndl |
|
- | |||||
| 106 | WR02X11665 | Dairy Door Cvr |
|
- | |||||
| 107 | WR12X10676 | Handle,fzr Door |
|
- | |||||
| 108 | WR12X10675 | Handle,ff Door |
|
- | |||||
| 109 | WR71X10536 | Dairy Bin |
|
- | |||||
| 121 | WR02X11718 | Stopper,door Bq |
|
- | |||||
| 126 | WR02X11728 | Guide Assembly,rail |
|
- | |||||
| 128 | WG03L01630 | Snugger (Replaces: WR02X11680) |
|
$ 17.01 | |||||
| 200 | WG03F00983 | Shutter Slide (Replaces: WR02X11689) |
|
$ 12.40 | |||||
| 206 | WR02X11679 | Bracket Handle Ff |
|
- | |||||
| 212 | WR02X11678 | Bracket Handle Fzr(l) |
|
- | |||||
| 244 | WR02X11677 | Bracket Handle Fz(r) |
|
- | |||||
| 251 | WR02X11703 | Supportor Cover T/v |
|
- | |||||
| 268 | WG03L01071 | Adjuster (Replaces: WR02X11671) |
|
$ 21.63 | |||||
| 311 | WR72X10154 | Frame Lower Pan |
|
- | |||||
| 331 | WR12X10679 | Deco,tray F/u |
|
- | |||||
| 332 | WR12X10658 | Fzr Bskt W/trim |
|
- | |||||
| 352 | WR30X10052 | Ice Bin |
|
- | |||||
| 387 | WR02X11662 | Cover Ice Bin |
|
- | |||||
| 407 | WG03L01665 | Veg Pan (Replaces: WR32X10463) |
|
$ 237.52 | |||||
| 408 | WR32X10464 | Snack Pan |
|
- | |||||
| 412 | WR21X10089 | Tray Drawer, F/u |
|
- | |||||
| 417 | WR21X10078 | Fzr Bskt |
|
- | |||||
| 503 | WR71X10570 | Shelf Assembly |
|
- | |||||
| 504 | WR71X10571 | Shelf Assembly |
|
- | |||||
| 508 | WG03L01586 | Shelf Stopper (Replaces: WR02X12053) |
|
$ 6.09 | |||||
| 509 | WG03L01139 | Cover Stopper (Replaces: WR02X12054) |
|
$ 6.09 | |||||
| 522 | WR02X11726 | Guide Assembly,rail(l) |
|
- | |||||
| 524 | WR02X11725 | Guide Assembly,rail(r) |
|
- | |||||
| 536 | WR02X12037 | Holder, Rail |
|
- | |||||
| 756 | WG03F00562 | Shutter Slide (Replaces: WR02X11688) |
|
$ 12.40 | |||||
| 795 | WR30X10051 | Supportor,divider |
|
- | |||||
| 806 | WR71X10557 | Door Bin |
|
- | |||||
| 807 | WR71X10532 | Door Bin |
|
- | |||||
| 808 | WR71X10552 | Door Bin |
|
- |
