SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

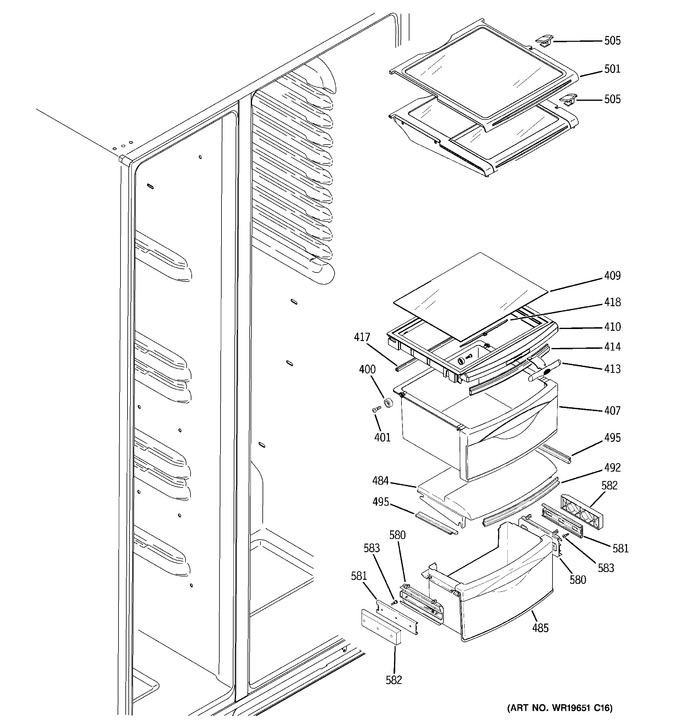

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.97
401	WR01X10214		Scr 10-16 Pl Pnp 5/8 Szn		Appelez-nous	-
407	WR01L11576		Pan Asm   (Replaces: WR32X10352)			Immediately	$ 66.56
409	WR01L01061		Cover Pan Glass   (Replaces: WR32X10200)			Immediately	$ 14.99
410	WR32X10288		Cover Middle Pan		Appelez-nous	-
413	WR02X10821		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.94
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
484	WR32X10446		Cover Pan Asm		Appelez-nous	-
485	WR32X10507		Pan Frame Asm		Appelez-nous	-
492	WR14X10105		Seal Front Chill		Appelez-nous	-
495	WR14X10159		Seal Sides Chill		Appelez-nous	-
501	WR01L04325		Shelf Slideout Asm   (Replaces: WR71X10296)				$ 83.16
505	WR01A00596		Stop Shelf   (Replaces: WR02X10662)				$ 28.59
580	WR72X10173		Slide And Bracket Asm R		Appelez-nous	-
580	WR72X10172		Slide And Bracket Asm L		Appelez-nous	-
581	WR72X10141		Slide Liner		Appelez-nous	-
582	WR72X10142		Spacer Slide		Appelez-nous	-
583	WR01X10399		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
