SELECT A DIAGRAM

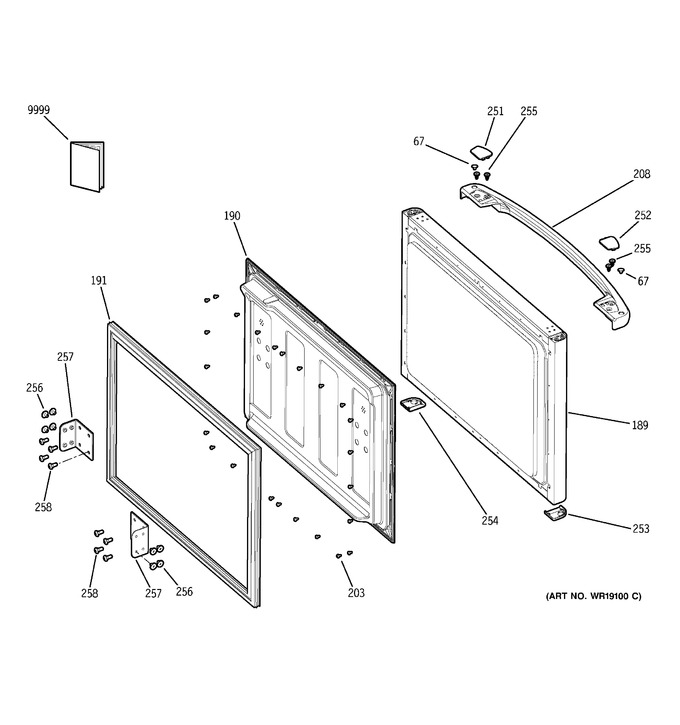

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves


5 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
67	WR02X11090		Plug Button,thimble Bq		Appelez-nous	-
189	WR78X10563		Door, Fz Bq		Appelez-nous	-
190	WR78X10562		Liner, Door		Appelez-nous	-
191	WR24X10104		Gkt,door Fz Wh		Appelez-nous	-
203	WR01X10265		Screw		Appelez-nous	-
203	WR01X10286		Screw		Appelez-nous	-
208	WR12X10514		Handle,asm(fz) Bisque		Appelez-nous	-
251	WR02X11088		Cover,handle Rh Fz Bq		Appelez-nous	-
252	WR02X11089		Cover,handle Lh Fz Bq		Appelez-nous	-
253	WR02X11091		Epaulet,dr Cnr Rh B		Appelez-nous	-
254	WR02X11092		Epaulet,dr Cnr Lh B		Appelez-nous	-
255	WR01X10275		Screw (10-24 Shoulder)		Appelez-nous	-
256	WR1M722		Screw Door		Appelez-nous	-
257	WR2M3540		Slide Bracket Drawer		Appelez-nous	-
258	WR1M723		Screw Shoulder		Appelez-nous	-
9999	WR49X10065		Reversible Door Kit L.h.		Appelez-nous	-
9999	31-47018		Mini Manual		Appelez-nous	-
9999	49-60248		Use & Care Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
