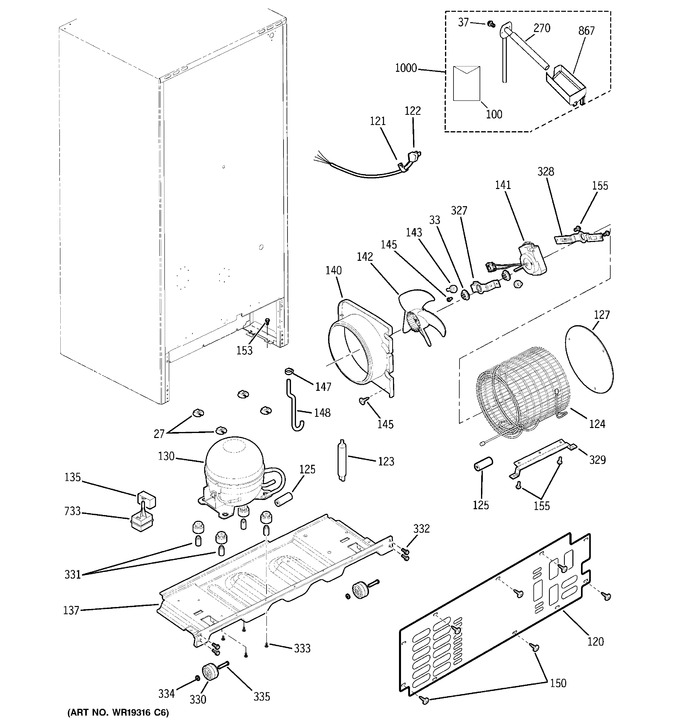

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
27	WR01X10106		Clip Comp Mnt		Appelez-nous	-
33	WR01A00315		Grommet Cond Fan   (Replaces: WR02X10520)				$ 4.17
37	WR01X10268		Screw (black)		Appelez-nous	-
100	31-47020		Instruction Sheet Im		Appelez-nous	-
120	WR02X11800		Cover Access		Appelez-nous	-
121	WR02X10076		Clamp		Appelez-nous	-
122	WR23X10322		Power Cord		Appelez-nous	-
123	WR86X10006		Drier		Appelez-nous	-
124	WR84X10054		Condenser		Appelez-nous	-
125	WR02X11044		Grommet		Appelez-nous	-
127	WR17X11298		Baffle, Condenser		Appelez-nous	-
130	WR87X10108		Compressor Kit Service		Appelez-nous	-
135	WR62X10012		Capacitor		Appelez-nous	-
137	WR17X11475		Baseplate, Comp		Appelez-nous	-
140	WR17X11105		Shroud, Cond		Appelez-nous	-
141	WR60M133		Motor Cond Fan				$ 345.00
142	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10049)				$ 11.51
143	WR02X11045		Pad		Appelez-nous	-
145	WR01X10271		Screw		Appelez-nous	-
147	WR02X11046		Clamp, Drain Hose		Appelez-nous	-
148	WR02X11047		Tube, Drain		Appelez-nous	-
150	WR01X10080		Screw, Access		Appelez-nous	-
153	WR01X10272		Screw		Appelez-nous	-
155	WR01X10273		Screw, Bracket		Appelez-nous	-
270	WR17X11545		Grommet/tube & W-line As		Appelez-nous	-
327	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
328	WR02X11084		Bracket, Fan Back		Appelez-nous	-
329	WR02X11085		Bracket, Cond		Appelez-nous	-
330	WG03L00758		Wheel, Front   (Replaces: WR2X8244)				$ 12.71
331	WR1X1779		Stud Mtg Compr		Appelez-nous	-
332	WR01X10281		Screw		Appelez-nous	-
333	WR01X10282		Screw		Appelez-nous	-
334	WR02X11525		C Clip		Appelez-nous	-
335	WR02X11524		Axle		Appelez-nous	-
733	WR07X10078		Protector (5 Sp)		Appelez-nous	-
867	WR29X10058		Cup Fill Im		Appelez-nous	-
1000	WR49X10079		Im Installation Bag Asm.		Appelez-nous	-
