SELECT A DIAGRAM

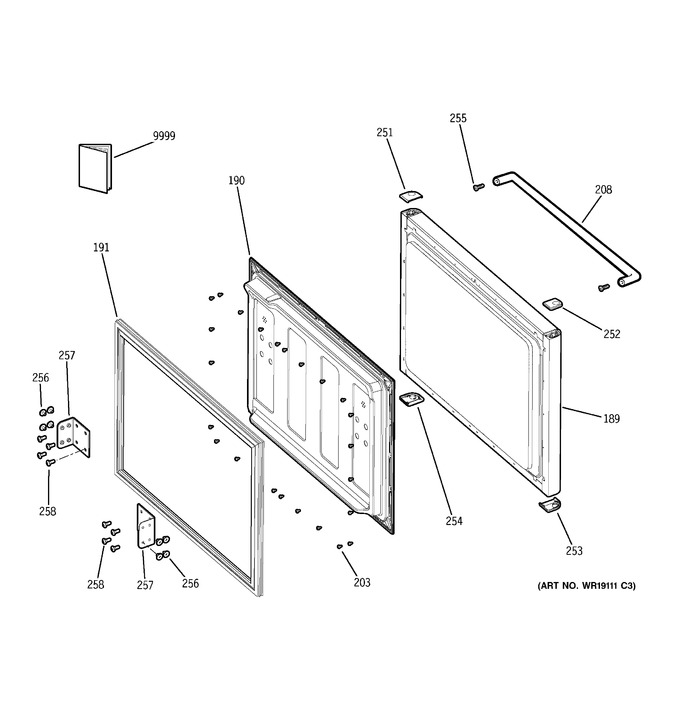

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves


5 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
189	WR78X10567		Door, Fz Ss		Appelez-nous	-
190	WR78X10562		Liner, Door		Appelez-nous	-
191	WR24X10101		Gasket, Door Fz Bk		Appelez-nous	-
203	WR01X10286		Screw		Appelez-nous	-
208	WB15M378		Handle Asm Stn Stl		Appelez-nous	-
251	WR02X11603		Epaulet, Door Corner - S		Appelez-nous	-
252	WR02X11600		Epaulet, Door Corner - S		Appelez-nous	-
253	WR02X11115		Epaulet,door Corner Rh S		Appelez-nous	-
253	WR02X11601		Epaulet, Door Corner - S		Appelez-nous	-
254	WR02X11602		Epaulet, Door Corner - S		Appelez-nous	-
255	WR01X10430		Screw		Appelez-nous	-
256	WR1M722		Screw Door		Appelez-nous	-
257	WR02X11604		Bracket, Slide		Appelez-nous	-
258	WR01X10428		Screw 1/4-20 X .70		Appelez-nous	-
9999	49-60248		Use & Care Manual		Appelez-nous	-
9999	31-47018		Mini Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
