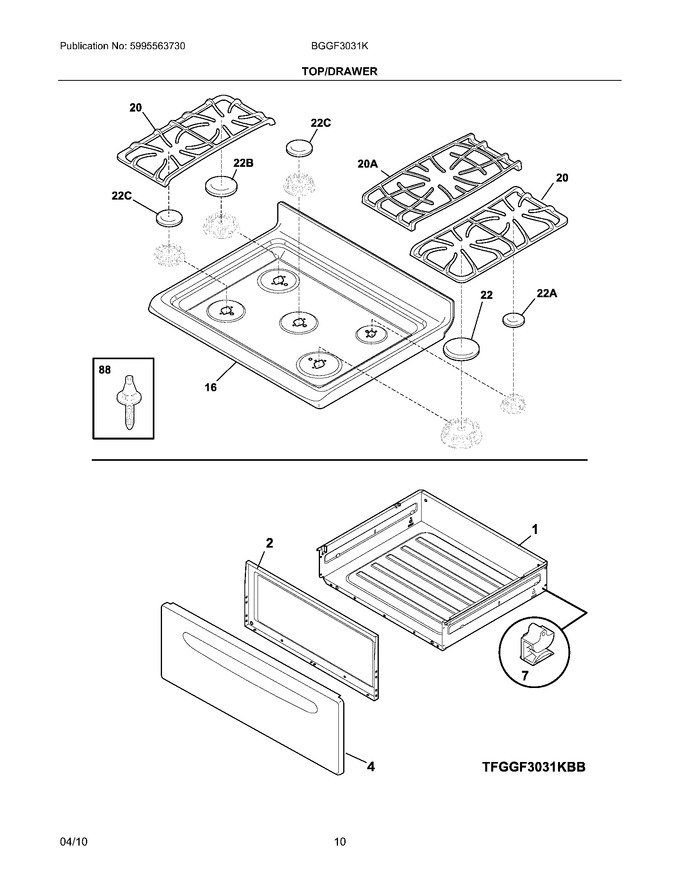

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 122.90
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 29.49
4	316403401		Panel,drawer ,white ,front				$ 92.51
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 10.95
16	316469662		Maintop Panel,white				$ 208.39
20	316499806		Grate,black ,(2)   (Replaces: 316499502)				$ 393.51
22	5304508468		Cap,burner ,17k ,black   (Replaces: 316262104)				$ 54.94
88	316099500		Pin,guide ,(2)				$ 7.25
20A	316499806		Grate,center ,black   (Replaces: 316551802)				$ 393.51
22A	5304508441		Cap,5k Burner ,black   (Replaces: 316261704)			Immediately	$ 38.93
22B	5304508443		Cap,14k Burner ,black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508442		Cap,9.5k Burner ,black ,(2)   (Replaces: 316261804)			Immediately	$ 40.61
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
