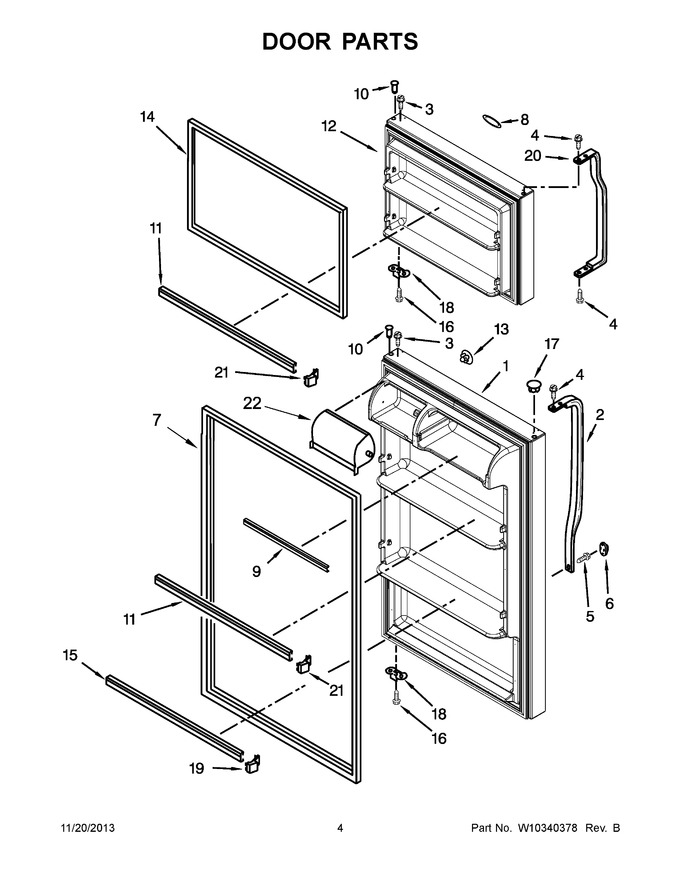

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316022W		Door, Refrigerator (includes Items 7 And 10) (white)		Appelez-nous	-
2	WP2221946W		Handle, Refrigerator (white)   (Replaces: 2221946W)			Immediately	$ 130.11
3	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
6	WP2202819W		Cover, Handle Screw (white)   (Replaces: 2202819W)			Immediately	$ 8.14
7	WP2319265T		Gasket, Refrigerator Door (beige)   (Replaces: W10190033)			Immediately	$ 184.89
8	2325418		Nameplate (silver)				$ 44.68
9	W11129820		Trim, Door   (Replaces: W10234242)			Immediately	$ 127.34
10	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
11	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 92.50
12	2316021W		Door, Freezer (includes Items 10 And 14) (white)		Appelez-nous	-
13	WP2189000		Plug, Handle Hole (white)   (Replaces: 2189000)			Immediately	$ 7.77
14	WP2319263T		Gasket, Freezer Door (beige)   (Replaces: W10190031)			Immediately	$ 169.53
15	WP2266738		Trim, Door   (Replaces: 2266738)				$ 111.69
16	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
17	WP2212648		Plug, Hinge Hole (white)   (Replaces: 2212648)			Immediately	$ 8.19
18	2217944		Bracket, Door Stop				$ 26.55
19	WP2195916K		Cap, Door Trim End   (Replaces: 2195916)			Immediately	$ 13.18
20	WP2202098		Handle, Freezer (white)   (Replaces: 2202098)				$ 156.82
21	WP2156003		Cap, Door Trim End   (Replaces: 2156003)			Immediately	$ 13.25
22	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 58.76
