Diagram for 1 - Body Parts
1 - Body Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 WS35X10001 O-ring Seal Kit Special Order $ 35.65

4 WS34X10006 Decal Appelez-nous -
5 WS07X10004 Overflow Drain Hose-20ft Special Order $ 84.45

6 WS07X10012 Valve Drain Hose-15 Ft Appelez-nous -
7 WS14X10002 Distributor Top Special Order $ 43.67

8 WS14X10001 Distributor Bottom Special Order $ 238.90

9 WS01X10002 Resin - 1 Cu. Ft. Special Order $ 263.31

9 WS01X10003 Resin - 1/2 Cu. Ft. Appelez-nous -
10 WS32X10004 Tank Resin - 10" X 35 " Appelez-nous -
11 WS31X10015 Cover Bottom Appelez-nous -
12 WS31X10014 Cover Faceplate Appelez-nous -
13 WS21X10009 Timer Appelez-nous -
14 WS26X10013 Harness Wire   (Replaces: WS06X10003) Special Order $ 143.84

15 WS06X10004 Power Cord Appelez-nous -
16 WS26X10013 Transformer   (Replaces: WS26X10001) Special Order $ 143.84

17 WS31X10016 Shroud & Base Appelez-nous -
18 WS33X10004 Base Appelez-nous -
19 WS33X10005 Cover, Brine Tank Appelez-nous -
20 WS31X10017 Cover Brinwell Appelez-nous -
21 WS02X10021 Nut, #6-32 Appelez-nous -
22 WS32X10002 Tank Brinewell, Round Special Order $ 26.83

23 WS02X10022 Screw #6-32 Appelez-nous -
24 WS32X10013 Tank Brine Appelez-nous -
25 WS18X10003 Clamp Hose Special Order $ 45.92

26 WS22X10016 Adaptor Hose Special Order $ 45.92

27 WS22X10017 Grommet Special Order $ 45.92

28 WS01X10005 Hose Clamp Appelez-nous -
28 WS01X10006 Ground Wire Appelez-nous -
30 WS35X10003 Float, Stem & Guide Asm. Special Order $ 157.02

31 WS60X10004 Clip   (Replaces: WS03X10006) Special Order $ 8.37

32 WS15X10077 Valve Body, Brine   (Replaces: WS15X10006) Special Order $ 121.38

33 WS15X10077 Clip   (Replaces: WS03X10007) Special Order $ 121.38

34 WS15X10077 Screen   (Replaces: WS03X10008) Special Order $ 121.38

35 WS07X10002 Tubing Asm. Special Order $ 118.49

36 WS07X10003 Tube Brine Appelez-nous -
37 WS34X10007 Decal Appelez-nous -
55 WS28X10078 Retainer Clamp   (Replaces: WS28X10003) Special Order $ 42.39

56 WS28X10078 Clamp   (Replaces: WS28X10007) Special Order $ 42.39

998 WS35X10021 Install Kit - Gnsf39z Appelez-nous -
999 49-50020 Use & Care/install Instr Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

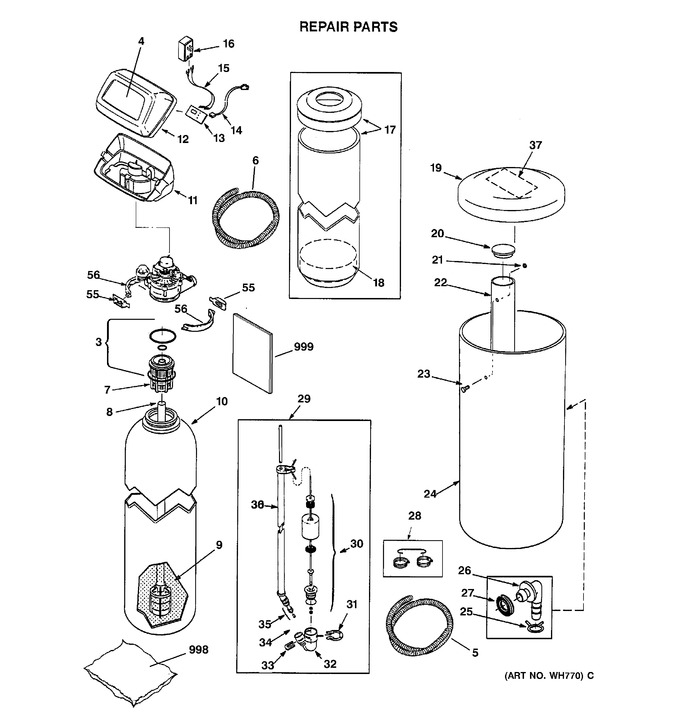

Diagram for GNSF39A01
