SELECT A DIAGRAM

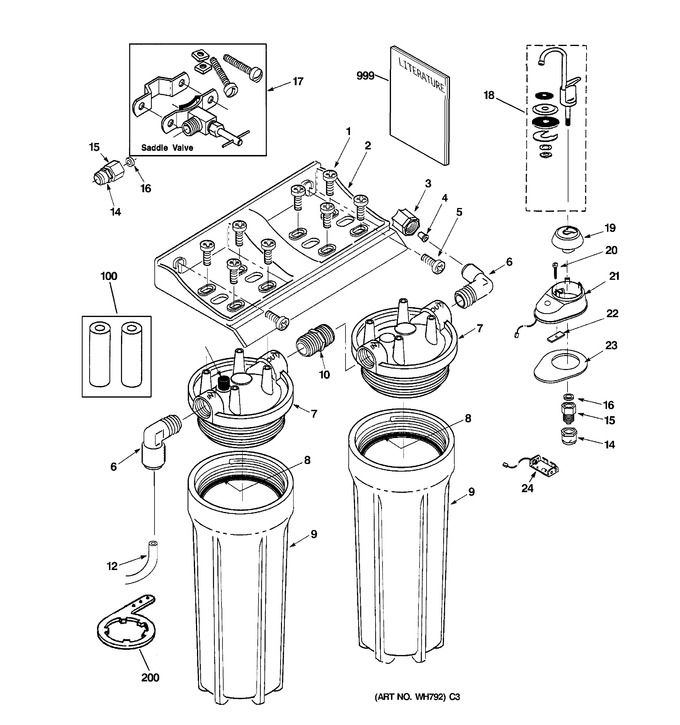

1 - Undersink Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WS02X10001		Screw, #10 - 14 X 3/4"		Appelez-nous	-
2	WS28X10010		Bracket Mounting		Appelez-nous	-
3	WS22X10008		Nut 3/8" Tube				$ 11.78
4	WS22X10007		Insert 3/8" Tube				$ 10.23
5	WS02X10003		Screw, #10 - 14 X 1-1/4"		Appelez-nous	-
6	WS22X10002		Elbow 3/8" Npt X 3/8"				$ 17.05
7	WS19X10011		Head		Appelez-nous	-
8	WS03X10001		O-ring, 3-3/8" X 3-5/8"				$ 16.38
9	WS30X10002		Sump				$ 84.32
10	WS22X10003		Nipple 3/8" Npt X 1-1/2"				$ 8.55
12	WS07X10019		Tubing, 3/8" X 20 Ft.   (Replaces: WS07X10008)				$ 37.89
14	WS02X10004		Nut, 3/8"				$ 11.47
15	WS03X10040		Tubing Adaptor		Appelez-nous	-
16	WS03X10002		Washer				$ 13.02
17	WS15X10023		Saddle Valve - Supply				$ 50.53
18	WS15X10028		Faucet Ass'y - Chrome/bl		Appelez-nous	-
19	WS10X10008		Top Faucet Base-black				$ 48.36
20	WS02X10007		Screw, #6-32 X 1-3/8"				$ 5.89
21	WS10X10002		Faucet Base - Black				$ 398.43
22	WS02X10008		Nut		Appelez-nous	-
23	WS08X10003		Gasket Faucet				$ 12.40
24	WS06X10001		Battery Holder		Appelez-nous	-
100	FXSVC		Filter Set				$ 97.62
200	WX5X140		Wrench - Sump Adj				$ 22.16
999	WS10X10014		Faucet Repair Kit		Appelez-nous	-
999	49-40057		Use/care & Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
