SELECT A DIAGRAM
1 - Escutcheon & Door Assembly

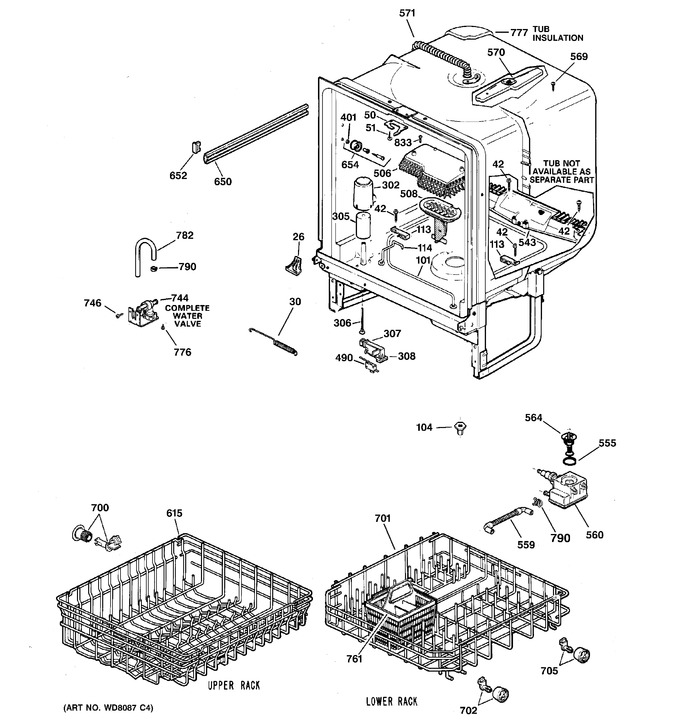

2 - Body Parts
3 - Motor-pump Mechanism
4 - Cabinet & Exterior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | WG04F01565 | Baffle Tub Corner Rh (Replaces: WD8X227) |
|
Immediately | $ 10.86 | ||||
| 26 | WG04F00036 | Baffle Tub Corner Lh (Replaces: WD8X228) |
|
Immediately | $ 10.86 | ||||
| 30 | WG04A01299 | Spring Door No Clr 26.5 (Replaces: WD2M205) |
|
$ 95.41 | |||||
| 30 | WG04L04163 | Spring Door Br 18 Lb (Replaces: WD03X10004) |
|
$ 95.41 | |||||
| 42 | WZ04X0376 | Scr 10-16x3/4 #8 Hx Sstl |
|
- | |||||
| 50 | WG04F04725 | Keeper Latch (Replaces: WD13X67) |
|
$ 11.12 | |||||
| 51 | WZ02X0492 | Scr 10-24x1/2 Tt Trr S |
|
- | |||||
| 101 | WD5M6 | Element Heating Asm D&d |
|
- | |||||
| 104 | WD01X10070 | Nut Tower Heater |
|
- | |||||
| 113 | WD01X10086 | Support Calrod Asm |
|
- | |||||
| 114 | WD1X1472 | Support Heater |
|
- | |||||
| 302 | WD12X445 | Float Dome |
|
- | |||||
| 305 | WD12X334 | Flood Float |
|
- | |||||
| 306 | WD12X335 | Float Stem |
|
- | |||||
| 307 | WD12X10023 | Bracket Flood Switch |
|
- | |||||
| 308 | WG04F01663 | Cover Bracket (Replaces: WD12X377) |
|
$ 9.53 | |||||
| 401 | WD3X767 | Washer |
|
- | |||||
| 490 | WG04F01056 | Switch Flood (Replaces: WD21X479) |
|
$ 14.29 | |||||
| 506 | WG04F01664 | Cover Inlet (Replaces: WD12X417) |
|
$ 59.78 | |||||
| 508 | WG04A00416 | Cap Sump (Replaces: WD12X418) |
|
$ 73.11 | |||||
| 543 | WD22X149 | Filter Frame Asm |
|
- | |||||
| 555 | WG04L00217 | Gasket Valve Body (Replaces: WD8X219) |
|
Immediately | $ 6.35 | ||||
| 559 | WD24X10015 | Hose Chamber |
|
$ 6.70 | |||||
| 560 | WD22X10018 | Body Valve & Check Asm |
|
- | |||||
| 564 | DW10018 | Piston & Nut Asm (Replaces: WD24X220) |
|
Immediately | $ 13.42 | ||||
| 569 | WD02X10061 | Scr 8-18 Pl Hxw 3/8 Ss |
|
- | |||||
| 570 | WW03F00159 | Sprayarm Asm 3rd Level (Replaces: WD28X10043) |
|
Immediately | $ 189.48 | ||||
| 571 | WD24X214 | Hose Power Shower |
|
- | |||||
| 615 | WD28X10055 | Rack Upper & Roller Asm |
|
- | |||||
| 650 | WG04L01903 | Slide Rack Assy (Replaces: WD12M77) |
|
Immediately | $ 38.12 | ||||
| 652 | WG04L00086 | Rack Slide End Cap (Replaces: WD12X344) |
|
Immediately | $ 94.28 | ||||
| 654 | WD12X332 | Roller Stud Asm |
|
$ 4.88 | |||||
| 700 | WG04A01222 | 4-rlr Std Asm,upr Rack (Replaces: WD12X383) |
|
Immediately | $ 19.06 | ||||
| 701 | WG04A05238 | Rack Lower Roller Asm (Replaces: WD28X305) |
|
$ 209.83 | |||||
| 702 | WG04L00442 | Roller Asm Lwr Rack Frnt (Replaces: WD12X271) |
|
Immediately | $ 7.24 | ||||
| 705 | WG04A03477 | Roller Asm Lwr Rack Rear (Replaces: WD12X272) |
|
Immediately | $ 67.43 | ||||
| 744 | WD15X93 | Valve Water Inlet (Replaces: WD10M10) |
|
$ 64.56 | |||||
| 746 | WD2X248 | Scr 10-24x3/8 Tt Hex |
|
- | |||||
| 761 | WD28X256 | Basket Silverware |
|
- | |||||
| 776 | WZ05X0222 | Scr 10-32 T Hex 7/16 S |
|
- | |||||
| 777 | WD1X1498 | Insulation Tub |
|
- | |||||
| 782 | WG04F00460 | Water Inlet Hose (Replaces: WD18X202) |
|
$ 14.29 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 833 | WG04A01239 | Scr 8-16x2 Ss (Replaces: WD2X295) |
|
$ 3.97 |
