SELECT A DIAGRAM

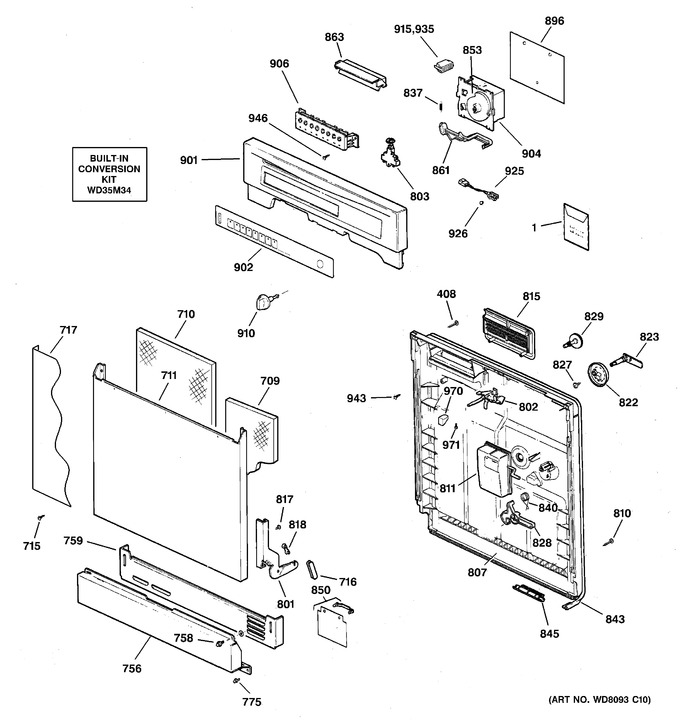

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Motor-pump Mechanism


4 - Cabinet & Exterior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30130		Pm Instruction Install		Appelez-nous	-
1	31-31010		Pm Sheet Mini Manual		Appelez-nous	-
1	49-5920		Pm Manual Use & Care		Appelez-nous	-
408	WD2X296		Screw 8-32x5/8		Appelez-nous	-
709	WD01X10084		Insulation		Appelez-nous	-
710	WD01X10083		Insulation		Appelez-nous	-
711	WG04L00406		Panel Front Long Wh   (Replaces: WD31X10025)				$ 77.88
715	WD2X432		Screw 8-18 X 5/16 Bk		Appelez-nous	-
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 5.72
717	WD27X10077		Cover Panel - Long Wh		Appelez-nous	-
756	WG04L01506		Panel Access Asm Wh   (Replaces: WD27X10065)				$ 54.40
758	WD2X323		Screw 8-32 X 3/8 Sph		Appelez-nous	-
759	WD3M84		Screw - Toekick Bk		Appelez-nous	-
759	WD27M255		Toe Kick Asm - Portable		Appelez-nous	-
759	WG04L00713		Panel Toe Kick Wh   (Replaces: WD27X10066)				$ 37.16
775	WD02X10057		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
801	WD14M11		Arm Hinge Complete Lh		Appelez-nous	-
801	WG04L00064		Arm Hinge Complete Rh   (Replaces: WD14M12)				$ 16.60
802	WG04F00607		Latch Asm   (Replaces: WD13X10003)				$ 50.11
803	WD06X10003		Switch Interlock Asm		Appelez-nous	-
807	WD31M65		Door Inner		Appelez-nous	-
810	WD2X322		Scr 8-18x7/8 Bt		Appelez-nous	-
811	WG04A00417		Rinse Aid Inj Asm   (Replaces: WD12X398)				$ 93.20
815	WD12X10026		Vent		Appelez-nous	-
817	WD1X550		Scr 8-32 Pnt 1/2 S		Appelez-nous	-
818	WD12X10025		Bearing Hinge Arm		Appelez-nous	-
822	WG04F01675		Cover Detergent Cup   (Replaces: WD16M29)				$ 11.44
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 52.67
827	WD2X425		Scr 10-12x1/2 Ac Pnr S		Appelez-nous	-
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X10005)				$ 51.53
829	WG04A04026		Indicator Asm Jet Dry   (Replaces: WD12X409)			Immediately	$ 51.53
837	WD3X749		Spring Timer Lever		Appelez-nous	-
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.57
843	WG04L00216		Gasket   (Replaces: WD08X10014)			Immediately	$ 40.68
845	WD08X10015		Gasket Insert		Appelez-nous	-
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
853	WD16X10008		Cam Timer		Appelez-nous	-
861	WG04L00347		Detergent Timer Lever   (Replaces: WD12X324)				$ 51.53
863	WD12X10020		Vent		Appelez-nous	-
896	WD2M197		Shield Timer		Appelez-nous	-
901	WD34X10308		Panel Control Wh		Appelez-nous	-
902	WD34X10741		Insert Control Panel Wh		Appelez-nous	-
904	WD21X10078		Timer		Appelez-nous	-
906	WD21X10182		Switch Pushbutton		Appelez-nous	-
910	WD09X10023		Knob Timer Wh		Appelez-nous	-
915	WD1X1432		Housing Terminal (black)		Appelez-nous	-
925	WD06X10004		Light Pilot Asm		Appelez-nous	-
926	WD01X10069		Lens		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
946	WD01X10020		Scr 8-18 Bt Pnp11/4 S Zn		Appelez-nous	-
970	WG04L04133		Knob Latch Handle Wh   (Replaces: WD9X352)				$ 3.64
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
