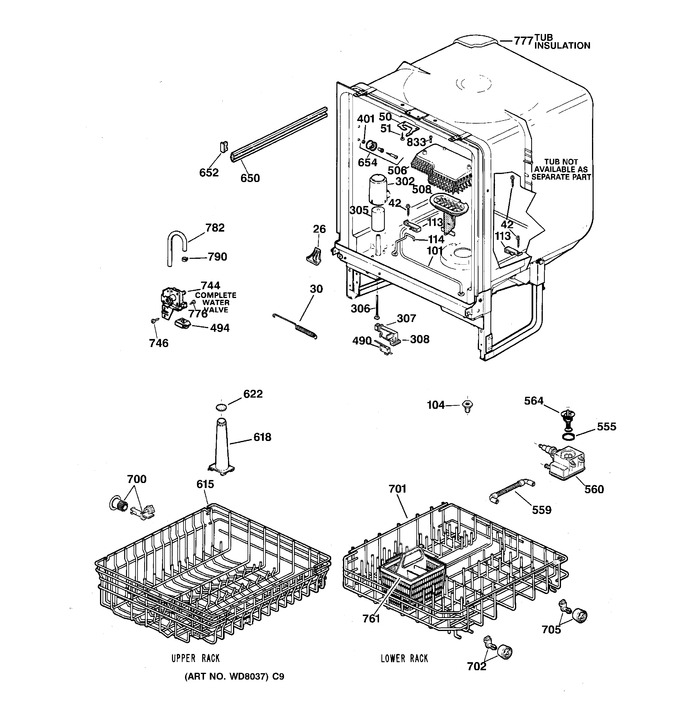

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | WG04F01565 | Baffle Tub Corner Rh (Replaces: WD8X227) |
|
Immediately | $ 10.86 | ||||
| 26 | WG04F00036 | Baffle Tub Corner Lh (Replaces: WD8X228) |
|
Immediately | $ 10.86 | ||||
| 30 | WG04A01292 | Spring Door (Replaces: WD03X10006) |
|
$ 136.29 | |||||
| 30 | WD03X10007 | Spring Door |
|
- | |||||
| 42 | WZ04X0376 | Scr 10-16x3/4 #8 Hx Sstl |
|
- | |||||
| 50 | WG04F04725 | Keeper Latch (Replaces: WD13X67) |
|
$ 11.12 | |||||
| 51 | WZ02X0492 | Scr 10-24x1/2 Tt Trr S |
|
- | |||||
| 101 | WD5M6 | Element Heating Asm D&d |
|
- | |||||
| 104 | WD1X1491 | Nut Tower Heater |
|
- | |||||
| 113 | WD1X1430 | Support Asm |
|
- | |||||
| 114 | WD1X1472 | Support Heater |
|
- | |||||
| 302 | WD12X445 | Float Dome |
|
- | |||||
| 305 | WD12X334 | Flood Float |
|
- | |||||
| 306 | WD12X335 | Float Stem |
|
- | |||||
| 307 | WD12X10023 | Bracket Flood Switch |
|
- | |||||
| 308 | WG04F01663 | Cover Bracket (Replaces: WD12X377) |
|
$ 9.53 | |||||
| 401 | WD3X767 | Washer St Stl |
|
- | |||||
| 490 | WG04F01056 | Switch Flood (Replaces: WD21X479) |
|
$ 14.29 | |||||
| 494 | WD1X1459 | Insulator Hsng Term |
|
- | |||||
| 506 | WG04F01664 | Cover Inlet (Replaces: WD12X417) |
|
$ 59.78 | |||||
| 508 | WG04A00416 | Cap Sump (Replaces: WD12X418) |
|
$ 73.11 | |||||
| 555 | WG04L00217 | Gasket Valve Body (Replaces: WD8X219) |
|
Immediately | $ 6.35 | ||||
| 559 | WD24X221 | Hose Chamber |
|
- | |||||
| 560 | WD22X147 | Valve Check Asm |
|
- | |||||
| 564 | DW10018 | Piston & Nut Asm (Replaces: WD24X220) |
|
Immediately | $ 13.42 | ||||
| 618 | WD28X10008 | Tower Upper Rack |
|
- | |||||
| 622 | WD28X10007 | Cap Tower Upper |
|
- | |||||
| 650 | WG04L00503 | Rack Slide (Replaces: WD30X98) |
|
$ 14.29 | |||||
| 652 | WG04L00086 | Rack Slide End Cap (Replaces: WD12X344) |
|
Immediately | $ 94.28 | ||||
| 654 | WD12X332 | Roller Stud Asm |
|
$ 4.88 | |||||
| 700 | WG04A01222 | 4-rlr Std Asm,upr Rack (Replaces: WD12X383) |
|
Immediately | $ 19.06 | ||||
| 701 | WG04A05238 | Rack Lower Roller Asm (Replaces: WD28X305) |
|
$ 209.83 | |||||
| 702 | WG04L00442 | Roller Asm Lwr Rack Frnt (Replaces: WD12X271) |
|
Immediately | $ 7.24 | ||||
| 705 | WG04A03477 | Roller Asm Lwr Rack Rear (Replaces: WD12X272) |
|
Immediately | $ 67.43 | ||||
| 744 | WD15X93 | Valve Water Inlet (Replaces: WD10M10) |
|
$ 64.56 | |||||
| 746 | WD2X248 | Scr 10-24x3/8 Tt Hex |
|
- | |||||
| 761 | WG04F00380 | Basket Silverware Tm (Replaces: WD28X265) |
|
Immediately | $ 78.84 | ||||
| 776 | WZ05X0222 | Scr 10-32 T Hex 7/16 S |
|
- | |||||
| 777 | WD1X1498 | Insulation Tub |
|
- | |||||
| 782 | WG04F00460 | Water Inlet Hose (Replaces: WD18X202) |
|
$ 14.29 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 833 | WG04A01239 | Scr 8-16x2 Ss (Replaces: WD2X295) |
|
$ 3.97 |
