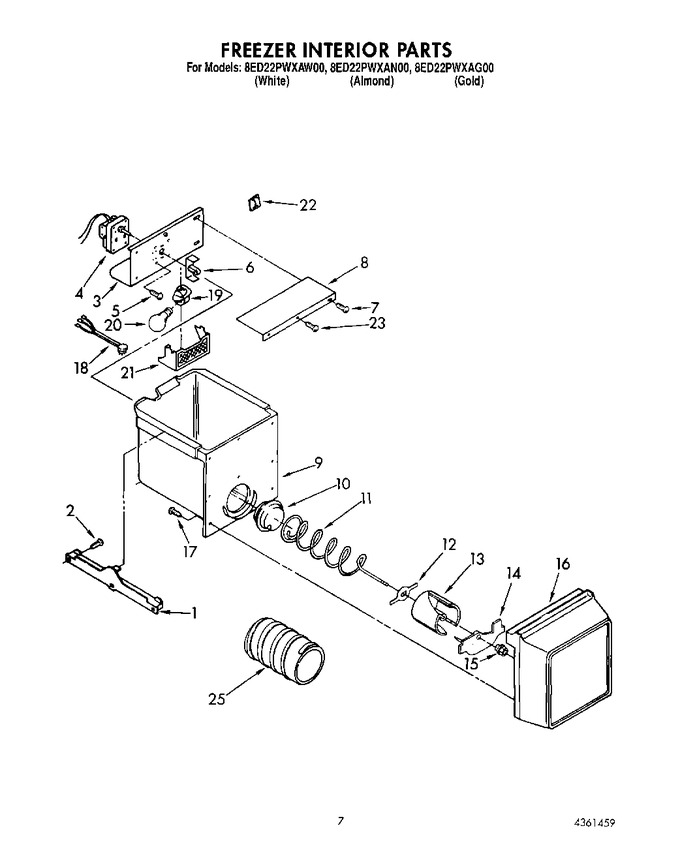

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
1	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
2	718257		Screw   (Replaces: 489100)		Appelez-nous	-
3	WPW10284487		Bracket, Ice Dispenser   (Replaces: 1115208)				$ 114.10
4	2155262		Motor				$ 72.79
5	WP489399		Screw   (Replaces: 489399)				$ 6.95
6	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 23.34
7	WP489478		Screw   (Replaces: 489242)				$ 7.75
8	WPW10284487		Cover, Motor   (Replaces: 1115210)				$ 114.10
9	WP2196089		Ice Container   (Replaces: 2152703)				$ 209.75
10	W10749708		Coupling   (Replaces: 983668)				$ 26.13
11	1115214		Conveyor		Appelez-nous	-
12	4388736		Drive Bar   (Replaces: 946192)				$ 92.35
13	4388736		Drum   (Replaces: 946193)				$ 92.35
14	1115362		Baffle		Appelez-nous	-
15	946195		Nut, Bearing		Appelez-nous	-
16	2148249		Front Cover Ice Container		Appelez-nous	-
17	WP488787		Screw   (Replaces: 488886)				$ 10.58
18	2149193		Wiring Assembly, Ice Dispenser		Appelez-nous	-
19	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 110.16
20	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
21	983359		Lens, Dispenser Light		Appelez-nous	-
22	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 7.75
23	00487294		Screw   (Replaces: 487294)				$ 175.09
25	4317870		Sleeve-auger   (Replaces: 2152021)				$ 129.54

    View Diagram in Separate Window       Print Part List
