SELECT A DIAGRAM

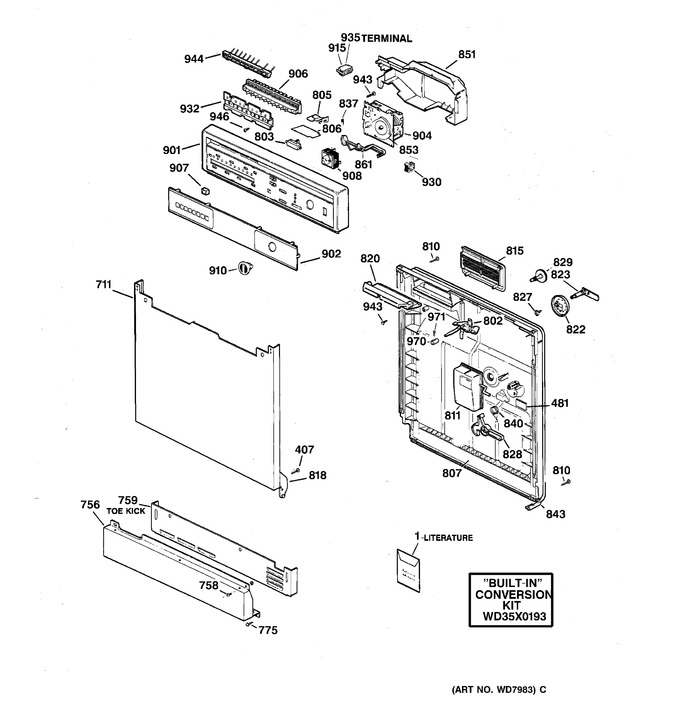

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Motor-pump Mechanism
4 - Case & Hoses
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-5618 | Manual Use & Care |
|
- | |||||
| 1 | 31-3994 | Mini Manual |
|
- | |||||
| 407 | WD3M62 | Screw Hinge |
|
- | |||||
| 481 | WD1X1348 | Deflector |
|
- | |||||
| 678 | WZ05X0219 | Screw |
|
- | |||||
| 711 | WD27M264 | Door Asm Outer Wh |
|
- | |||||
| 756 | WD27M266 | Panel Access & Scr Wh |
|
- | |||||
| 758 | WD2X323 | Screw Serv Panel |
|
- | |||||
| 759 | WD27M255 | Toekick |
|
- | |||||
| 802 | WG04F00607 | Latch Asm (Replaces: WD13X69) |
|
$ 55.68 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 17.47 | ||||
| 805 | WG04F01681 | Switch Leaf Asm (Replaces: WD1X1363) |
|
$ 12.71 | |||||
| 806 | WD12X370 | Shield Switch |
|
- | |||||
| 807 | WD31M58 | Door Inner |
|
- | |||||
| 810 | WD2X322 | Scr 8-18x7/8 Bt |
|
- | |||||
| 811 | WG04A00417 | Rinse Aid Inj Asm (Replaces: WD12X398) |
|
$ 103.56 | |||||
| 815 | WD12X328 | Vent Asm |
|
- | |||||
| 818 | WD14M6 | Arm Hinge Rh |
|
- | |||||
| 818 | WD14M5 | Arm Hinge Lh |
|
- | |||||
| 820 | WD1X1467 | Vent Pad |
|
$ 6.89 | |||||
| 822 | WG04F01675 | Cover Detergent Cup (Replaces: WD16X297) |
|
$ 12.71 | |||||
| 823 | WG02F04142 | Shaft/handle Det Cup (Replaces: WD16X313) |
|
Immediately | $ 58.52 | ||||
| 827 | WD2X425 | Scr 10-12x1/2 Ac Pnr S |
|
- | |||||
| 828 | WG04F00608 | Latch Detergent Cup (Replaces: WD16X292) |
|
$ 57.25 | |||||
| 829 | WG04A04026 | Rinse Aid Disp Asm (Replaces: WD12X409) |
|
Immediately | $ 57.25 | ||||
| 837 | WD3X749 | Spring Timer Lever |
|
- | |||||
| 840 | WG04A01084 | Detergent Trip Spring (Replaces: WD3X764) |
|
$ 3.97 | |||||
| 843 | WD8X229 | Gasket Door Tm |
|
- | |||||
| 851 | WD12X388 | Electrical Escut Cover |
|
- | |||||
| 853 | WD16X316 | Cam Timer |
|
- | |||||
| 861 | WG04L00347 | Detergent Timer Lever (Replaces: WD12X324) |
|
$ 57.25 | |||||
| 901 | WD34X978 | Escutcheon |
|
- | |||||
| 902 | WD34X1135 | Film Appearance |
|
- | |||||
| 904 | WD21X740 | Timer |
|
- | |||||
| 906 | WD21X731 | Switch Pushbutton |
|
- | |||||
| 907 | WD9X314 | Pushbutton |
|
- | |||||
| 908 | WD21X724 | Switch Cycling |
|
- | |||||
| 910 | WD9X310 | Knob Timer |
|
- | |||||
| 915 | WD2M178 | Housing Terminal (black) |
|
- | |||||
| 930 | WD21X692 | Switch Rocker |
|
- | |||||
| 932 | WD2M190 | Bracket Switch |
|
- | |||||
| 935 | WH1M937 | Terminal Special |
|
- | |||||
| 943 | WZ05X0219 | Screw |
|
- | |||||
| 946 | WD2X437 | Screw 4-24 |
|
- | |||||
| 970 | WD9X312 | Knob Latch Handle |
|
- | |||||
| 971 | WZ02X0045 | Screw Latch Knob |
|
- |
