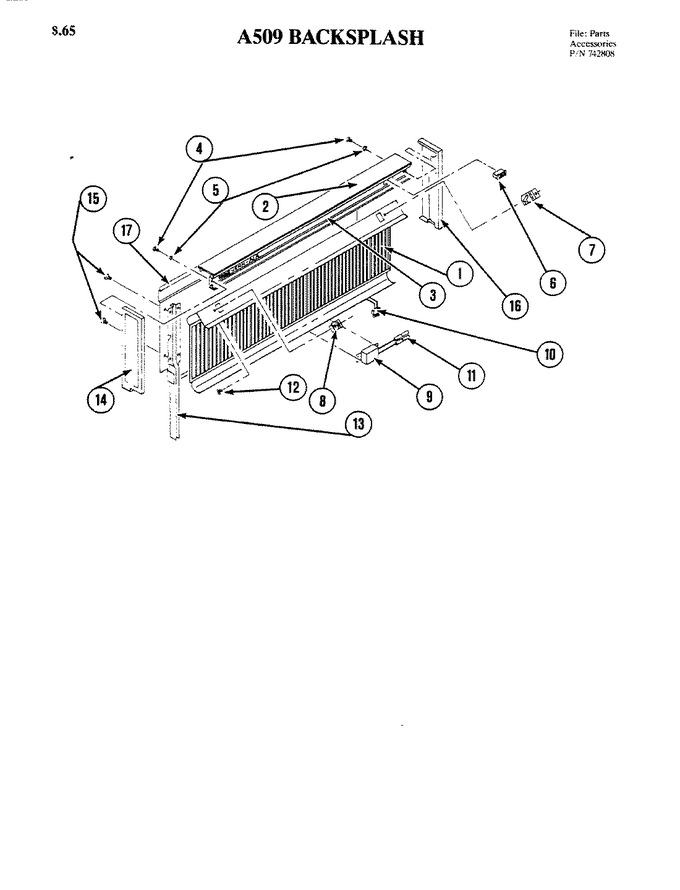

01 - Backsplash (a509)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	702239		Backsplash		Appelez-nous	-
2	700924		Backsplash Extrusion		Appelez-nous	-
3	700925		Insert Extrusion		Appelez-nous	-
4	WP59002061		Screw   (Replaces: Y707172)				$ 8.18
5	715910		Washer, Lock		Appelez-nous	-
6	Y700931		Light Switch		Appelez-nous	-
7	702114		Socket, Light (rt)		Appelez-nous	-
8	DE81-03670A		Socket, Light (lt)   (Replaces: 702115)				$ 404.02
9	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 8.76
9	Y702653		Ballast		Appelez-nous	-
10	700936		Plug		Appelez-nous	-
10	700937		Wire Red		Appelez-nous	-
11	700938		Wire, Red		Appelez-nous	-
11	Y715563		Connector, 1/4`` In-line		Appelez-nous	-
12	DE81-05395A		Harness, Power Supply   (Replaces: 701487)				$ 427.66
13	WPW10339879		Tie, Cable   (Replaces: Y702105)				$ 8.30
13	DE81-04590A		Post Backsplash   (Replaces: 702379)				$ 205.66
14	702377		Cap, End (lt)		Appelez-nous	-
15	WP74004005		Screw   (Replaces: Y700929)				$ 8.66
16	702376		Cap, End (rt)		Appelez-nous	-
17	702378		Cover		Appelez-nous	-
17	Y700932		Florescent Light		Appelez-nous	-
