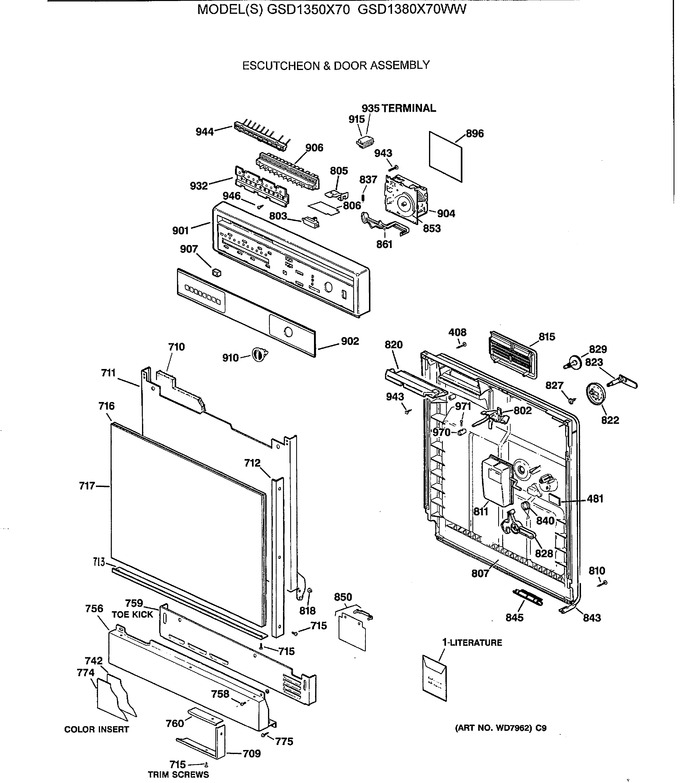

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-4008 | Pm Instruction Instl |
|
- | |||||
| 1 | 31-4199 | Pm Sheet Mini Manual |
|
- | |||||
| 1 | 49-5748 | Pm Manual Use & Care |
|
- | |||||
| 408 | WD2X296 | Screw 8-32x5/8 |
|
- | |||||
| 481 | WD1X1348 | Deflector |
|
- | |||||
| 709 | WD34X973 | Trim Access Wide Bk |
|
- | |||||
| 710 | WD1X1463 | Insulation |
|
- | |||||
| 711 | WD31X304 | Door & Hinge Asm Outer |
|
- | |||||
| 712 | WD34X958 | Trim Door Side Wide Bk |
|
- | |||||
| 713 | WD34X963 | Trim Door Btm Wide Bk |
|
- | |||||
| 715 | WD2X430 | Screw 8-18 5/16 Ph |
|
- | |||||
| 715 | WD2X432 | Screw |
|
- | |||||
| 716 | WD1X1356 | Insulator |
|
- | |||||
| 717 | WD27X498 | Insert Dr Pnl Bk/ha |
|
- | |||||
| 717 | WD27X497 | Insert Door Panel Ad/wh |
|
- | |||||
| 742 | WD1X1393 | Insulator |
|
- | |||||
| 756 | WD27X548 | Panel Access & Scr Bk |
|
- | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 759 | WD27X527 | Toekick Asm |
|
- | |||||
| 760 | WD34X968 | Trim Access Top Wide Bk |
|
- | |||||
| 761 | WG04F00380 | Basket Silverware Asm (Replaces: WD28X318) |
|
Immediately | $ 78.84 | ||||
| 774 | WD27X520 | Insert Serv Panel Ad/wh |
|
- | |||||
| 774 | WD27X521 | Insert Serv Pnl Bk/ha |
|
- | |||||
| 775 | WD2X5166 | Scr 10-16x1/2 Ab Hxw S |
|
- | |||||
| 786 | WD28X319 | Cover Cell |
|
- | |||||
| 802 | WG04F00607 | Latch Asm (Replaces: WD13X69) |
|
$ 55.68 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 17.47 | ||||
| 805 | WG04F01681 | Switch Leaf Asm (Replaces: WD1X1363) |
|
$ 12.71 | |||||
| 806 | WD12X370 | Shield Switch |
|
- | |||||
| 807 | WD31X303 | Door Inner |
|
- | |||||
| 810 | WD2X322 | Scr 8-18x7/8 Bt |
|
- | |||||
| 811 | WG04A00417 | Rinse Aid Inj Asm (Replaces: WD12X398) |
|
$ 103.56 | |||||
| 815 | WD12X328 | Vent Asm |
|
- | |||||
| 818 | WD12X231 | Bearing Hinge Arm |
|
- | |||||
| 820 | WD1X1467 | Vent Pad |
|
$ 6.89 | |||||
| 822 | WG04F01675 | Cover Detergent Cup (Replaces: WD16X297) |
|
$ 12.71 | |||||
| 823 | WG02F04142 | Shaft/handle Det Cup (Replaces: WD16X313) |
|
Immediately | $ 58.52 | ||||
| 827 | WD2X425 | Scr 10-12x1/2 Ac Pnr S |
|
- | |||||
| 828 | WG04F00608 | Latch Detergent Cup (Replaces: WD16X292) |
|
$ 57.25 | |||||
| 829 | WG04A04026 | Rinse Aid Disp Asm (Replaces: WD12X409) |
|
Immediately | $ 57.25 | ||||
| 837 | WD3X749 | Spring Timer Lever |
|
- | |||||
| 840 | WG04A01084 | Detergent Trip Spring (Replaces: WD3X764) |
|
$ 3.97 | |||||
| 843 | WD8X229 | Gasket Door Tm |
|
- | |||||
| 845 | WD8X231 | Gasket Insert |
|
- | |||||
| 850 | WG04L03110 | Drip Shield (Replaces: WD12X338) |
|
$ 17.01 | |||||
| 853 | WD16X322 | Cam Timer |
|
- | |||||
| 861 | WG04L00347 | Detergent Timer Lever (Replaces: WD12X324) |
|
$ 57.25 | |||||
| 896 | WD12X429 | Shield Timer |
|
- | |||||
| 901 | WD34X1198 | Escutcheon |
|
- | |||||
| 901 | WD34X1345 | Escutcheon & Insert Asm |
|
- | |||||
| 902 | WD34X1346 | Film Appearance |
|
- | |||||
| 904 | WD21X797 | Timer |
|
- | |||||
| 906 | WD21X798 | Switch Pushbutton |
|
- | |||||
| 907 | WD9X350 | Pushbutton |
|
- | |||||
| 910 | WD9X358 | Knob Timer Ge |
|
- | |||||
| 915 | WD1X1432 | Housing Terminal (black) |
|
- | |||||
| 915 | WD1X1433 | Housing Terminal |
|
- | |||||
| 932 | WD12X434 | Bracket Switch |
|
- | |||||
| 935 | WD1X1434 | Terminal Special |
|
- | |||||
| 943 | WZ05X0219 | Screw |
|
- | |||||
| 944 | WD6X249 | Lamp Asm |
|
- | |||||
| 946 | WD2X437 | Screw 4-24 |
|
- | |||||
| 970 | WG04L00703 | Knob, Latch Handle (Replaces: WD9X351) |
|
Immediately | $ 6.35 | ||||
| 971 | WZ02X0045 | Screw Latch Knob |
|
- |
