View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

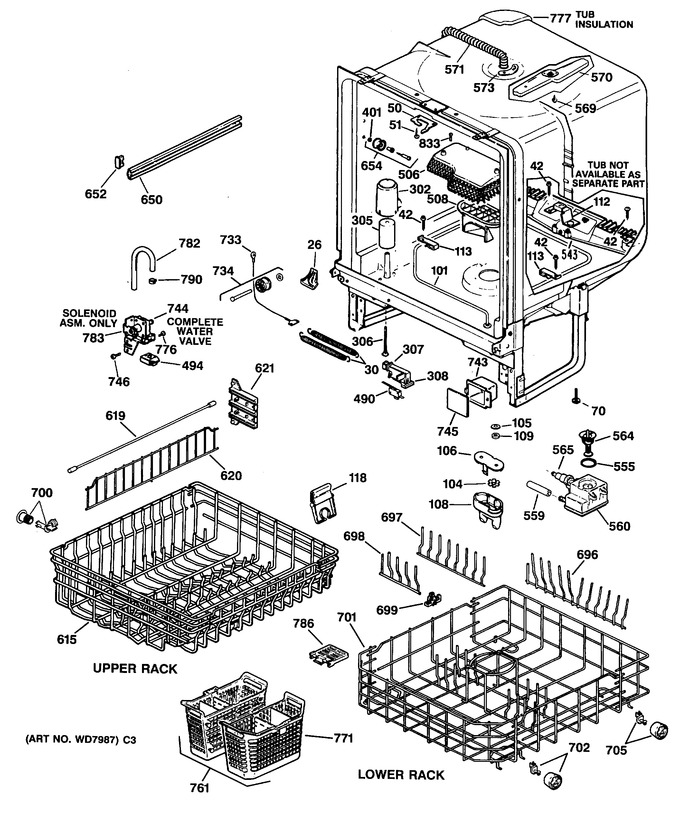

1 - Component Group
2 - Component Group
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | WG04F01565 | Baffle,tub Corner R.h. (Replaces: WD8X227) |
|
Immediately | $ 10.86 | ||||
| 26 | WG04F00036 | Baffle,tub Corner L.h. (Replaces: WD8X228) |
|
Immediately | $ 10.86 | ||||
| 30 | WG04A02190 | Spring Door (blue-30.0) (Replaces: WD1X1333) |
|
$ 66.80 | |||||
| 42 | WZ04X0376 | Scr 10-16x3/4 #8 Hx Sstl |
|
- | |||||
| 50 | WG04F04725 | Keeper Latch (Replaces: WD13X67) |
|
$ 11.12 | |||||
| 51 | WZ02X0492 | Scr 10-24x1/2 Tt Trr S |
|
- | |||||
| 70 | WG04A00321 | Screw Level (Replaces: WD2X320) |
|
$ 15.88 | |||||
| 101 | WD5X69 | Element Heating Asm D&d |
|
- | |||||
| 104 | WD1X1289 | Nut Heater |
|
- | |||||
| 105 | WD1X1168 | Heater Washer |
|
- | |||||
| 106 | WD1X1453 | Base Barrier |
|
- | |||||
| 108 | WD1X1454 | Barrier Heating Element |
|
- | |||||
| 109 | WD8X225 | Grommet Heater |
|
- | |||||
| 112 | WD1X1462 | Support Calrod |
|
$ 9.74 | |||||
| 113 | WD1X1430 | Support Asm |
|
- | |||||
| 118 | WD28X287 | Bag & Hugger Asm |
|
- | |||||
| 302 | WD12X333 | Float Dome |
|
- | |||||
| 305 | WD12X334 | Flood Float |
|
- | |||||
| 306 | WD12X335 | Float Stem |
|
- | |||||
| 307 | WD12X376 | Bracket Flood Switch |
|
- | |||||
| 308 | WD21X377 | Timer |
|
- | |||||
| 401 | WD3X767 | Washer St Stl |
|
- | |||||
| 490 | WG04F01056 | Switch (Replaces: WD21X479) |
|
$ 14.29 | |||||
| 494 | WD1X1459 | Insulator Hsng Term |
|
- | |||||
| 506 | WG04F01664 | Cover Inlet (Replaces: WD12X417) |
|
$ 59.78 | |||||
| 508 | WG04A00416 | Cap Sump (Replaces: WD12X418) |
|
$ 73.11 | |||||
| 543 | WD22X149 | Filter Frame Asm |
|
- | |||||
| 555 | WG04L00217 | Gasket Valve Body (Replaces: WD8X219) |
|
Immediately | $ 6.35 | ||||
| 559 | WD24X221 | Hose Chamber |
|
- | |||||
| 560 | WD22X147 | Valve & Check Asm |
|
- | |||||
| 560 | WD22X146 | Body Valve Asm |
|
- | |||||
| 564 | DW10018 | Piston & Nut Asm (Replaces: WD24X220) |
|
Immediately | $ 13.42 | ||||
| 569 | WD1X1297 | Scr 10-12x5/8 A Phr Ss |
|
- | |||||
| 570 | WW03F00159 | Power Shower Assembly (Replaces: WD22X116) |
|
Immediately | $ 189.48 | ||||
| 571 | WD24X214 | Hose Power Shower |
|
- | |||||
| 573 | WD1X1007 | Nut Strip |
|
- | |||||
| 615 | WD28X296 | Rack Upper & Roller Tm |
|
- | |||||
| 615 | WD28X313 | Rack Upper Complete |
|
- | |||||
| 619 | WD28X314 | Shelf Back |
|
- | |||||
| 620 | WD28X315 | Shelf Cup Metal |
|
- | |||||
| 621 | WD28X316 | Support Cup Shelf |
|
- | |||||
| 650 | WG04L00503 | Rack Slide (Replaces: WD30X98) |
|
$ 14.29 | |||||
| 652 | WG04L00086 | Rack Slide End Cap (Replaces: WD12X344) |
|
Immediately | $ 94.28 | ||||
| 654 | WD12X332 | Roller & Stud Asm |
|
$ 4.88 | |||||
| 696 | WD28X312 | Comb |
|
- | |||||
| 697 | WD28X311 | Comb |
|
- | |||||
| 698 | WD28X310 | Comb |
|
- | |||||
| 699 | WD28X309 | Retainer Comb |
|
- | |||||
| 700 | WG04A01222 | 4-rlr & Std Asm,upr Rack (Replaces: WD12X383) |
|
Immediately | $ 19.06 | ||||
| 701 | WD28X308 | Rack Lower & Roller Asm |
|
- | |||||
| 702 | WD12X440 | Roller Asm |
|
- | |||||
| 705 | WG04A03477 | Roller Asm (Replaces: WD12X441) |
|
Immediately | $ 67.43 | ||||
| 733 | WD7X14 | Cable & Eyelet Asm |
|
- | |||||
| 734 | WD35X183 | Kit Pulley & Shaft |
|
- | |||||
| 743 | WD12X419 | Junction Box |
|
- | |||||
| 744 | WD15X93 | Valve Water Inlet |
|
$ 64.56 | |||||
| 745 | WD12X420 | J-box Cover |
|
- | |||||
| 746 | WD2X248 | Scr 10-24x3/8 Tt Hex |
|
- | |||||
| 761 | WG04F00380 | Basket Silverware Asm (Replaces: WD28X318) |
|
Immediately | $ 78.84 | ||||
| 771 | WD28X317 | Basket |
|
- | |||||
| 776 | WZ05X0222 | Scr 10-32 T Hex 7/16 S |
|
- | |||||
| 777 | WD1X1465 | Insulation Tub |
|
- | |||||
| 782 | WG04F00460 | Water Inlet Hose (Replaces: WD18X202) |
|
$ 14.29 | |||||
| 783 | WD21X536 | Solenoid Asm |
|
- | |||||
| 786 | WD28X319 | Cover Cell |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 833 | WG04A01239 | Scr 8-16x2 Ss (Replaces: WD2X295) |
|
$ 3.97 |
