SELECT A DIAGRAM

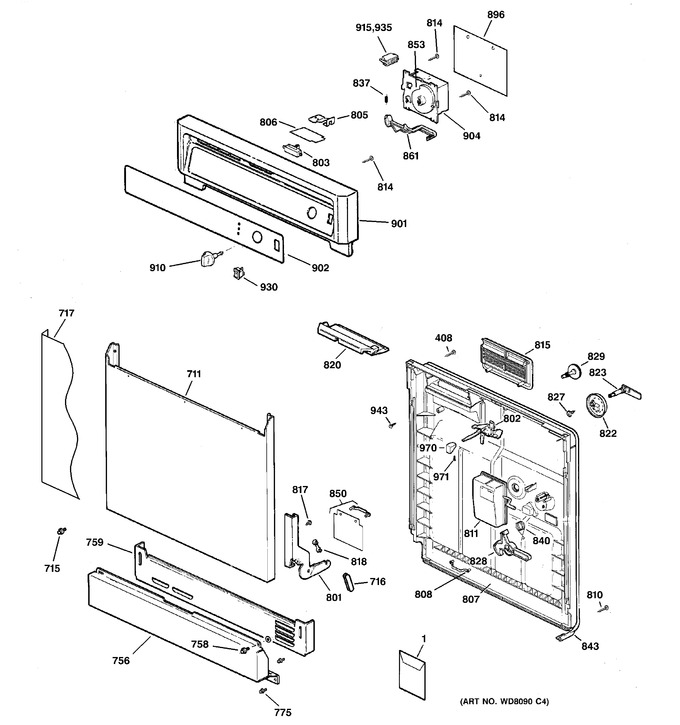

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30426		Pm Sheet Mini Manual		Appelez-nous	-
1	31-30520		Pm Instruction Instal		Appelez-nous	-
1	31030576		Pm Instruction Install		Appelez-nous	-
1	49-5915		Pm Manual Use & Care		Appelez-nous	-
1	WD21X10107		Harness Jumper Asm		Appelez-nous	-
408	WD2X296		Screw 8-32x5/8		Appelez-nous	-
711	WG04L00406		Panel Front Long Wh   (Replaces: WD31X10025)				$ 77.88
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 6.35
717	WD27X10077		Cover Panel - Long Wh		Appelez-nous	-
756	WG04L01506		Panel Access Asm Wh   (Replaces: WD27X10065)				$ 54.40
758	WD02X10054		Screw 8-32 X 5/16 Sph		Appelez-nous	-
759	WG04L00713		Panel Toe Kick Finished   (Replaces: WD27X10066)				$ 41.29
775	WD02X10126		Scr 10-16 Hxw 3/8 S		Appelez-nous	-
775	WD2X5166		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
801	WD14X10008		Arm Hinge Complete Rh		Appelez-nous	-
801	WD14X10007		Arm Hinge Complete Lh		Appelez-nous	-
802	WG04F00607		Latch Asm   (Replaces: WD13X10003)				$ 55.68
803	WW02F00249		Switch Interlock   (Replaces: WD21X557)			Immediately	$ 17.47
805	WG04F01681		Leaf Switch   (Replaces: WD1X1363)				$ 12.71
806	WD12X370		Shield Switch		Appelez-nous	-
807	WG04L00152		Door Inner   (Replaces: WD31X10004)				$ 87.93
808	WD01X10110		Clip Harness		Appelez-nous	-
810	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
811	WG04A00417		Rinse Aid Inj Asm   (Replaces: WD12X398)				$ 103.56
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WD12X10026		Vent		Appelez-nous	-
817	WD1X550		Scr 8-32 Pnt 1/2 S		Appelez-nous	-
817	WD2X445		Scr 10-32 T Hex .7 S		Appelez-nous	-
818	WD12X10025		Bearing Hinge Arm		Appelez-nous	-
820	WD1X1467		Vent Pad				$ 6.89
822	WG04F01675		Cover Detergent Cup   (Replaces: WD16X297)				$ 12.71
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 58.52
827	WD2X425		Scr 10-12x1/2 Ac Pnr S		Appelez-nous	-
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X10005)				$ 57.25
829	WG04A04026		Cap Fill   (Replaces: WD12X10024)			Immediately	$ 57.25
837	WD3X749		Spring Timer Lever		Appelez-nous	-
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.97
843	WG04L00216		Gasket Door   (Replaces: WD08X10057)			Immediately	$ 45.20
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
853	WD16X10007		Cam Timer		Appelez-nous	-
861	WG04L00347		Detergent Timer Lever   (Replaces: WD12X324)				$ 57.25
896	WD12X429		Shield Timer		Appelez-nous	-
901	WD34X10371		Escutcheon		Appelez-nous	-
901	WD34X11008		Escutcheon & Insert Asm		Appelez-nous	-
902	WD34X11009		Insert Escutcheon		Appelez-nous	-
904	WD21X10155		Timer		Appelez-nous	-
910	WG01L00280		Knob Timer   (Replaces: WD09X10025)				$ 6.35
915	WD01X10062		Housing Terminal		Appelez-nous	-
930	WD21X10084		Switch Rocker		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
970	WG04L04133		Knob Latch Handle Wh   (Replaces: WD9X352)				$ 4.04
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
