SELECT A DIAGRAM

01 - Cabinet

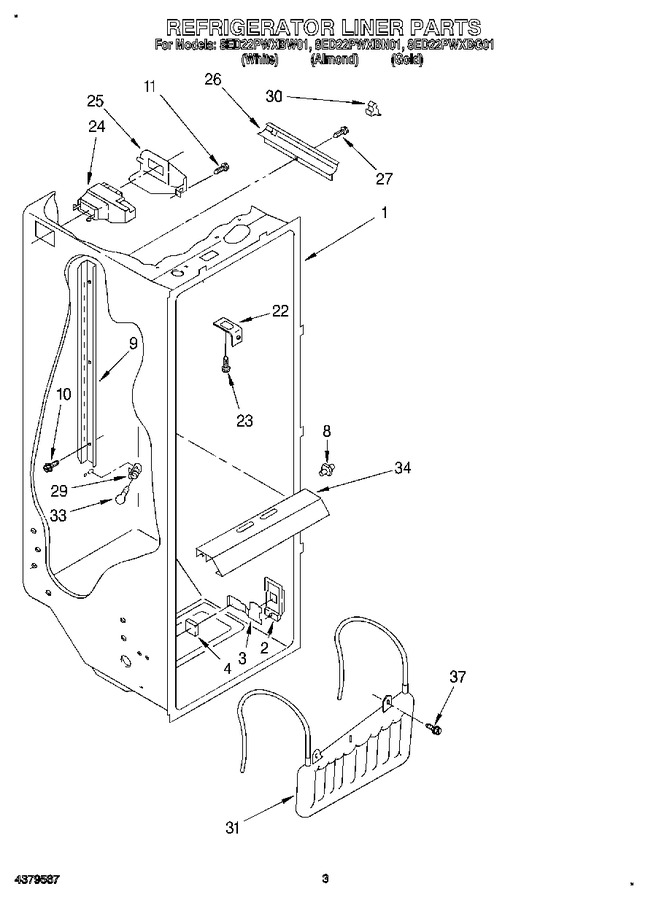

02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Freezer Interior


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	985468		Escutcheon, Meat Pan Control		Appelez-nous	-
3	984102		Slide, Meat Pan Control				$ 5.02
4	992358		Pad, Foam		Appelez-nous	-
8	4388538		Stud (8)   (Replaces: 1110718)			Immediately	$ 31.34
9	1108433		Ladder, Shelf (2)		Appelez-nous	-
10	WP488729		Screw (6)   (Replaces: 487539)			Immediately	$ 7.79
11	WP489478		Screw (2)   (Replaces: 489242)				$ 7.75
22	WP2256085		Bracket, Retainer   (Replaces: 1123919)				$ 34.38
23	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
24	WPW10151374		Air Diffuser Assembly   (Replaces: 2161251)			Immediately	$ 99.78
25	2152019		Cover, Air Diffuser				$ 86.03
26	2150331		Cover, Conduit				$ 24.40
27	W10759522		Screw   (Replaces: 486298)				$ 7.75
29	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
30	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.42
31	WP2256126		Reservoir   (Replaces: 2155290)				$ 168.85
33	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
34	1114624		Light Lens		Appelez-nous	-
37	488280		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
