SELECT A DIAGRAM

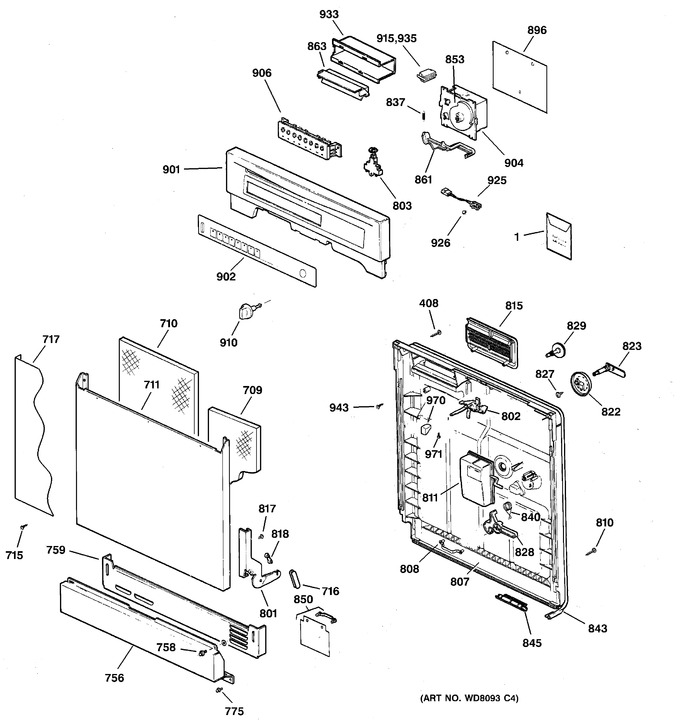

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30389		Pm Sheet Mini Manual		Appelez-nous	-
1	31-30515		Pm Instruction Instal		Appelez-nous	-
1	49-5917		Pm Manual Use & Care		Appelez-nous	-
408	WD2X296		Screw 8-32x5/8		Appelez-nous	-
709	WD01X10084		Insulation		Appelez-nous	-
710	WD01X10083		Insulation		Appelez-nous	-
711	WG04F01726		Panel Front-long Bk   (Replaces: WD31X10024)				$ 86.32
715	WD2X432		Screw 8-18 X 5/16 Bk		Appelez-nous	-
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 6.35
717	WD27X10076		Cover Front-long Bk		Appelez-nous	-
756	WD27X10069		Panel Access Asm Bk		Appelez-nous	-
758	WD02X10056		Screw 8-32 X 5/16 Sph		Appelez-nous	-
758	WD02X10061		Scr 8-18 Pl Hxw 3/8 Ss		Appelez-nous	-
759	WG04L00718		Panel Toe Kick-bk   (Replaces: WD27X10068)				$ 38.12
775	WD02X10057		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
801	WD14X10008		Arm Hinge Complete Rh		Appelez-nous	-
801	WD14X10007		Arm Hinge Complete Lh		Appelez-nous	-
802	WG04F00607		Latch Asm   (Replaces: WD13X10003)				$ 55.68
803	WD06X10003		Switch Interlock Asm		Appelez-nous	-
807	WG04L00152		Door Inner   (Replaces: WD31X10004)				$ 87.93
810	WG04A00158		Scr 8-18 Ab Tr 7/8 S   (Replaces: WD02X10099)				$ 3.97
811	WG04A00417		Rinse Aid Inj Asm   (Replaces: WD12X398)				$ 103.56
815	WD12X10026		Vent		Appelez-nous	-
817	WD1X550		Scr 8-32 Pnt 1/2 S		Appelez-nous	-
818	WD12X10025		Bearing Hinge Arm		Appelez-nous	-
822	WG04F01675		Cover Detergent Cup   (Replaces: WD16X297)				$ 12.71
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 58.52
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X10005)				$ 57.25
829	WG04A04026		Cap Fill   (Replaces: WD12X10024)			Immediately	$ 57.25
837	WD3X749		Spring Timer Lever		Appelez-nous	-
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.97
843	WG04L00216		Gasket   (Replaces: WD08X10014)			Immediately	$ 45.20
845	WD08X10015		Gasket Insert		Appelez-nous	-
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
853	WD16X10008		Cam Timer		Appelez-nous	-
861	WG04L00347		Detergent Timer Lever   (Replaces: WD12X324)				$ 57.25
863	WD12X10020		Vent		Appelez-nous	-
896	WD12X429		Shield Timer		Appelez-nous	-
901	WD34X10739		Panel Control & Insert		Appelez-nous	-
901	WD34X10303		Panel Control		Appelez-nous	-
902	WD34X10748		Insert Control Panel		Appelez-nous	-
904	WD21X10078		Timer		Appelez-nous	-
906	WD21X10092		Switch Pushbutton		Appelez-nous	-
910	WD09X10022		Knob Timer		Appelez-nous	-
915	WD1X1432		Housing Terminal (black)		Appelez-nous	-
925	WD06X10004		Light Pilot Asm		Appelez-nous	-
926	WD01X10069		Lens		Appelez-nous	-
933	WD12X433		Cover Insulating Sw		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
943	WZ05X0219		Screw Escutcheon		Appelez-nous	-
970	WG04L00703		Knob, Latch Handle Bk   (Replaces: WD9X351)			Immediately	$ 6.35
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
