SELECT A DIAGRAM

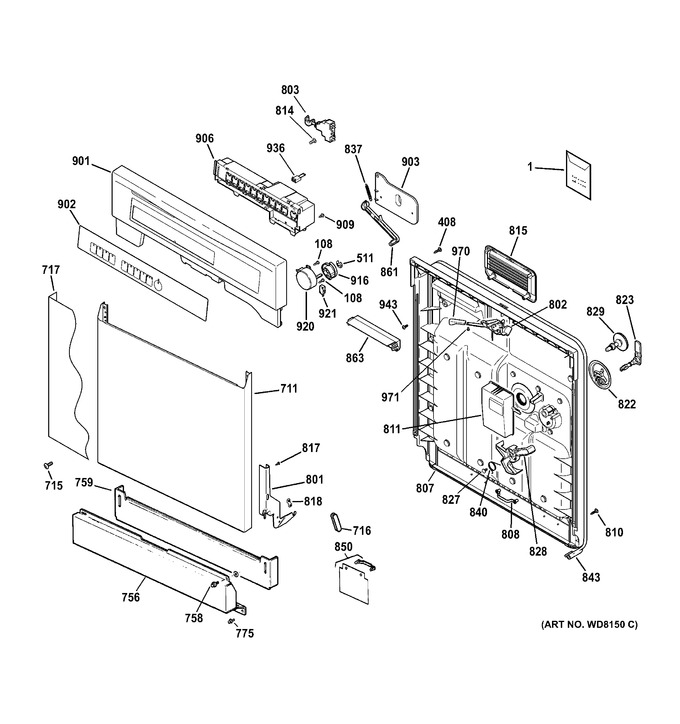

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30215		Pm Instruction Install		Appelez-nous	-
1	31-30576		Pm Instruction Install		Appelez-nous	-
1	49-5990		Pm Manual U&c Pub#495990		Appelez-nous	-
1	31-30455		Pm Sheet Mini Manual		Appelez-nous	-
1	49-55000		Pm Manual Use & Care		Appelez-nous	-
1	31-30599		Pm Instruction Install		Appelez-nous	-
108	WR1X1718		Screw 6-20 Ab Pa 1/2 Ss		Appelez-nous	-
408	WD2X296		Screw 8-32x5/8		Appelez-nous	-
511	WD2X438		E Ring		Appelez-nous	-
711	WG04F01726		Panel Front Long Bk   (Replaces: WD31X10024)				$ 86.32
715	WD2X432		Screw 8-18 X 5/16 Bk		Appelez-nous	-
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 6.35
717	WD27X10155		Cover Panel - Long Ss		Appelez-nous	-
756	WG04L00715		Panel Access Asm Ss   (Replaces: WD27X10153)				$ 40.23
756	WG04L00715		Panel Access   (Replaces: WD27X10224)				$ 40.23
758	WD02X10056		Screw 8-32 X 5/16 Sph		Appelez-nous	-
758	WD02X10162		Scr 8-32 Hxp 1/4 S		Appelez-nous	-
759	WG04L00718		Panel Toe Kick Bk   (Replaces: WD27X10068)				$ 38.12
775	WD02X10127		Scr 10-16 Hxw 3/8 S		Appelez-nous	-
801	WD14X10008		Arm Hinge Complete Rh		Appelez-nous	-
801	WD14X10030		Arm Hinge		Appelez-nous	-
801	WD14X10029		Arm Hinge		Appelez-nous	-
801	WD14X10007		Arm Hinge Complete Lh		Appelez-nous	-
802	WG04F00607		Latch Asm   (Replaces: WD13X10003)				$ 55.68
803	WG04F01066		Switch Interlock Asm   (Replaces: WD06X10002)				$ 182.82
807	WG04L00152		Door Inner   (Replaces: WD31X10004)				$ 87.93
808	WD01X10110		Clip Harness		Appelez-nous	-
810	WG04A00158		Scr 8-18 Ab Tr 7/8 S   (Replaces: WD02X10099)				$ 3.97
811	WG04A00417		Rinse Aid Inj Asm   (Replaces: WD12X398)				$ 103.56
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WD12X10026		Vent		Appelez-nous	-
817	WD1X550		Scr 8-32 Pnt 1/2 S		Appelez-nous	-
817	WD2X445		Scr 10-32 T Hex .7 S		Appelez-nous	-
818	WD12X10025		Bearing Hinge Arm		Appelez-nous	-
822	WG04F01675		Cover Detergent Cup   (Replaces: WD16X297)				$ 12.71
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 58.52
827	WD2X425		Scr 10-12x1/2 Ac Pnr S		Appelez-nous	-
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X10005)				$ 57.25
829	WD12X10037		Indicator Asm Jet Dry		Appelez-nous	-
837	WD3X749		Spring Timer Lever		Appelez-nous	-
837	WG04A01303		Spring Plunger   (Replaces: WD03X10026)				$ 19.06
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.97
843	WG04L00216		Gasket Door   (Replaces: WD08X10057)			Immediately	$ 45.20
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
861	WD12X436		Lever Timer		Appelez-nous	-
863	WD12X10020		Vent		Appelez-nous	-
901	WD34X11020		Escutcheon		Appelez-nous	-
901	WD34X11019		Escutcheon & Insert Asm		Appelez-nous	-
902	WD34X11018		Insert Escutcheon		Appelez-nous	-
903	WD12X10182		Cover Detergent Trip Mec		Appelez-nous	-
906	WD21X10195		Control Asm		Appelez-nous	-
909	WD02X10125		Screw		Appelez-nous	-
916	WD16X319		Cam D Cup		Appelez-nous	-
920	WD26X80		Motor		Appelez-nous	-
921	WD21X767		Switch Sensor		Appelez-nous	-
936	WD21X10205		Plug Asm Model Selector		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
970	WG04L00703		Knob Latch Handle Bk   (Replaces: WD9X351)			Immediately	$ 6.35
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
