1 - Escutcheon & Door Assembly

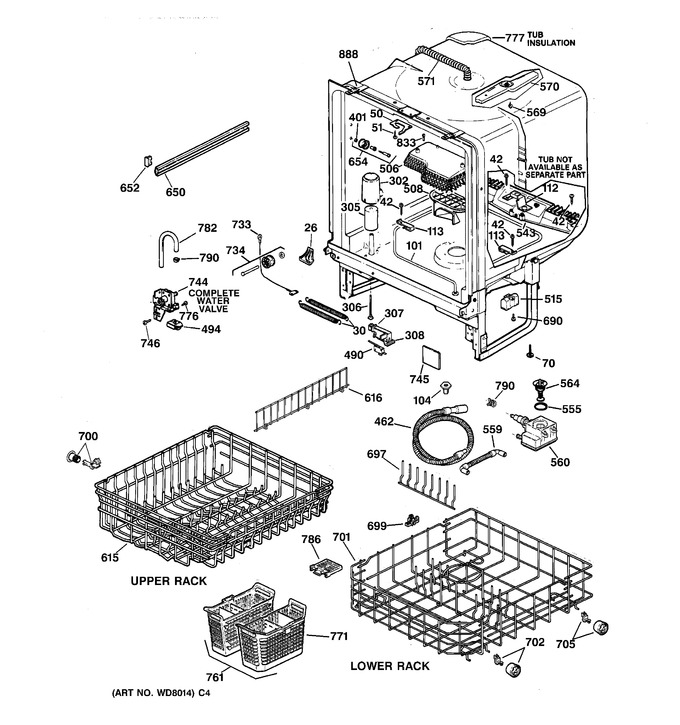

2 - Body Parts
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | WG04F01565 | Baffle,tub Corner R.h. (Replaces: WD8X227) |
|
Immediately | $ 10.86 | ||||
| 26 | WG04F00036 | Baffle,tub Corner L.h. (Replaces: WD8X228) |
|
Immediately | $ 10.86 | ||||
| 30 | WG04A02190 | Spring Door (blue-30.0) (Replaces: WD1X1333) |
|
$ 66.80 | |||||
| 42 | WZ04X0376 | Scr 10-16x3/4 #8 Hx Sstl |
|
- | |||||
| 50 | WG04F04725 | Keeper Latch (Replaces: WD13X67) |
|
$ 11.12 | |||||
| 51 | WZ02X0492 | Scr 10-24x1/2 Tt Trr S |
|
- | |||||
| 70 | WG04A00321 | Screw Level (Replaces: WD2X320) |
|
$ 15.88 | |||||
| 101 | WD5M7 | Element Heating Asm |
|
- | |||||
| 104 | WD1X1491 | Nut Tower Heater |
|
- | |||||
| 112 | WD1X1462 | Support Calrod |
|
$ 9.74 | |||||
| 113 | WD1X1430 | Support Asm |
|
- | |||||
| 302 | WD12X445 | Float Dome |
|
- | |||||
| 305 | WD12X334 | Flood Float |
|
- | |||||
| 306 | WD12X335 | Float Stem |
|
- | |||||
| 307 | WD12X376 | Bracket Flood Switch |
|
- | |||||
| 308 | WG04F01663 | Cover Bracket (Replaces: WD12X377) |
|
$ 9.53 | |||||
| 401 | WD3X767 | Washer St Stl |
|
- | |||||
| 462 | WD24X219 | Drain Tube Asm |
|
- | |||||
| 490 | WG04F01056 | Switch (Replaces: WD21X479) |
|
$ 14.29 | |||||
| 494 | WD1X1459 | Insulator Hsng Term |
|
- | |||||
| 506 | WG04F01664 | Cover Inlet (Replaces: WD12X417) |
|
$ 59.78 | |||||
| 508 | WG04A00416 | Cap Sump (Replaces: WD12X418) |
|
$ 73.11 | |||||
| 515 | WD21X770 | Capacitor |
|
- | |||||
| 543 | WD22X149 | Filter Frame Asm. |
|
- | |||||
| 555 | WG04L00217 | Gasket Valve Body (Replaces: WD8X219) |
|
Immediately | $ 6.35 | ||||
| 559 | WD24X221 | Hose Chamber |
|
- | |||||
| 560 | WD22X147 | Valve & Check Asm |
|
- | |||||
| 564 | DW10018 | Piston & Nut Asm (Replaces: WD24X220) |
|
Immediately | $ 13.42 | ||||
| 569 | WD2X448 | Scr 8-16 Abhw .315 Sn |
|
- | |||||
| 570 | WW03F00159 | Power Shower Asm (Replaces: WD22X151) |
|
Immediately | $ 189.48 | ||||
| 571 | WD24X214 | Hose Power Shower |
|
- | |||||
| 615 | WD28X296 | Rack Upper & Roller Tm |
|
- | |||||
| 616 | WD28X297 | Shelf Cup |
|
- | |||||
| 650 | WG04L00503 | Rack Slide (Replaces: WD30X98) |
|
$ 14.29 | |||||
| 652 | WG04L00086 | Rack Slide End Cap (Replaces: WD12X344) |
|
Immediately | $ 94.28 | ||||
| 654 | WD12X332 | Roller & Stud Asm |
|
$ 4.88 | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 697 | WD28X333 | Comb Ranger |
|
- | |||||
| 699 | WD28X309 | Retainer Comb |
|
- | |||||
| 700 | WG04A01222 | 4-rlr & Std Asm,upr Rack (Replaces: WD12X383) |
|
Immediately | $ 19.06 | ||||
| 701 | WD28X307 | Rack Lower & Roller Asm |
|
- | |||||
| 702 | WG04L00442 | Roller Asm Lwr Rack Frnt (Replaces: WD12X271) |
|
Immediately | $ 7.24 | ||||
| 705 | WG04A03477 | Roller Asm Lwr Rack Rear (Replaces: WD12X272) |
|
Immediately | $ 67.43 | ||||
| 733 | WD7X14 | Cable & Eyelet Asm |
|
- | |||||
| 734 | WD35X183 | Kit Pulley & Shaft |
|
- | |||||
| 744 | WD15X93 | Valve Water Inlet |
|
$ 64.56 | |||||
| 745 | WD1X816 | Cover Term Box |
|
- | |||||
| 746 | WD2X248 | Scr 10-24x3/8 Tt Hex |
|
- | |||||
| 761 | WG04F00380 | Basket Silverware Asm (Replaces: WD28X318) |
|
Immediately | $ 78.84 | ||||
| 771 | WD28X317 | Basket |
|
- | |||||
| 776 | WZ05X0222 | Scr 10-32 T Hex 7/16 S |
|
- | |||||
| 777 | WD1X1465 | Insulation Tub |
|
- | |||||
| 782 | WG04F00460 | Water Inlet Hose (Replaces: WD18X202) |
|
$ 14.29 | |||||
| 786 | WD28X319 | Cover Cell |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 833 | WG04A01239 | Scr 8-16x2 Ss (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 888 | WD35X200 | Kit, Mounting Bracket |
|
- |
