View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

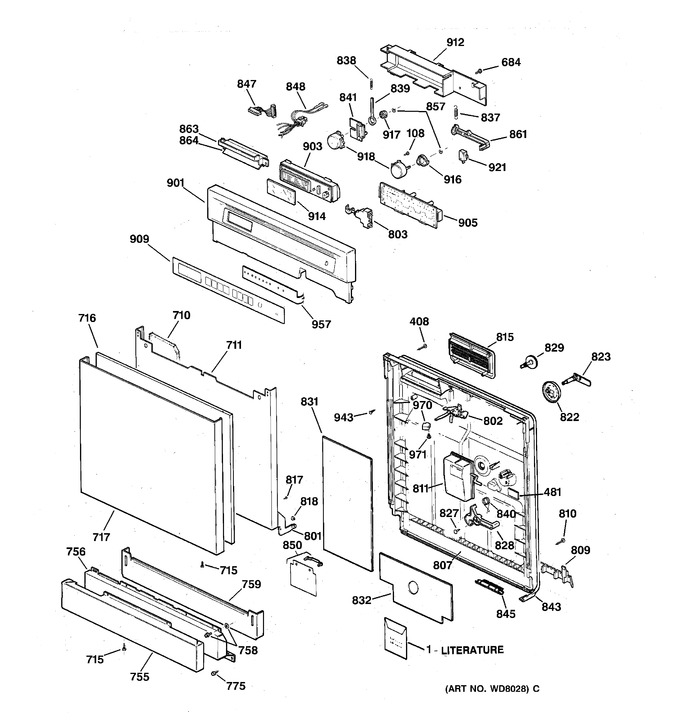

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-30106 | Pm Instruction Instal |
|
- | |||||
| 1 | 49-5740 | Instruction Hugger |
|
- | |||||
| 1 | 49-5829 | Pm Manual Use & Care |
|
$ 1,076.88 | |||||
| 1 | 31-4133 | Pm Sheet Mini Manual |
|
- | |||||
| 30 | WD2X551 | Spring Door (red - 21.5) |
|
- | |||||
| 108 | WR1X1718 | Screw |
|
- | |||||
| 408 | WD2X296 | Screw 8-32x5/8 |
|
- | |||||
| 481 | WD1X1348 | Deflector |
|
- | |||||
| 684 | WZ04X0417 | Screw |
|
- | |||||
| 710 | WD01X10001 | Insulation |
|
- | |||||
| 711 | WD31X313 | Panel Front Asm |
|
- | |||||
| 715 | WD2X434 | Screw 8-18 X 5/16 Ad |
|
- | |||||
| 716 | WD1X1481 | Insulator Color Pack |
|
- | |||||
| 717 | WD27X551 | Panel Decorative |
|
- | |||||
| 755 | WD2X430 | Screw 8-18 5/16 Ph |
|
- | |||||
| 755 | WD27X553 | Panel Decorative Access |
|
- | |||||
| 756 | WD27X547 | Panel Access & Scr Asm |
|
- | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 759 | WD27X552 | Toekick Asm |
|
- | |||||
| 775 | WD2X5166 | Scr 10-16x1/2 Ab Hxw S |
|
- | |||||
| 801 | WD14X10001 | Arm Hinge Complete - Lh |
|
- | |||||
| 801 | WD14X10002 | Arm Hinge Complete - Rh |
|
- | |||||
| 802 | WG04F00607 | Latch Asm (Replaces: WD13X69) |
|
$ 50.11 | |||||
| 803 | WD6X245 | Switch Interlock Asm |
|
- | |||||
| 807 | WD31X303 | Door Inner |
|
- | |||||
| 809 | WD31X312 | Door Extension |
|
- | |||||
| 810 | WD2X322 | Scr 8-18x7/8 Bt |
|
- | |||||
| 811 | WG04A00417 | Rinse Aid Inj Asm (Replaces: WD12X398) |
|
$ 93.20 | |||||
| 815 | WD12X328 | Vent Asm |
|
- | |||||
| 817 | WD2X445 | Scr 10-32 T Hex .7 S |
|
- | |||||
| 817 | WD1X550 | Scr 8-32 Pnt 1/2 S |
|
- | |||||
| 818 | WD12X231 | Bearing Hinge Arm |
|
- | |||||
| 822 | WG04F01675 | Cover Detergent Cup (Replaces: WD16X297) |
|
$ 11.44 | |||||
| 823 | WG02F04142 | Shaft/handle Det Cup (Replaces: WD16X313) |
|
Immediately | $ 52.67 | ||||
| 827 | WD2X425 | Scr 10-12x1/2 Ac Pnr S |
|
- | |||||
| 828 | WD16X318 | Latch D Cup |
|
- | |||||
| 829 | WG04A04026 | Rinse Aid Disp Asm (Replaces: WD12X409) |
|
Immediately | $ 51.53 | ||||
| 837 | WD3X749 | Spring Timer Lever |
|
- | |||||
| 838 | WD3X776 | Spring Vent |
|
- | |||||
| 839 | WD1X1477 | Linkage Vent |
|
- | |||||
| 840 | WG04A01084 | Detergent Trip Spring (Replaces: WD3X764) |
|
$ 3.57 | |||||
| 841 | WD1X1478 | Switch Support |
|
- | |||||
| 843 | WD8X229 | Gasket Door Tm |
|
- | |||||
| 845 | WD8X231 | Gasket Insert |
|
- | |||||
| 847 | WD12X438 | Harness Power/signal |
|
- | |||||
| 848 | WD12X439 | Harness-ac |
|
- | |||||
| 850 | WD12X10001 | Shield Drip |
|
- | |||||
| 857 | WD12X192 | Retainer |
|
- | |||||
| 861 | WD12X436 | Lever Timer |
|
- | |||||
| 863 | WD1X1480 | Vent Asm |
|
- | |||||
| 864 | WD1X1488 | Flap Vent |
|
- | |||||
| 901 | WD34X1178 | Escutcheon Asm. P.s. |
|
- | |||||
| 903 | WD21X780 | Signal Board Hsg Asm |
|
- | |||||
| 905 | WD21X766 | Power Board |
|
- | |||||
| 909 | WD34X1177 | Insert Film |
|
- | |||||
| 912 | WD12X437 | Housing Power Board |
|
- | |||||
| 914 | WD34X1179 | Filter Display |
|
- | |||||
| 916 | WD16X319 | Cam D Cup |
|
- | |||||
| 917 | WD16X320 | Cam Actuator Vent |
|
- | |||||
| 918 | WD26X80 | Motor |
|
- | |||||
| 921 | WD21X767 | Switch Sensor |
|
- | |||||
| 943 | WZ05X0219 | Screw |
|
- | |||||
| 957 | WD21X773 | Switch Membrane |
|
- | |||||
| 970 | WD9X348 | Knob Latch Handle |
|
- | |||||
| 971 | WZ02X0045 | Screw Latch Knob |
|
- |
