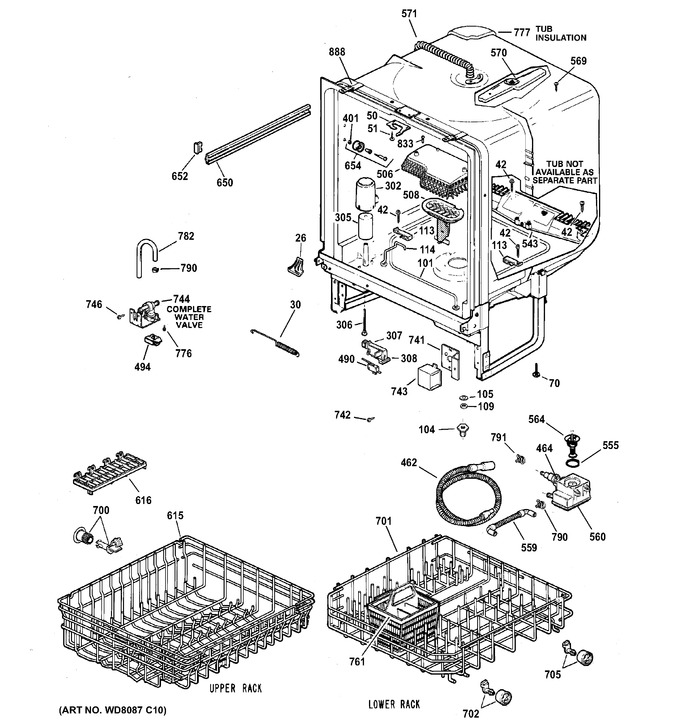

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 26 | WG04F01565 | Baffle Tub Corner Rh (Replaces: WD8X227) |
|
Immediately | $ 10.86 | ||||
| 26 | WG04F00036 | Baffle Tub Corner Lh (Replaces: WD8X228) |
|
Immediately | $ 10.86 | ||||
| 30 | WG04A01292 | Spring Door (Replaces: WD03X10006) |
|
$ 136.29 | |||||
| 30 | WG04A01299 | Spring Door (Replaces: WD03X10021) |
|
$ 95.41 | |||||
| 30 | WD03X10007 | Spring Door |
|
- | |||||
| 42 | WD02X10110 | Scr #8-3/4 L Hx Hd Ss |
|
- | |||||
| 50 | WG04F04725 | Keeper Latch (Replaces: WD13X67) |
|
$ 11.12 | |||||
| 51 | WD02X10066 | Scr 10-24x1/2 Tt Trr S |
|
- | |||||
| 70 | WG04A00321 | Screw Leveling (Replaces: WD2X320) |
|
$ 15.88 | |||||
| 101 | WD5X70 | Element Heating Asm D&d |
|
- | |||||
| 104 | WD01X10070 | Nut Tower Heater |
|
- | |||||
| 104 | WD01X10256 | Nut Tower Heater |
|
- | |||||
| 105 | WD1X1168 | Heater Washer |
|
- | |||||
| 109 | WD8X225 | Grommet Heater |
|
- | |||||
| 113 | WD01X10086 | Support Calrod Asm |
|
- | |||||
| 114 | WD1X1472 | Support Heater |
|
- | |||||
| 302 | WD12X445 | Float Dome |
|
- | |||||
| 305 | WD12X334 | Flood Float |
|
- | |||||
| 306 | WD12X335 | Float Stem |
|
- | |||||
| 307 | WD12X10023 | Bracket Flood Switch |
|
- | |||||
| 308 | WG04F01663 | Cover Bracket (Replaces: WD12X377) |
|
$ 9.53 | |||||
| 401 | WD3X767 | Washer St Stl |
|
- | |||||
| 462 | WG04F01563 | Drain Tube Asm (Replaces: WD24X10014) |
|
Immediately | $ 68.11 | ||||
| 464 | WG04F00442 | Flapper Check Valve (Replaces: WD01X10177) |
|
$ 9.53 | |||||
| 490 | WG04F01056 | Switch Flood (Replaces: WD21X479) |
|
$ 14.29 | |||||
| 494 | WD21X10257 | Housing Terminal |
|
- | |||||
| 494 | WD01X10258 | Housing Terminal |
|
- | |||||
| 506 | WG04F01664 | Cover Inlet (Replaces: WD12X417) |
|
$ 59.78 | |||||
| 508 | WG04A00416 | Cap Sump (Replaces: WD12X418) |
|
$ 73.11 | |||||
| 543 | WD22X149 | Filter Frame Asm |
|
- | |||||
| 555 | WG04L00217 | Gasket Valve Body (Replaces: WD8X219) |
|
Immediately | $ 6.35 | ||||
| 559 | WD24X10015 | Hose Chamber |
|
$ 6.70 | |||||
| 560 | WD22X10024 | Body Valve & Check Asm |
|
- | |||||
| 564 | DW10018 | Piston & Nut Asm (Replaces: WD24X220) |
|
Immediately | $ 13.42 | ||||
| 569 | WD02X10114 | Scr 8-18 Pl Hxw 3/8 S |
|
- | |||||
| 570 | WW03F00159 | Sprayarm Asm 3rd Level (Replaces: WD28X10103) |
|
Immediately | $ 189.48 | ||||
| 571 | WD24X214 | Hose Power Shower |
|
- | |||||
| 615 | WG04F12728 | Rack Upper & Roller Asm (Replaces: WD28X10006) |
|
Immediately | $ 236.95 | ||||
| 616 | WD28X297 | Shelf Cup |
|
- | |||||
| 650 | WG04L00503 | Rack Slide (Replaces: WD30X98) |
|
$ 14.29 | |||||
| 652 | WG04L00086 | Rack Slide End Cap (Replaces: WD12X344) |
|
Immediately | $ 94.28 | ||||
| 654 | WD12X332 | Roller Stud Asm |
|
$ 4.88 | |||||
| 700 | WG04A01222 | 4-rlr Std Asm,upr Rack (Replaces: WD12X383) |
|
Immediately | $ 19.06 | ||||
| 701 | WG04A05238 | Rack Lower Roller Asm (Replaces: WD28X305) |
|
$ 209.83 | |||||
| 702 | WG04L00442 | Roller Asm Lwr Rack Frnt (Replaces: WD12X271) |
|
Immediately | $ 7.24 | ||||
| 705 | WG04A03477 | Roller Lower Rack (Replaces: WD12X10074) |
|
Immediately | $ 67.43 | ||||
| 705 | WG04A03477 | Roller Asm Lwr Rack Rear (Replaces: WD12X272) |
|
Immediately | $ 67.43 | ||||
| 741 | WD12X447 | Bracket J-box |
|
- | |||||
| 742 | WD2X5166 | Scr 10-16x1/2 Ab Hxw S |
|
- | |||||
| 743 | WG02L01023 | Cover Juction Box (Replaces: WD12X448) |
|
$ 20.65 | |||||
| 744 | WG04F01376 | Water Valve Inlet (Replaces: WD15X10003) |
|
Immediately | $ 140.21 | ||||
| 746 | WD2X248 | Scr 10-24x3/8 Tt Hex |
|
- | |||||
| 761 | WG04F00380 | Basket Silverware Tm (Replaces: WD28X265) |
|
Immediately | $ 78.84 | ||||
| 776 | WZ05X0222 | Scr 10-32 T Hex 7/16 S |
|
- | |||||
| 777 | WG04F07439 | Insulation Tub Blanket (Replaces: WD01X10262) |
|
$ 11.91 | |||||
| 782 | WG04F00460 | Water Inlet Hose (Replaces: WD18X202) |
|
$ 14.29 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 790 | WD01X10065 | Clamp Hose |
|
- | |||||
| 791 | WD01X10071 | Clamp Hose |
|
- | |||||
| 833 | WG04A01239 | Scr 8-16x2 Ss (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 888 | WD35X200 | Bracket Counter |
|
- |
