SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Motor-pump Mechanism

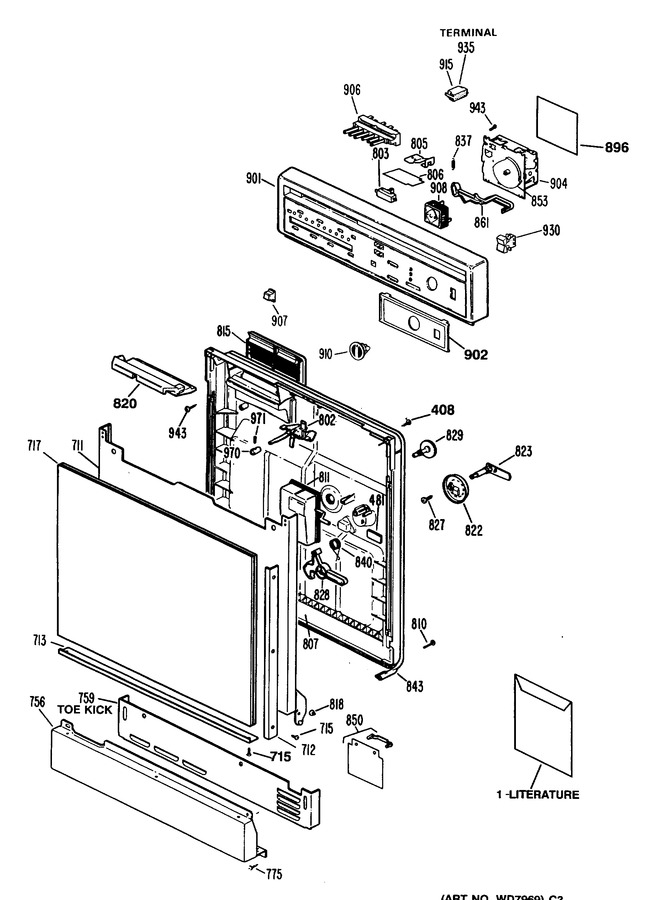

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-5678		Use & Care Manual		Appelez-nous	-
1	31-3527		Pm Instruction Instal		Appelez-nous	-
1	31-4109		Pm Sheet Mini Manual		Appelez-nous	-
408	WD2X296		Screw 8-32x5/8		Appelez-nous	-
481	WD1X1348		Deflector		Appelez-nous	-
711	WD31X304		Door & Hinge Asm Outer		Appelez-nous	-
712	WD34X962		Trim Door Side Nar Wh		Appelez-nous	-
713	WD34X967		Trim Door Btm Nar Wh		Appelez-nous	-
715	WD2X433		Screw 8-18 X 5/16 Wh		Appelez-nous	-
717	WD27X497		Insert Door Panel Ad/wh		Appelez-nous	-
756	WD27X549		Panel Access & Scr Wh		Appelez-nous	-
758	WD2X323		Screw 8-32 X 3/8 Sph		Appelez-nous	-
759	WD27X542		Toekick Wh		Appelez-nous	-
775	WD2X435		Screw 10-16x5/8 Hxp Chr		Appelez-nous	-
775	WD2X5166		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
802	WG04F00607		Latch Asm   (Replaces: WD13X69)				$ 55.68
803	WW02F00249		Switch Interlock   (Replaces: WD21X557)			Immediately	$ 17.47
805	WG04F01681		Switch Leaf Asm   (Replaces: WD1X1363)				$ 12.71
806	WD12X370		Shield Switch		Appelez-nous	-
807	WD31X303		Door Inner		Appelez-nous	-
810	WD2X322		Scr 8-18x7/8 Bt		Appelez-nous	-
811	WG04A00417		Rinse Aid Inj Asm   (Replaces: WD12X398)				$ 103.56
815	WD12X328		Vent Asm		Appelez-nous	-
818	WD12X231		Bearing Hinge Arm		Appelez-nous	-
820	WD1X1467		Vent Pad				$ 6.89
822	WG04F01675		Cover Detergent Cup   (Replaces: WD16X297)				$ 12.71
823	WG02F04142		Shaft/handle Det Cup   (Replaces: WD16X313)			Immediately	$ 58.52
827	WD2X425		Scr 10-12x1/2 Ac Pnr S		Appelez-nous	-
828	WG04F00608		Latch Detergent Cup   (Replaces: WD16X292)				$ 57.25
829	WD12X392		Cap Fill Tm		Appelez-nous	-
837	WD3X749		Spring Timer Lever		Appelez-nous	-
840	WG04A01084		Detergent Trip Spring   (Replaces: WD3X764)				$ 3.97
843	WD8X229		Gasket Door Tm		Appelez-nous	-
850	WG04L03110		Drip Shield   (Replaces: WD12X338)				$ 17.01
853	WD16X308		Cam Timer		Appelez-nous	-
861	WG04L00347		Detergent Timer Lever   (Replaces: WD12X324)				$ 57.25
896	WD1X1476		Button, Plug		Appelez-nous	-
896	WD12X429		Shield Timer		Appelez-nous	-
901	WD34X1057		Esctucheon		Appelez-nous	-
902	WD34X1172		Insert Aluminum		Appelez-nous	-
904	WD21X761		Timer		Appelez-nous	-
910	WD9X340		Knob Timer		Appelez-nous	-
915	WD1X1432		Housing Terminal (black)		Appelez-nous	-
930	WG04F04866		Switch Rocker   (Replaces: WD21X702)				$ 12.71
935	WD1X1434		Terminal Special		Appelez-nous	-
943	WZ05X0219		Screw		Appelez-nous	-
970	WD9X311		Knob Latch Handle		Appelez-nous	-
971	WZ02X0045		Screw Latch Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
