SELECT A DIAGRAM

1 - Escutcheon & Door Assembly

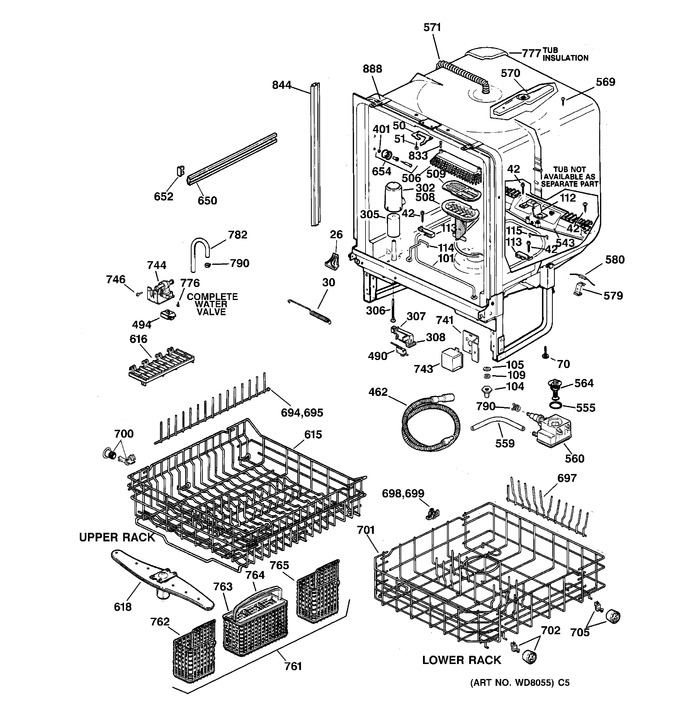

2 - Body Parts


3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
26	WG04F00036		Baffle Tub Corner Lh   (Replaces: WD8X228)			Immediately	$ 10.86
26	WG04F01565		Baffle Tub Corner Rh   (Replaces: WD8X227)			Immediately	$ 10.86
30	WD03X10007		Spring Door		Appelez-nous	-
42	WZ04X0376		Scr 10-16x3/4 #8 Hx Sstl		Appelez-nous	-
50	WG04F04725		Keeper Latch   (Replaces: WD13X67)				$ 11.12
51	WZ02X0492		Scr 10-24x1/2 Tt Trr S		Appelez-nous	-
70	WG04A00321		Screw Level   (Replaces: WD2X320)				$ 15.88
101	WD05X10003		Element Heating Asm D&d		Appelez-nous	-
104	WD1X1491		Nut Tower Heater		Appelez-nous	-
105	WD1X1168		Heater Washer		Appelez-nous	-
109	WD8X225		Grommet Heater		Appelez-nous	-
112	WD1X1462		Support Calrod				$ 9.74
113	WD1X1430		Support Asm		Appelez-nous	-
115	WD01X10067		Wire Calrod Support		Appelez-nous	-
115	WD01X10066		Wire Calrod Support		Appelez-nous	-
302	WD12X445		Float Dome		Appelez-nous	-
305	WD12X334		Flood Float		Appelez-nous	-
306	WD12X335		Float Stem		Appelez-nous	-
307	WD12X10023		Bracket Flood Switch		Appelez-nous	-
308	WG04F01663		Cover Bracket   (Replaces: WD12X377)				$ 9.53
401	WD3X767		Washer St Stl		Appelez-nous	-
462	WG04F01563		Hose Drain   (Replaces: WD24X10014)			Immediately	$ 68.11
490	WG04F01056		Switch Flood   (Replaces: WD21X479)				$ 14.29
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
506	WD12X10040		Cover Inlet		Appelez-nous	-
508	WD22X10021		Filter Sump		Appelez-nous	-
509	WD22X10020		Cover Sump		Appelez-nous	-
543	WD22X149		Filter Frame Asm		Appelez-nous	-
555	WG04L00217		Gasket Valve Body   (Replaces: WD8X219)			Immediately	$ 6.35
559	WD24X10015		Hose Chamber				$ 6.70
560	WD22X10018		Body Valve & Check Asm		Appelez-nous	-
564	DW10018		Piston & Nut Asm   (Replaces: WD24X220)			Immediately	$ 13.42
569	WD2X448		Scr 8-16 Abhw .315 Sn		Appelez-nous	-
570	WW03F00159		Sprayarm Asm 3rd Level   (Replaces: WD28X10043)			Immediately	$ 189.48
571	WD24X222		Hose Power Shower		Appelez-nous	-
579	WD01X10021		Clip Sensor		Appelez-nous	-
580	WD21X10023		Thermistor		Appelez-nous	-
615	WD28X10049		Rack Upper & Roller Asm		Appelez-nous	-
616	WD28X297		Shelf Cup		Appelez-nous	-
618	WD22X10022		Sprayarm Asm Mid Lvl		Appelez-nous	-
650	WG04L00503		Rack Slide   (Replaces: WD30X98)				$ 14.29
652	WG04L00086		Rack Slide End Cap   (Replaces: WD12X344)			Immediately	$ 94.28
654	WD12X332		Roller Stud Asm				$ 4.88
695	WD28X10046		Comb Flex 15 Tine		Appelez-nous	-
697	WD28X10045		Comb Flex 7 Tine		Appelez-nous	-
699	WD28X10019		Retainer Comb Right		Appelez-nous	-
700	WG04A01222		4-rlr Std Asm,upr Rack   (Replaces: WD12X383)			Immediately	$ 19.06
701	WG04A05238		Rack Lower & Roller Asm   (Replaces: WD28X10054)				$ 209.83
702	WG04L00442		Roller Asm Lwr Rack Frnt   (Replaces: WD12X271)			Immediately	$ 7.24
705	WG04A03477		Roller Asm Lwr Rack Rear   (Replaces: WD12X272)			Immediately	$ 67.43
741	WD12X447		Bracket J-box		Appelez-nous	-
743	WG02L01023		Cover Juction Box   (Replaces: WD12X448)				$ 20.65
744	WD15X96		Valve Water Inlet		Appelez-nous	-
746	WD2X248		Scr 10-24x3/8 Tt Hex		Appelez-nous	-
761	WD28X10040		Basket Asm - 6 Pc.		Appelez-nous	-
762	WG04F01732		Basket Silverware End   (Replaces: WD28X10038)				$ 82.64
763	WD28X10037		Basket Silverware Middle		Appelez-nous	-
764	WG04L01721		Handle Basket   (Replaces: WD28X10039)				$ 7.20
765	WD28X10042		Lid Basket		Appelez-nous	-
776	WZ05X0222		Scr 10-32 T Hex 7/16 S		Appelez-nous	-
777	WD01X10003		Insulation Tub		Appelez-nous	-
782	WG04F00460		Water Inlet Hose   (Replaces: WD18X202)				$ 14.29
790	WH1X2036		Clamp Hose		Appelez-nous	-
790	WD01X10065		Clamp Hose		Appelez-nous	-
833	WG04A01239		Scr 8-16x2 Ss   (Replaces: WD2X295)				$ 3.97
844	WD08X10010		Trim Tub Flange Bk		Appelez-nous	-
888	WD35X200		Bracket Counter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
