1 - Escutcheon & Door Assembly
2 - Body Parts

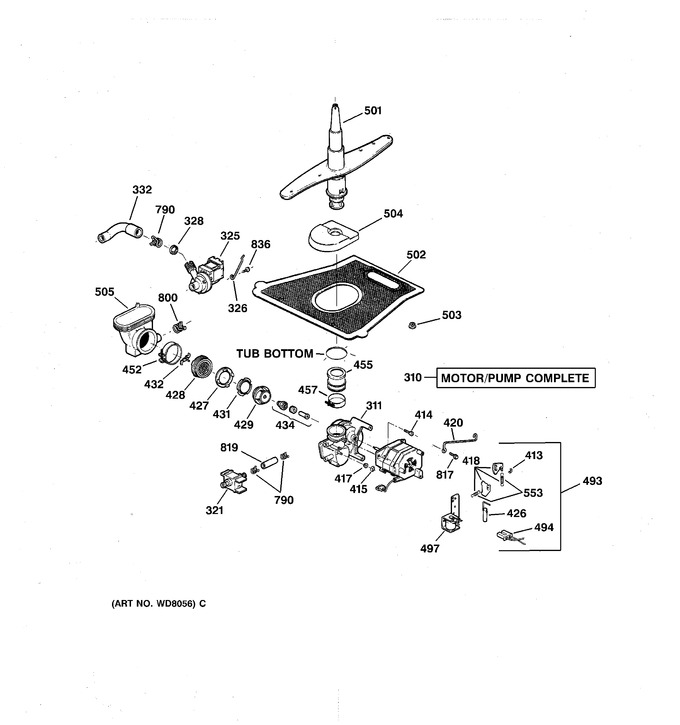

3 - Motor-pump Mechanism
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 310 | WD26X10011 | Mechanism S/s Asm |
|
- | |||||
| 311 | WD19X10021 | Housing Pump Asm |
|
- | |||||
| 321 | WD21X769 | Sensor Turbidity |
|
- | |||||
| 325 | WD19X10015 | Pump |
|
$ 70.65 | |||||
| 326 | WD01X10024 | Hanger Dual Pump |
|
- | |||||
| 328 | WG04F01244 | Valve Flapper (Replaces: WD1X1486) |
|
$ 18.59 | |||||
| 332 | WD24X10006 | Hose Dual Pump |
|
- | |||||
| 413 | WG04F01736 | Ps Retainer (Replaces: WD3X487) |
|
$ 82.95 | |||||
| 414 | WG04A00378 | Screw Mech (Replaces: WD2X444) |
|
$ 3.57 | |||||
| 415 | WD2X429 | Nut Push On |
|
- | |||||
| 417 | WG04L01888 | Gate Shaft Seal (Replaces: WD8X181) |
|
Immediately | $ 20.01 | ||||
| 418 | WG04A00385 | Gate Valve Arm Kit (Replaces: WD35X192) |
|
$ 14.29 | |||||
| 420 | WD1X1482 | Hanger Mech |
|
- | |||||
| 426 | WG02F03627 | Armature Link Assembly (Replaces: WD1X1316) |
|
$ 3.93 | |||||
| 427 | WD12X354 | Wear Ring Base |
|
- | |||||
| 428 | WD12X10018 | Nut Grater |
|
- | |||||
| 429 | WD19X10014 | Impeller Asm |
|
- | |||||
| 431 | WD1X1341 | Wear Ring |
|
- | |||||
| 432 | WD01X10018 | Blade And Shaft |
|
- | |||||
| 434 | WD19X10002 | Pump Seal Asm |
|
- | |||||
| 452 | WG04A00077 | Clamp, Sump (Replaces: WD1X1392) |
|
$ 14.29 | |||||
| 455 | WG04F01561 | Connector Pump Asm (Replaces: WD18X214) |
|
Immediately | $ 55.83 | ||||
| 457 | WD1X1376 | Clamp (pump Connector) |
|
- | |||||
| 493 | WG04F00993 | Kit Solenoid Asm (Replaces: WD21X10060) |
|
Immediately | $ 89.13 | ||||
| 493 | WD21X10057 | Bracket & Solenoid |
|
- | |||||
| 501 | WG04F01015 | Sprayarm Asm (Replaces: WD22X10017) |
|
$ 76.28 | |||||
| 502 | WD22X10019 | Gasket & Filter Asm |
|
- | |||||
| 503 | WG03A00405 | Palnut (Replaces: WD01X10068) |
|
Immediately | $ 4.07 | ||||
| 504 | WD22X10023 | Service Dome,coarse Fltr |
|
- | |||||
| 505 | WD18X215 | Sump Inlet |
|
- | |||||
| 553 | WG02F03593 | Spring Gate Act (Replaces: WD3X721) |
|
$ 46.42 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 790 | WD01X10065 | Clamp Hose |
|
- | |||||
| 800 | WD1X1497 | Clamp Dual Support |
|
- | |||||
| 817 | WD1X550 | Scr 8-32 Pnt 1/2 S |
|
- | |||||
| 817 | WD2X445 | Scr 10-32 T Hex .7 S |
|
- | |||||
| 819 | WD24X10016 | Hose Turbidity |
|
- | |||||
| 836 | WG04A01370 | Scr 8-18 Ab Ihwp 7/8 S (Replaces: WH02X10002) |
|
$ 3.57 |
