SELECT A DIAGRAM

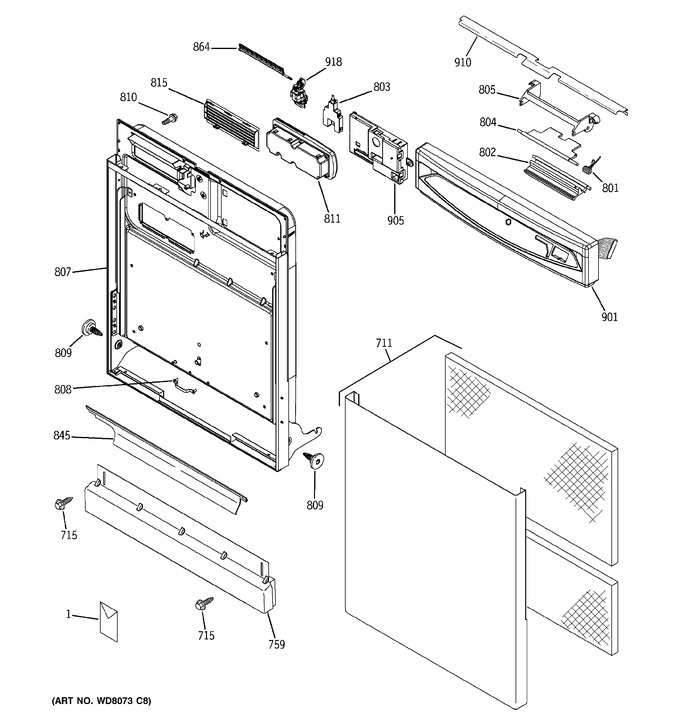

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30365		Pm Sheet Mini Manual		Appelez-nous	-
1	31-30551		Pm Instruction Install		Appelez-nous	-
1	49-5945		Pm Manual Use & Care		Appelez-nous	-
711	WD31X10055		Panel Front Asm		Appelez-nous	-
715	WD02X10086		Scr 8-18 B 1hw 1/2 S N		Appelez-nous	-
759	WD27X10088		Toekick Asm Ct		Appelez-nous	-
801	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
802	WD13X10011		Handle Latch Ct		Appelez-nous	-
803	WD21X10169		Switch Interlock Asm		Appelez-nous	-
804	WG04F00006		Actuator Handle   (Replaces: WD13X10008)			Immediately	$ 85.41
805	WG04L00456		Retainer Handle   (Replaces: WD13X10009)				$ 77.35
807	WD31X10027		Inner Door & Hinge Asm		Appelez-nous	-
808	WD01X10110		Clip Harness		Appelez-nous	-
809	WG04A01243		Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)				$ 3.97
810	WG04A00158		Scr 8-18 Ab Tr 7/8 S   (Replaces: WD02X10099)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10162)			Immediately	$ 171.12
815	WG04F01275		Vent   (Replaces: WD12X10045)				$ 75.03
845	WD08X10019		Seal Short Bot Door		Appelez-nous	-
864	WD12X10068		Flapper Vent		Appelez-nous	-
901	WD34X10601		Escutcheon Keyoad Asm		Appelez-nous	-
905	WD21X10175		Module Control Asm		Appelez-nous	-
910	WD34X10871		Brace Escutcheon		Appelez-nous	-
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95

    View Diagram in Separate Window       Print Part List
