SELECT A DIAGRAM

Diagram for 02 - Cabinet
02 - Cabinet

Diagram for 03 - Refrigerator Liner
03 - Refrigerator Liner

Diagram for 04 - Refrigerator Shelf
04 - Refrigerator Shelf

Diagram for 05 - Freezer Liner
05 - Freezer Liner

Diagram for 06 - Motor And Ice Container
06 - Motor And Ice Container

Diagram for 07 - Refrigerator Door
07 - Refrigerator Door

Diagram for 08 - Freezer Door
08 - Freezer Door

Diagram for 09 - Dispenser Front
09 - Dispenser Front

Diagram for 10 - Unit
10 - Unit

Diagram for 11 - Air Flow
11 - Air Flow

Diagram for 12 - Control
12 - Control

Diagram for 13 - Ice Maker, Lit/optional
13 - Ice Maker, Lit/optional


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1115273 Refrigerator Door (also Order Item 18) Appelez-nous -
3 2148847 Door, Compartment Appelez-nous -
4 1118208 Trim, Compartment Door Appelez-nous -
5 WPW10141645 Screw, 8 X 1/2 (4)   (Replaces: 489084) Special Order $ 8.05

6 1124846 Shelf Bin (2) Special Order $ 39.62

7 1119361 Insert, Handle Appelez-nous -
8 2188404A Door Gasket, Magnetic   (Replaces: 1125927) Special Order $ 269.26

9 509929 Cap, Hinge Sleeve Appelez-nous -
10 1124713 Handle, Center Appelez-nous -
11 941242 Screw Anchor (2) Appelez-nous -
12 1119359 End Cap, Center Handle Appelez-nous -
13 935075 Shim Appelez-nous -
14 2152335 Divider, Bin Appelez-nous -
16 1119367 Insert, Handle Appelez-nous -
17 1129278 Panel, Interior Door Appelez-nous -
18 876029 Foam Insulation (required When Replacing Exterior Door Panel) Appelez-nous -
19 WP489069 Screw, 7 X 1/2 (30)   (Replaces: 489101) In-Stock Immediately $ 8.40

19 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 8.05

20 4318165 Door Closer, Upper Cam   (Replaces: 986758) In-Stock Immediately $ 29.74

21 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96

22 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

23 988420 Bracket, Door Stop Appelez-nous -
26 988402 Tap Plate Appelez-nous -
27 1119360 Retainer, Insert (bottom) Appelez-nous -
28 1119366 Retainer, Insert Appelez-nous -
29 2156220 End Cap (2) Appelez-nous -
30 489075 Screw, 10-32 X 5/8 (2) Appelez-nous -
31 1119061 Trim, Door Appelez-nous -
33 1118048 Pin Plate (6) Appelez-nous -
34 1116986 Pin Plate (8) Special Order $ 12.10

35 1124847 Shelf Bin (2) Appelez-nous -
36 489022 Screw, 6-20 X 3/8 (4) Appelez-nous -
37 1115379 Door Dike, Hinge Side Appelez-nous -
38 1119055 Door Dike, Handle Side Appelez-nous -
39 1117766 Gasket Retainer, Side (2) Special Order $ 36.55

40 1118301 Gasket Retainer, Top & Bottom Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

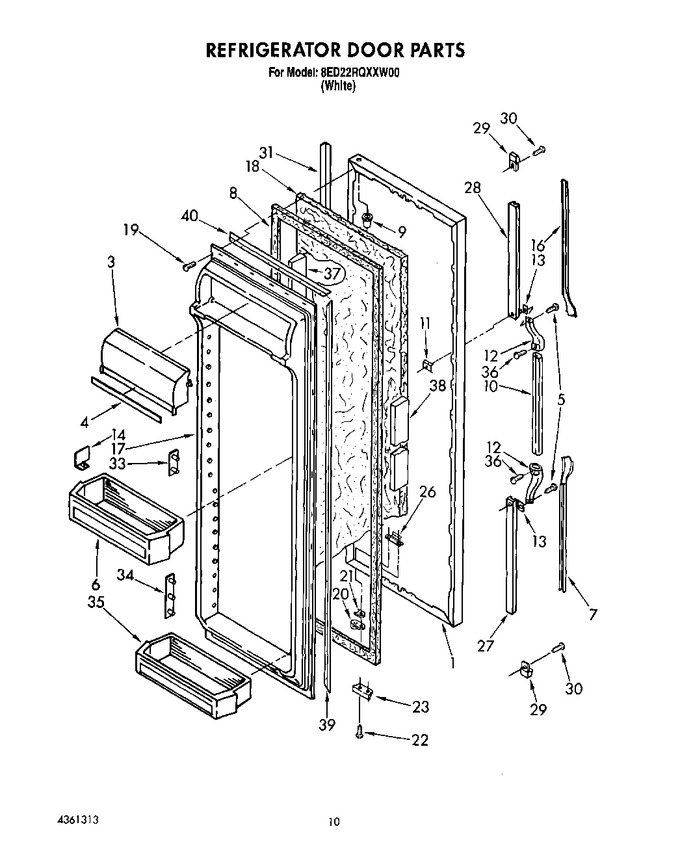

Diagram for 8ED22RQXXW00
