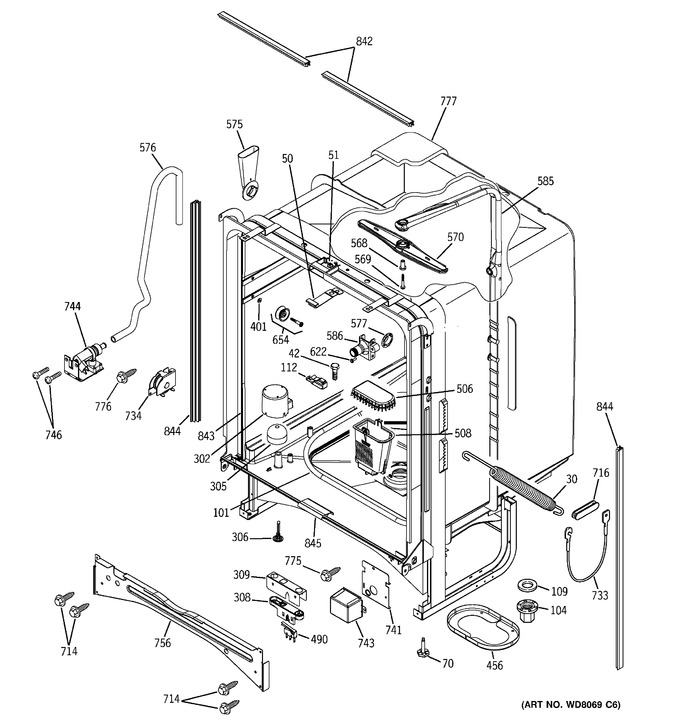

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	WD03X10014		Spring		Appelez-nous	-
42	WZ04X0376		Scr 10-16x3/4 #8 Hx Sstl		Appelez-nous	-
50	WG04F04691		Keeper Latch Asm   (Replaces: WD13X10006)				$ 15.26
51	WD02X10066		Scr 10-24x1/2 Tt Trr S		Appelez-nous	-
70	WG04A00321		Screw Level   (Replaces: WD2X320)				$ 14.29
101	WD05X10005		Element Heating Asm		Appelez-nous	-
104	WD01X10097		Nut Tower Heater		Appelez-nous	-
109	WG04F00473		Grommet Heater   (Replaces: WD01X10094)				$ 21.44
112	WD01X10098		Support Heater		Appelez-nous	-
302	WG04F00292		Dome Float   (Replaces: WD12X10051)				$ 53.80
305	WG04F00449		Float   (Replaces: WD12X10047)				$ 51.53
306	WG04F01021		Stem Float   (Replaces: WD12X10048)				$ 80.96
308	WD12X10043		Housing Flood Switch		Appelez-nous	-
309	WD12X10058		Shield Flood Sw		Appelez-nous	-
401	WD3X767		Washer St Stl		Appelez-nous	-
456	WD01X10106		Ring Sump		Appelez-nous	-
490	WD21X10119		Switch Flood		Appelez-nous	-
506	WG04L01684		Cover Inlet   (Replaces: WD12X10049)			Immediately	$ 122.34
508	WG04L01684		Filter Sump   (Replaces: WD22X10028)			Immediately	$ 122.34
568	WG04A01025		Bearing Spray Arm Up   (Replaces: WD01X10102)				$ 3.57
569	WG04A01240		Scr 8-16 B Hxw 1.08 Ss   (Replaces: WD02X10068)				$ 5.72
570	WG04A01288		Arm Spray Upper Asm   (Replaces: WD22X10027)				$ 5.45
575	WD12X10056		Funnel Fill				$ 5.75
576	WG04F00504		Hose Fill   (Replaces: WD24X10019)				$ 10.01
577	WG04L00197		Gasket Funnel Fill   (Replaces: WD08X10020)			Immediately	$ 3.57
585	WD12X10057		Conduit Main		Appelez-nous	-
586	WD12X10059		Cone Docking		Appelez-nous	-
622	WG04A00176		Scr 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.57
654	WD12X332		Roller Stud Asm				$ 4.88
714	WD02X10083		Scr 8-18 B Hxw .480 S		Appelez-nous	-
716	WG04L00677		Link Hinge Arm   (Replaces: WD14X10009)			Immediately	$ 5.72
733	WD01X10099		Cable Pulley Asm		Appelez-nous	-
734	WD16X10009		Pulley Bracket Asm		Appelez-nous	-
741	WD12X10055		Bracket J Box Asm		Appelez-nous	-
743	WG02L01023		Cover Juction Box   (Replaces: WD12X448)				$ 18.59
744	WG04F01376		Water Valve Inlet   (Replaces: WD15X10003)			Immediately	$ 126.19
746	WD2X248		Scr 10-24x3/8 Tt Hex		Appelez-nous	-
756	WD34X10568		Brace Toekick Ct		Appelez-nous	-
775	WD2X5166		Scr 10-16x1/2 Ab Hxw S		Appelez-nous	-
776	WZ05X0222		Scr 10-32 T Hex 7/16 S		Appelez-nous	-
777	WD01X10089		Insulation Tub Blanket		Appelez-nous	-
842	WD08X10025		Trim Tub Flange Ct		Appelez-nous	-
843	WG04L00214		Gasket Tub   (Replaces: WD08X10018)			Immediately	$ 65.23
844	WD08X10026		Trim Tub Flange Ct		Appelez-nous	-
845	WD08X10019		Seal Short Bot Door		Appelez-nous	-
