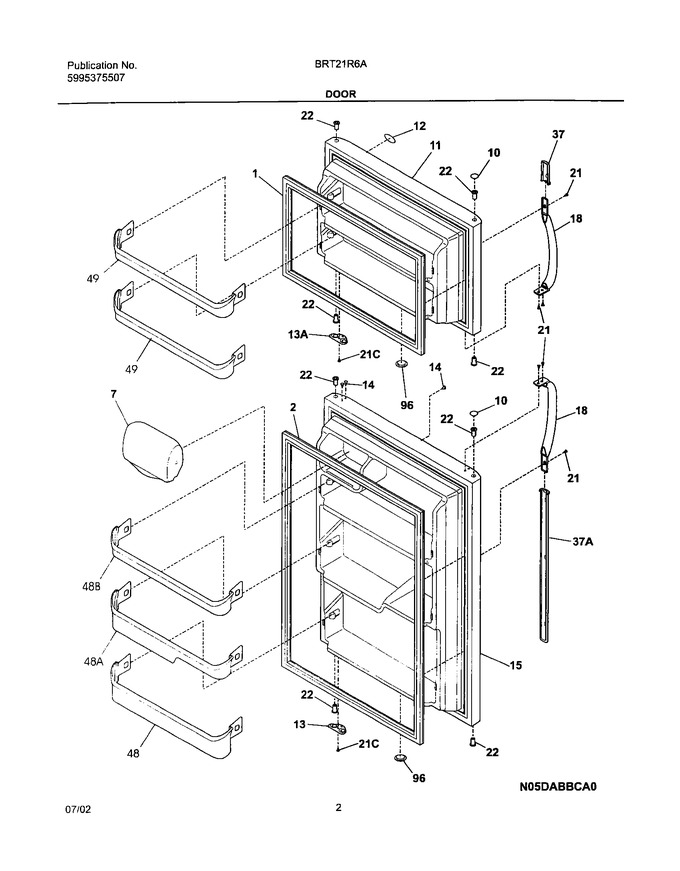

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 40.45
10	240381303		Plug-button,black ,hinge Brg Hole				$ 77.52
11	240450326		Door-frzr,black ,complete Assy		Appelez-nous	-
12	240520101		Label-nameplate,white				$ 34.94
13	240312422		Door Stop,black ,ref   (Replaces: 240312405)				$ 16.85
14	240494003		Plug-button,black				$ 20.22
15	240450432		Door-refr,black ,complete Assy		Appelez-nous	-
18	218668003		Handle-door, Black				$ 77.18
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 21.37
22	5304507147		Bearing-hinge,black ,(8)   (Replaces: 240311202)			Immediately	$ 8.43
37	215870636		Trim-handle,2.47`` ,black ,w/satin Al Band				$ 76.91
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 58.19
49	240495804		Bin-door,pseudo ,frzr   (Replaces: 240495801)			Immediately	$ 48.10
96	240345506		Plug,door Foam Hole ,black				$ 51.87
13A	240312415		Door Stop,black ,frzr   (Replaces: 240312406)				$ 23.63
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 15.75
37A	240468402		Trim-handle,26.84`` ,black ,lower		Appelez-nous	-
48A	240337901		Bin-door,refr			Immediately	$ 57.92
48B	240338001		Bin-door,pseudo ,gallon ,refr			Immediately	$ 38.84
F1	242193211		Gasket,frzr Door Seal ,black ,magnetic   (Replaces: 240514611)				$ 207.90
F2	241872512		Gasket,refr Door Seal ,black ,magnetic   (Replaces: 240514612)			Immediately	$ 183.77
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
