1 - Escutcheon & Door Assembly
2 - Escutcheon & Door Assembly
3 - Body Parts

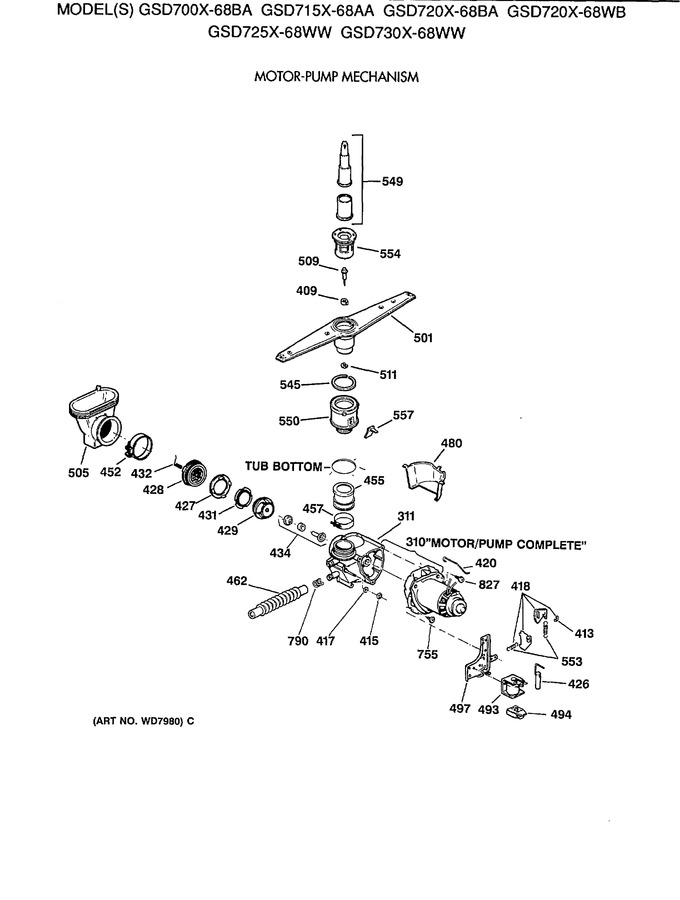

4 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 311 | WG04F00655 | Housing Pump Asm (Replaces: WD19X57) |
|
Immediately | $ 273.84 | ||||
| 409 | WD3X766 | Thrust Washer |
|
- | |||||
| 413 | WG04F01736 | Ps Retainer (Replaces: WD3X487) |
|
$ 92.17 | |||||
| 415 | WD2X429 | Nut Push On |
|
- | |||||
| 417 | WG04L01888 | Gate Shaft Seal (Replaces: WD8X181) |
|
Immediately | $ 22.23 | ||||
| 418 | WG04A00385 | Gate Valve Arm Kit (Replaces: WD35X192) |
|
$ 15.88 | |||||
| 420 | WD1X1455 | Hanger Mech |
|
- | |||||
| 426 | WG02F03627 | Armature & Link Assembly (Replaces: WD1X1316) |
|
$ 4.37 | |||||
| 427 | WD12X354 | Wear Ring Base |
|
- | |||||
| 428 | WD12X378 | Grader / Nut |
|
- | |||||
| 429 | WD19X60 | Impeller Asm |
|
- | |||||
| 431 | WD1X1341 | Wear Ring |
|
- | |||||
| 432 | WD1X1487 | Spring Cutter |
|
- | |||||
| 434 | WD19X58 | Pump Seal Asm |
|
- | |||||
| 452 | WG04A00077 | Clamp, Sump (Replaces: WD1X1392) |
|
$ 15.88 | |||||
| 455 | WG04F01561 | Connector Pump Asm (Replaces: WD18X214) |
|
Immediately | $ 62.03 | ||||
| 457 | WD1X1376 | Clamp (pump Connector) |
|
- | |||||
| 462 | WD24X219 | Drain Tube Asm |
|
- | |||||
| 480 | WD12X339 | Guard |
|
- | |||||
| 493 | WD21X710 | Solenoid |
|
- | |||||
| 494 | WD1X1459 | Insulator Hsng Term |
|
- | |||||
| 497 | WD1X1439 | Bracket Solenoid |
|
- | |||||
| 501 | WG03F00845 | Spray Arm & Shield Asm (Replaces: WD22X141) |
|
$ 69.95 | |||||
| 505 | WG04F00552 | Sump Inlet (Replaces: WD18X213) |
|
Immediately | $ 72.49 | ||||
| 509 | WD2X439 | Screw Spray Arm |
|
- | |||||
| 511 | WD2X438 | E Ring |
|
- | |||||
| 545 | WD22X143 | Ring Seal |
|
- | |||||
| 549 | WG03F00845 | Tower Asm (Replaces: WD22X148) |
|
$ 69.95 | |||||
| 550 | WG03F00845 | Support Asm (Replaces: WD22X142) |
|
$ 69.95 | |||||
| 553 | WG02F03593 | Spring Set (Replaces: WD3X721) |
|
$ 46.42 | |||||
| 554 | WD22X140 | Nut Tower |
|
- | |||||
| 557 | WG04F04521 | Check Valve (Replaces: WD1X5488) |
|
Immediately | $ 4.04 | ||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 827 | WD2X425 | Scr 10-12x1/2 Ac Pnr S |
|
- |
