Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1110652 Freezer, Door Panel (white) Appelez-nous -
1 1110655 Freezer, Door Panel (almond (also Order Item 11)) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 1124713 Handle, Center (white) Appelez-nous -
3 943079 Handle, Center (almond) Appelez-nous -
4 939886 Seal, Hinge Pin Appelez-nous -
5 1119359 End Cap (2) Appelez-nous -
6 WPW10141645 Screw, 8 X 1/2 (4)   (Replaces: 489084) Special Order $ 8.05

7 935075 Shim, End Cap (2) Appelez-nous -
8 1123293 Divider, Shelf Appelez-nous -
9 1124854 Shelf Bin (3) Appelez-nous -
10 1125928 Door Gasket, Magnetic Appelez-nous -
10 1127308 Door Gasket, Magnetic (for Almond Model) Appelez-nous -
11 876029 Foam Insulation Appelez-nous -
12 941242 Screw Anchor (2) Appelez-nous -
13 2150325 Panel, Interior Door Appelez-nous -
14 1124851 Trim, Door Shelf Appelez-nous -
15 WP489069 Screw, 7 X 1/2 (28)   (Replaces: 489101) In-Stock Immediately $ 8.40

15 WPW10141645 Screw (repair)   (Replaces: 489084) Special Order $ 8.05

16 1124852 Trim, Door Shelf Appelez-nous -
17 1119212 Harness, Door (includes Item 18) Appelez-nous -
18 936183 Connector, Plug Appelez-nous -
19 WP488234 Screw, 8-32 X 5/32   (Replaces: 488889) Special Order $ 7.08

20 1119060 Tube, Door Wiring Appelez-nous -
21 227991 Wire Connector Appelez-nous -
22 1119038 Insulation, Dispenser Appelez-nous -
23 1119036 Chute, Ice Appelez-nous -
24 2165022 Door Heater Appelez-nous -
25 2147080 Tube, Door Wiring Appelez-nous -
26 4318165 Door Closer, Upper Cam   (Replaces: 986758) In-Stock Immediately $ 29.74

27 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96

28 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

29 988420 Bracket, Door Stop Appelez-nous -
30 939143 Wiring Protector Appelez-nous -
31 WP489069 Screw, 8 X 5/8   (Replaces: 488938) In-Stock Immediately $ 8.40

32 1119360 Retainer, Insert Appelez-nous -
33 1119363 Insert, Handle (almond) Appelez-nous -
33 1119361 Insert, Handle (white) Appelez-nous -
34 1119373 Insert, Handle (white) Appelez-nous -
34 1119375 Insert, Handle (almond) Appelez-nous -
35 1119372 Retainer, Insert Appelez-nous -
36 2156220 End Cap (2) Appelez-nous -
37 489075 Screw, 10-32 X 5/8 (2) Appelez-nous -
39 1115333 End Cap, Trim Appelez-nous -
40 1115364 End Cap, Trim Appelez-nous -
42 1116986 Pin Plate (6) Special Order $ 12.10

43 489022 Screw, 6-20 X 3/8 (4) Appelez-nous -
44 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.88

45 1115378 Door Dike (2) Appelez-nous -
46 1118306 Gasket Retainer, Top & Bottom Appelez-nous -
47 1118302 Gasket Retainer, Side (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

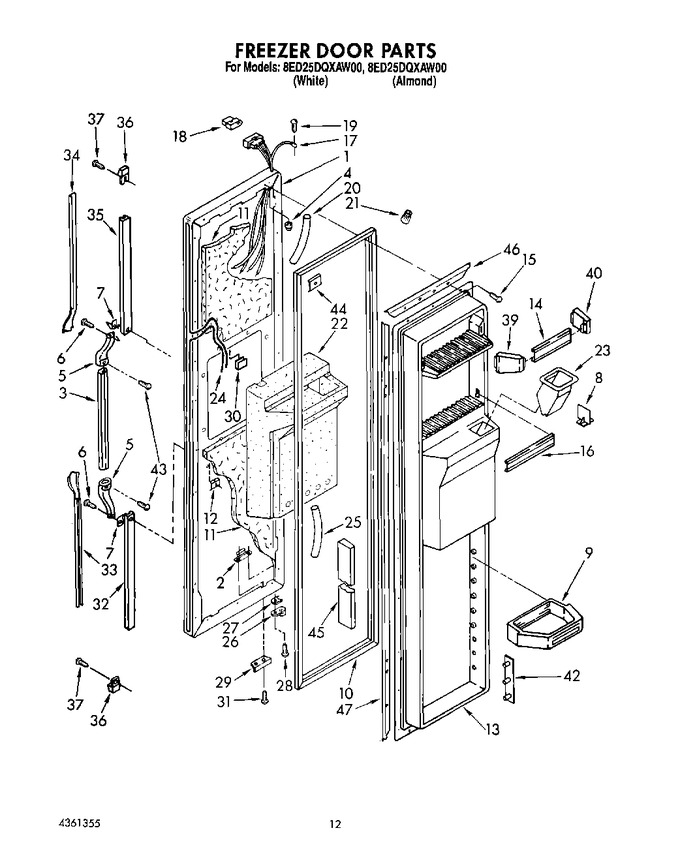

Diagram for 8ED25DQXAW00
