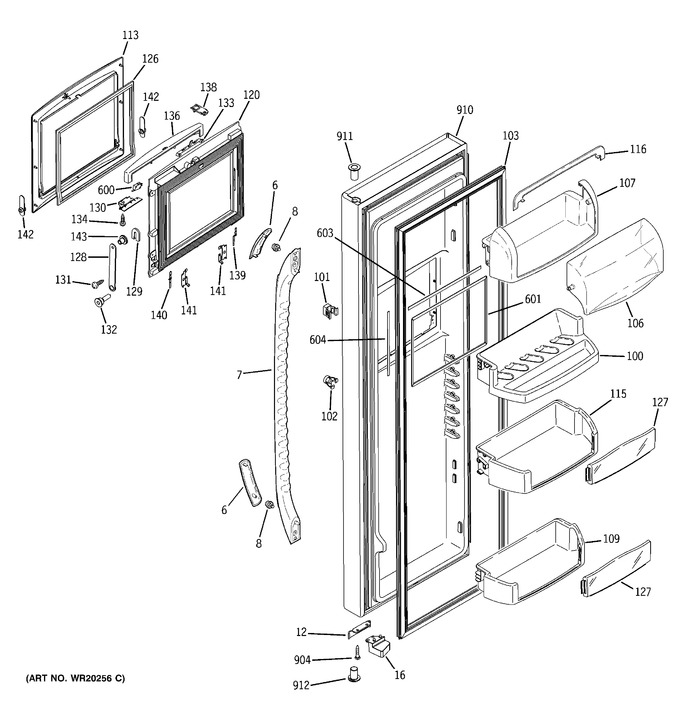

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10817		Cap Handle Bb		Appelez-nous	-
7	WR12X10812		Handle Sxs Door Bk		Appelez-nous	-
8	WR02X12255		Scr 5/16-18 Rnp		Appelez-nous	-
12	WR01A01018		Stop Door Black   (Replaces: WR02X10782)				$ 35.73
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 32.88
100	WR17X10933		Rack Beverage		Appelez-nous	-
101	WR02X10040		Fastener Rectangular		Appelez-nous	-
102	WR02X12272		Fastener Tubular		Appelez-nous	-
103	WR24X10157		Gasket Door Ff Bk**		Appelez-nous	-
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 54.95
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10605)				$ 34.93
113	WR38X10232		Trim Assy Cmk Black		Appelez-nous	-
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10607)			Immediately	$ 59.15
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
120	WR17X11292		Door Foam Asm Cmk Bk		Appelez-nous	-
126	WR24X10073		Wr24x10085		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10761)			Immediately	$ 61.39
128	WR13X10005		Hinge Arm Assy Cmk		Appelez-nous	-
129	WR02X10035		Cap Hinge Arm		Appelez-nous	-
130	WR02X10032		Bracket Switch Cmk		Appelez-nous	-
131	WR1X1707		Scr 10-24 Tx 11/16		Appelez-nous	-
132	WR02X10037		Stop Hinge Arm		Appelez-nous	-
133	WR02X10033		Trigger Cmk Door		Appelez-nous	-
134	WR01X10616		Scr 6-10 Pl Flp 1/2 S		Appelez-nous	-
136	WR12X10438		Handle Cmk Door Black		Appelez-nous	-
138	WR02X10840		Latch Cmk Door		Appelez-nous	-
139	WR02X10659		Spring Leaf Lh		Appelez-nous	-
140	WR02X10660		Spring Leaf Rh		Appelez-nous	-
141	WR02X10652		Bracket Retainer Rh		Appelez-nous	-
141	WR02X10651		Bracket Retainer Lh		Appelez-nous	-
142	WR02X10045		Bushing Cmk Door Black		Appelez-nous	-
143	WR02X10041		Stud Hinge Arm		Appelez-nous	-
600	WR23X10027		Micro Switch		Appelez-nous	-
601	WR02X11459		Trim Inner Door Cmk		Appelez-nous	-
603	WR02X11483		Tape Foam Large		Appelez-nous	-
604	WR02X11484		Tape Foam Short		Appelez-nous	-
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X12033		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10233		Thimble Door Top Black		Appelez-nous	-
912	WR01X10232		Thimble Door Bot Black		Appelez-nous	-
