Diagram # Part Number Description Series Availability Ships Price Add to Cart
6 WR01L00575 Cap Handle Ww   (Replaces: WR12X10816) Special Order $ 9.25

7 WR12X10811 Handle Sxs Door Wh Appelez-nous -
8 WR02X12255 Scr 5/16-18 Rnp Appelez-nous -
12 WR02X10690 Stop Door White Appelez-nous -
16 WR02X10637 Cam Closure Ff White Appelez-nous -
100 WR17X10933 Rack Beverage Appelez-nous -
101 WR02X10040 Fastener Rectangular Appelez-nous -
102 WR02X12272 Fastener Tubular Appelez-nous -
103 WR24X10155 Gasket Door Ff Wh Appelez-nous -
106 WR01L01269 Door Dairy Clear   (Replaces: WR22X10042) Special Order $ 54.95

107 WR22X10041 Compartment Dairy Appelez-nous -
109 WR01L02880 Module Shelf Ff   (Replaces: WR71X10605) Special Order $ 34.93

113 WR38X10215 Trim Assy Cmk White Appelez-nous -
115 WR01L00078 Module Shelf Ff   (Replaces: WR71X10607) In-Stock Immediately $ 59.15

116 WR22X10043 Trim Dairy Compartment Appelez-nous -
120 WR17X11291 Door Foam Asm Cmk Wh Appelez-nous -
126 WR24X10073 Wr24x10085 Appelez-nous -
127 WR01L04630 Insert Module   (Replaces: WR71X10761) In-Stock Immediately $ 61.39

128 WR13X10005 Hinge Arm Assy Cmk Appelez-nous -
129 WR02X10035 Cap Hinge Arm Appelez-nous -
130 WR02X10032 Bracket Switch Cmk Appelez-nous -
131 WR1X1707 Scr 10-24 Tx 11/16 Appelez-nous -
132 WR02X10037 Stop Hinge Arm Appelez-nous -
133 WR02X10033 Trigger Cmk Door Appelez-nous -
134 WR01X10616 Scr 6-10 Pl Flp 1/2 S Appelez-nous -
136 WR12X10404 Handle Cmk Door Appelez-nous -
138 WR02X10840 Latch Cmk Door Appelez-nous -
139 WR02X10659 Spring Leaf Lh Appelez-nous -
140 WR02X10660 Spring Leaf Rh Appelez-nous -
141 WR02X10652 Bracket Retainer Rh Appelez-nous -
141 WR02X10651 Bracket Retainer Lh Appelez-nous -
142 WR02X10036 Bushing Cmk Door Appelez-nous -
143 WR02X10041 Stud Hinge Arm Appelez-nous -
600 WR23X10027 Micro Switch Appelez-nous -
601 WR02X11459 Trim Inner Door Cmk Appelez-nous -
603 WR02X11483 Tape Foam Large Appelez-nous -
604 WR02X11484 Tape Foam Short Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
910 WR78X12032 Door Foam Asm Ff Appelez-nous -
911 WR01X10207 Thimble Door Top White Appelez-nous -
912 WR01X10206 Thimble Door Bot White Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

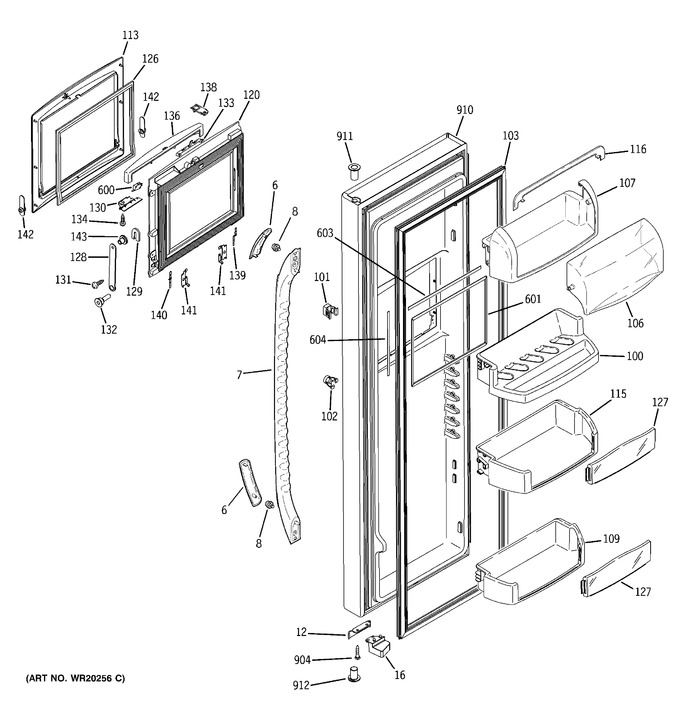

Diagram for GSF26KHWAWW
