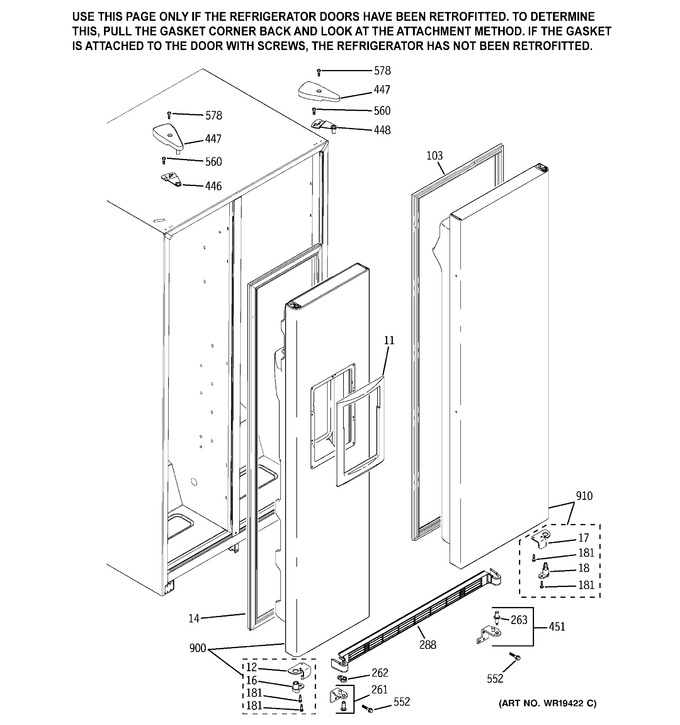

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR38X10204		Trim Recess Disp Wh		Appelez-nous	-
12	WR02X10576		Plate Door Stop Fz Wh		Appelez-nous	-
14	WR24X10053		Gasket Door Fz Wh		Appelez-nous	-
16	WR02X11284		Cam & Thimble		Appelez-nous	-
17	WR02X10575		Plate Door Stop Ff Wh		Appelez-nous	-
18	WR02X11285		Cam & Thimble		Appelez-nous	-
103	WR24X10054		Gasket Door Ff Wh		Appelez-nous	-
181	WR01X10215		Scr 10-32 Tt Hxw 3/4 S		Appelez-nous	-
261	WR01X10202		Thrust Washer		Appelez-nous	-
261	WR13X10120		Hinge Btm Pin & Cam Asm		Appelez-nous	-
262	WR02X11286		Hinge Cam Riser		Appelez-nous	-
263	WR02X10592		Pin Hinge Btm Adj		Appelez-nous	-
288	WR74X10054		Grille Base Asm Wh		Appelez-nous	-
446	WR13X10157		Hinge Top Asm Fz		Appelez-nous	-
447	WR02X10555		Cover Hinge Wh		Appelez-nous	-
448	WR13X10156		Hinge Top Asm Ff		Appelez-nous	-
451	WR13X10154		Hinge Btm & Pin Asm		Appelez-nous	-
552	WR01X10034		Scr 12-24 Tt Ih .811 S		Appelez-nous	-
560	WR01X10195		Scr 12-24 Ca Hx 7/8 S		Appelez-nous	-
578	WZ02X0503		Scr 8-32 Ma Pa 3/8 S		Appelez-nous	-
900	WR78X10398		Door Foam Asm Fz Wh		Appelez-nous	-
910	WR78X10337		Door Foam Asm Ff Wh		Appelez-nous	-
