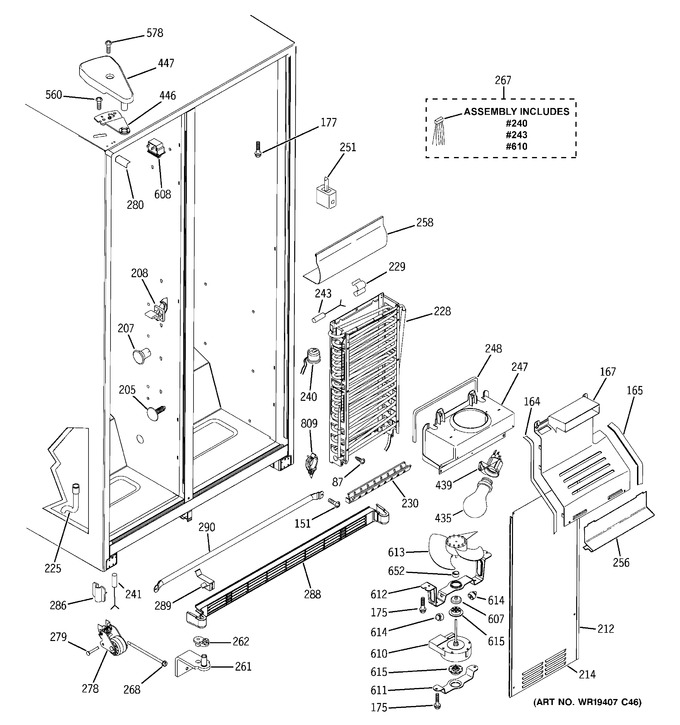

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 87 | WZ04X0241 | Scr 8-18 Ab Pa 1/2 Ss |
|
- | |||||
| 151 | WR1X1554 | Scr 8-18 Ab Ihxw 1/2 S |
|
- | |||||
| 164 | WR14X10049 | Gasket Duct Fz |
|
- | |||||
| 165 | WR14X10048 | Gasket Duct Fz |
|
- | |||||
| 167 | WR17X11063 | Duct Air Fz |
|
- | |||||
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 177 | WR1X5034 | Screw 8-18 A Hx 1/2 S |
|
- | |||||
| 205 | WR01X10318 | Push Fastener |
|
- | |||||
| 207 | WR2X4676 | Grommet Shelf |
|
- | |||||
| 208 | WG03A01444 | Support Fz (Replaces: WR02X11561) |
|
$ 4.78 | |||||
| 212 | WG03L01325 | Gasket Cover Evap (Replaces: WR14X10054) |
|
$ 13.90 | |||||
| 214 | WR17X11147 | Cover Evap |
|
- | |||||
| 225 | WR02X11476 | Tube Drain |
|
- | |||||
| 228 | WR85X10023 | Low Side Asm |
|
- | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 230 | WR51X10053 | Heater & Bracket Asm |
|
- | |||||
| 240 | WR50X10015 | Thermostat Defrost |
|
- | |||||
| 241 | WR50X10027 | Sensor Temp |
|
- | |||||
| 243 | WR55X10380 | Sensor Temperature |
|
- | |||||
| 247 | WR17X11626 | Orifice Evap Fan |
|
- | |||||
| 248 | WR14X10050 | Gasket Foam |
|
- | |||||
| 251 | WR02X10632 | Twist Support |
|
- | |||||
| 256 | WR17X10780 | Duct Air |
|
- | |||||
| 258 | WR17X10765 | Shield Light Fz |
|
- | |||||
| 261 | WR13X10313 | Fz Hinge Btm & Pin Asm |
|
- | |||||
| 262 | WR02X11743 | Hinge Cam Riser |
|
- | |||||
| 267 | WR23X10350 | Harness Fz Fan Htr |
|
- | |||||
| 268 | WR01X10199 | Screw Mobility |
|
- | |||||
| 278 | WR02X10572 | Mobility Front Asm |
|
- | |||||
| 279 | WR02X10574 | Pin Pivot Asm |
|
- | |||||
| 280 | WR02X10549 | Cap Corner Oc Wh |
|
- | |||||
| 286 | WR17X10728 | Thermistor Cover Fz |
|
- | |||||
| 288 | WR74X10147 | Grille Base Asm Wh |
|
- | |||||
| 289 | WR02X10560 | Clip Grille |
|
- | |||||
| 290 | WR17X11430 | Bar Curb Handling |
|
- | |||||
| 435 | 60A | Lamp 60w Appl |
|
- | |||||
| 439 | WG03F01610 | Socket & Terminal (Replaces: WR02X10591) |
|
$ 12.71 | |||||
| 446 | WR13X10286 | Hinge Top & Pin Asm Fz |
|
- | |||||
| 447 | WR02X11623 | Cvr Hng Wht |
|
- | |||||
| 560 | WR01X10195 | Scr 12-24 Ca Hx 7/8 S |
|
- | |||||
| 578 | WR01F03225 | Screw Hinge Cover (Replaces: WR01X10379) |
|
$ 3.97 | |||||
| 607 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 608 | WG03F05844 | Switch Light (Replaces: WR23X10161) |
|
Immediately | $ 65.21 | ||||
| 610 | WR60X10068 | Motor Dc Evap Fan |
|
- | |||||
| 611 | WR02X11622 | Bracket Evap Fan Btm |
|
- | |||||
| 612 | WR02X11124 | Bracket Evap Fan Top |
|
- | |||||
| 613 | WR60X10075 | Blade Evap Fan Asm |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 615 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 652 | WR02X10509 | Ring Compression |
|
- | |||||
| 809 | WR1X1936 | Fastener Water Tube |
|
$ 7.35 |
